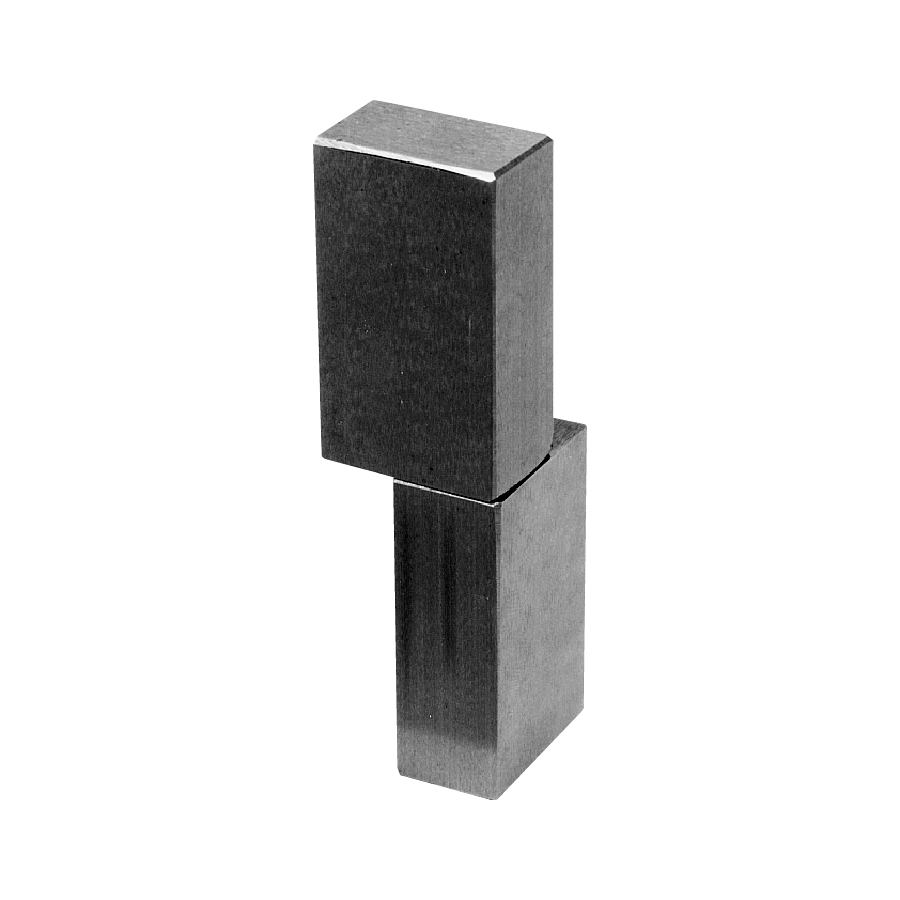

Large - 100 mm hinge (Top)
Medium - 76mm hinge (Middle)
Small - 60mm hinge (Bottom)
Ordering Code
| 9/01289 | Stainless block hinge, 60 mm |
| 9/01290 | Stainless block hinge, 76 mm |
| 9/01291 | Stainless block hinge, 100 mm |

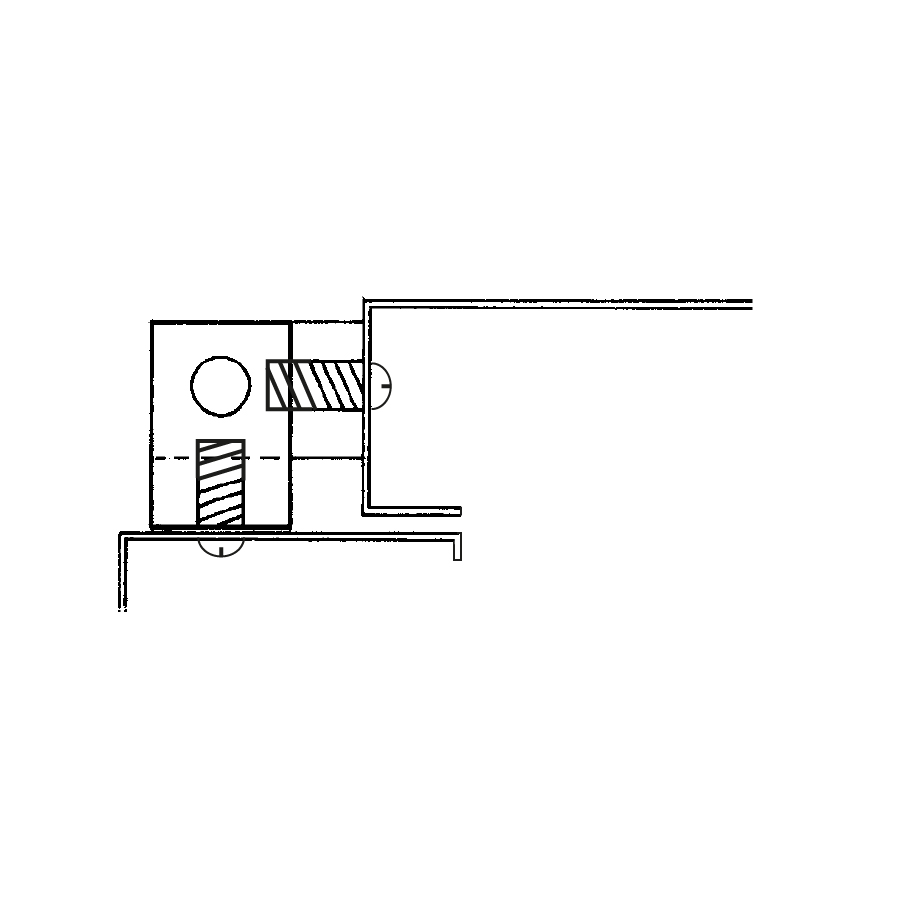

Fitting and operation of ‘block’ hinges on externally mounted doors.
Specification

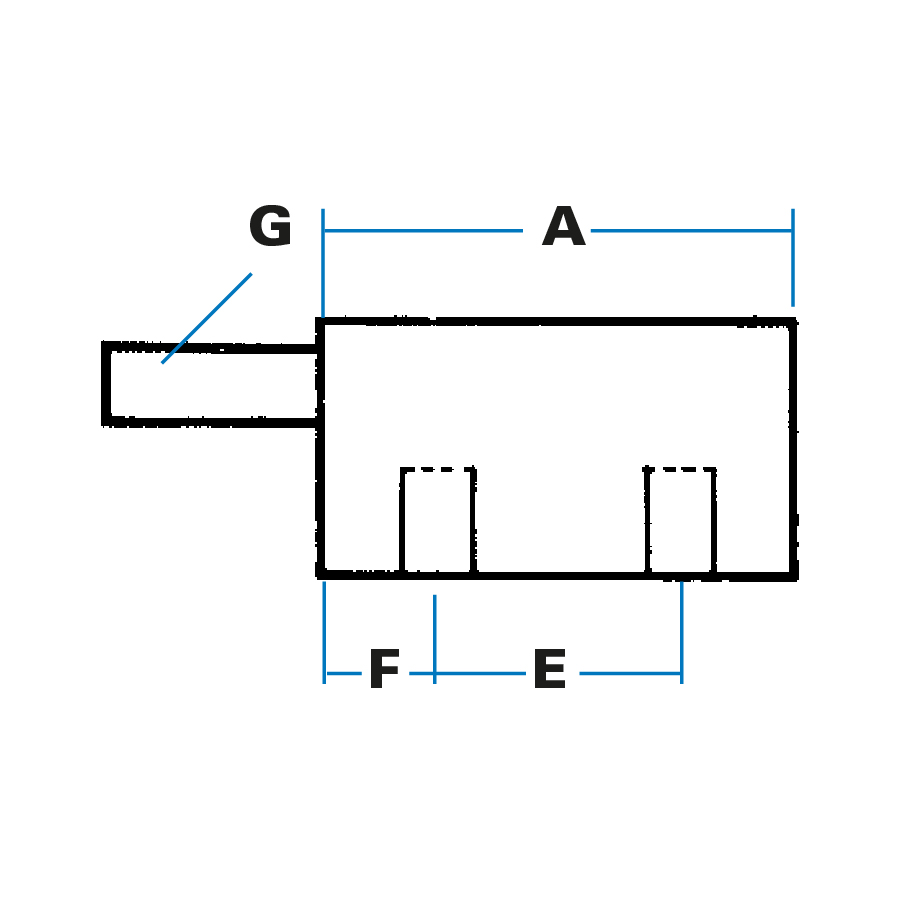

| 60 mm | 76 mm | 100 mm | ||
| A | Length (half) | 32 mm | 38 mm | 50 mm |
| B | Width | 13 mm | 13 mm | 18 mm |
| C | Height | 16 mm | 19 mm | 29 mm |
| D | Height to pin | 9.5 mm | 13 mm | 20 mm |
| E | Location | 16 mm | 19 mm | 25 mm |
| F | Location | 8 mm | 9 mm | 13 mm |
| G | Pin diameter | 6 mm | 6 mm | 8 mm |
| H | Hole sizes | 6 mm x M5 | 7.5 mm x M6 | 13 mm x M8 |

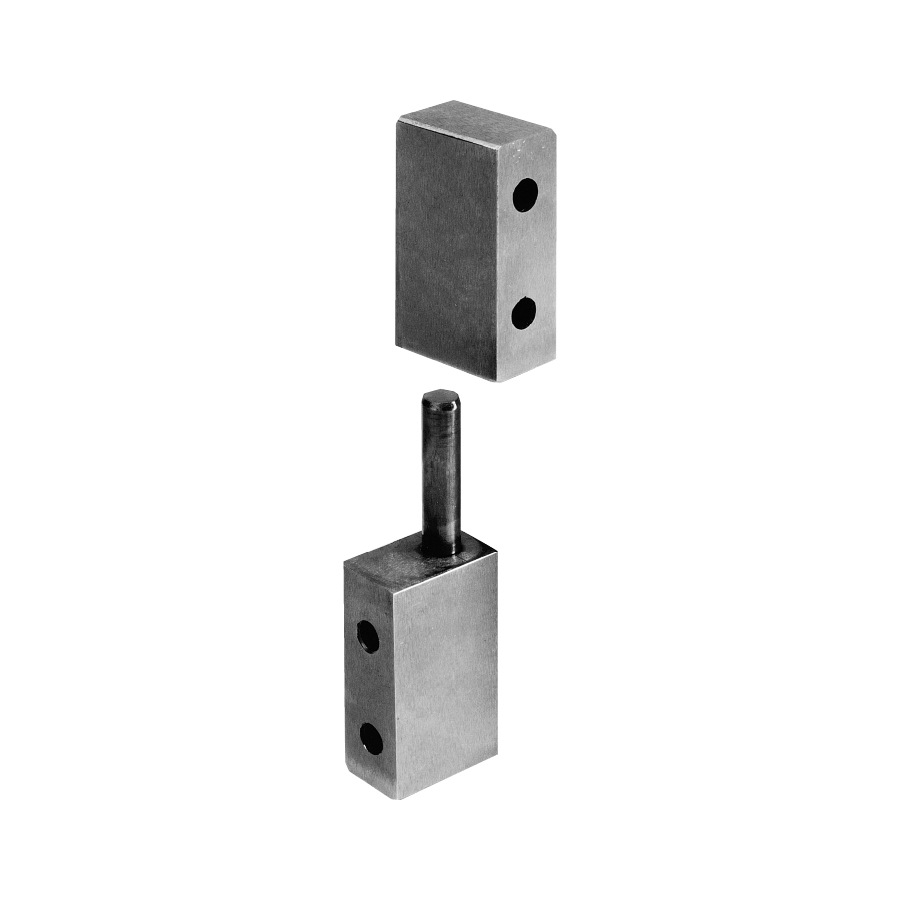

- Bottom half of hinge contains a fixed stainless pin and is fitted to door frame. Top half is fitted to door edge and is lifted on (and off) pin. Movement is completely free.
- Ground, satin finish with chamfered edges. Bright-polished to special order.
- Plant-on fitting, with tapped holes in base.
- Stainless steel to Grade 303 throughout.
