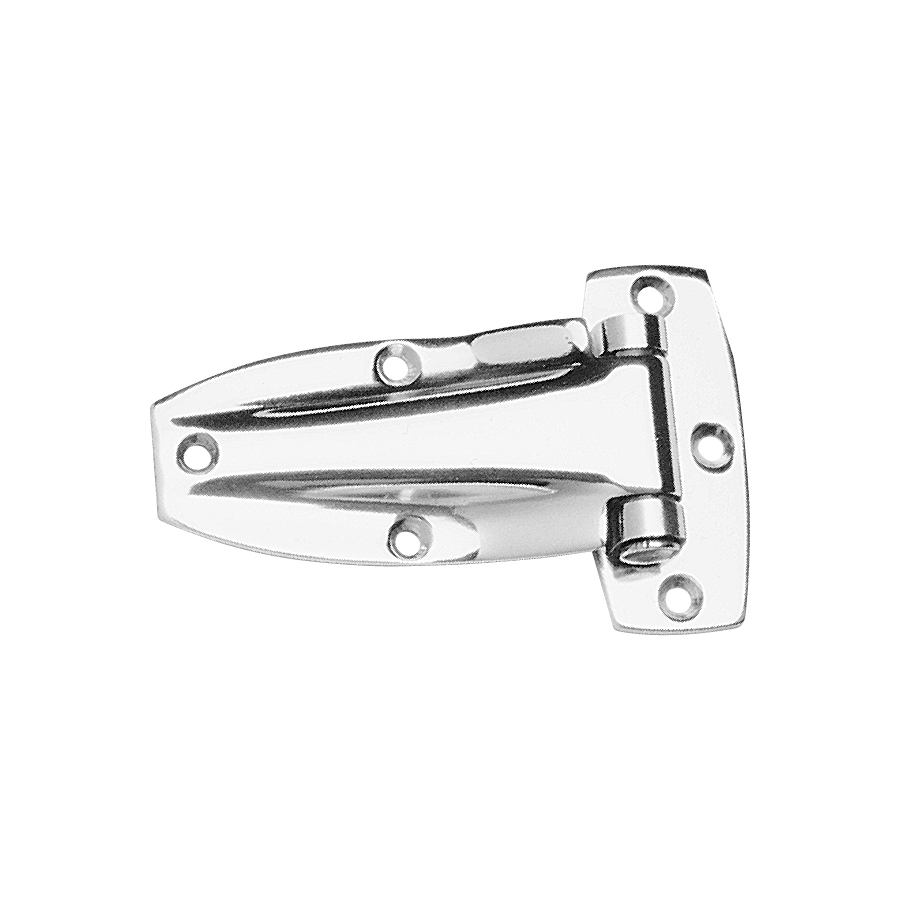

9/01780-1 - (120mm)

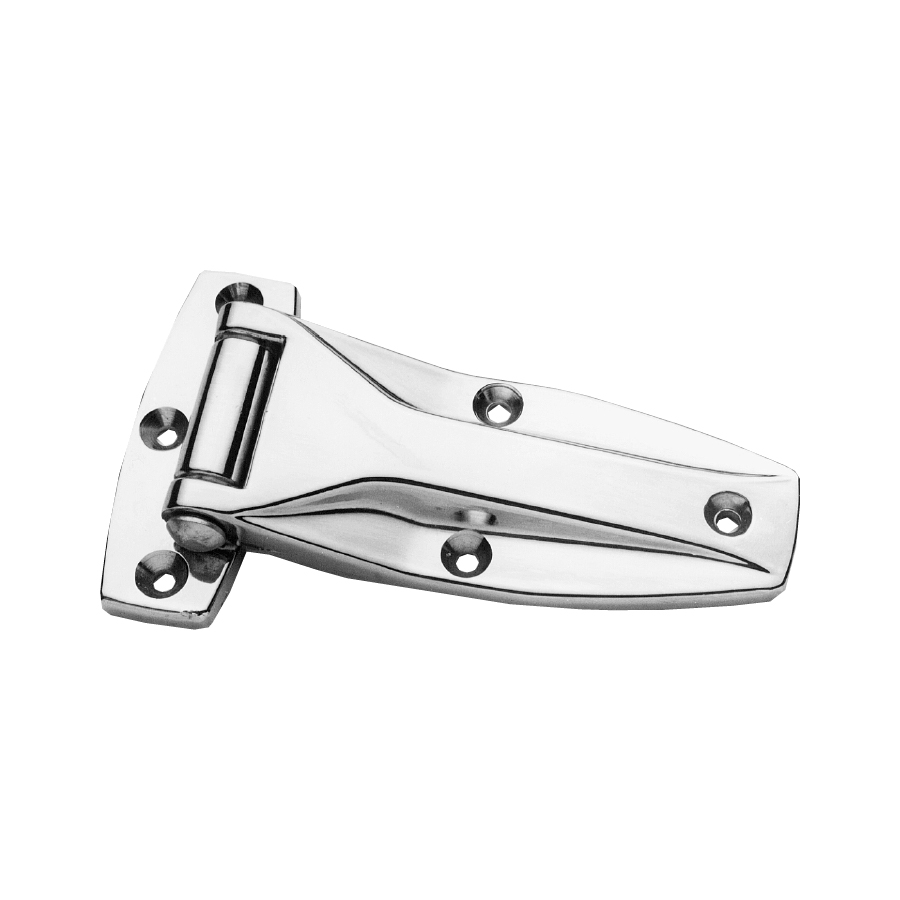

9/01782-3 - (80mm)
Ordering Code
| 9/01780 | Stainless profile hinge, 120 mm, RH |
| 9/01781 | Stainless profile hinge, 120 mm, LH |
| 9/01782 | Stainless profile hinge, 80 mm, RH |

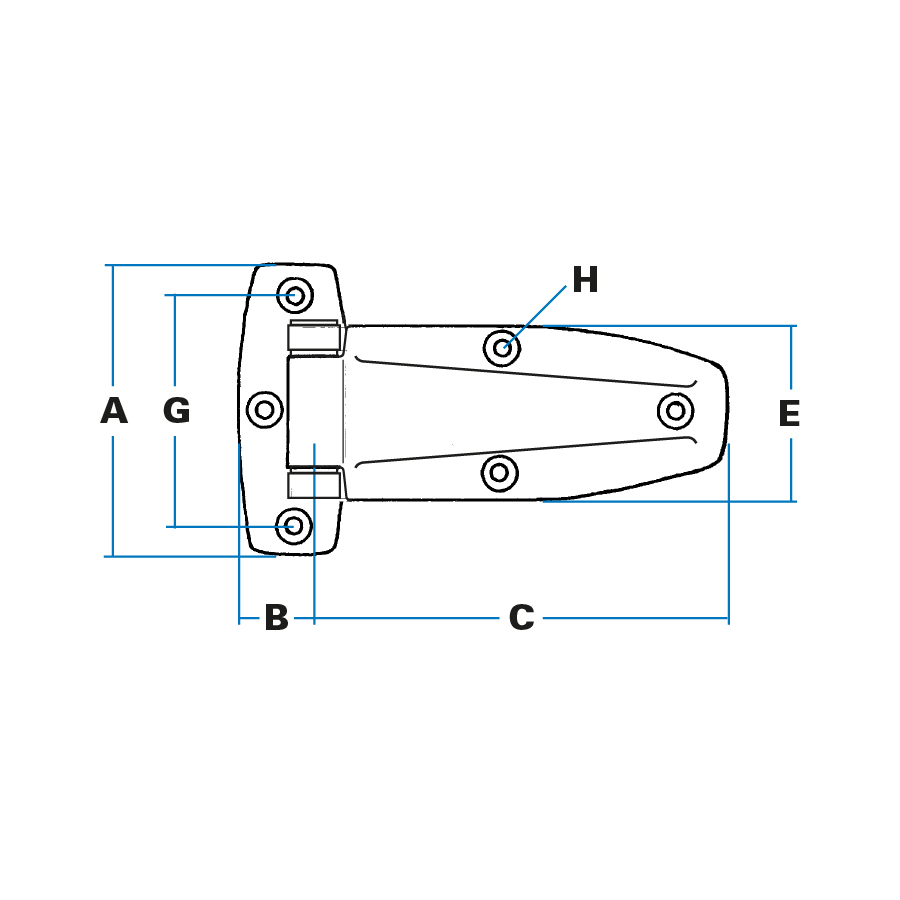

Specification
| 80 mm | 120 mm | ||
| A | Width | 64 mm | 82 mm |
| B | location | 20 mm | 25 mm |
| C | Length | 80 mm | 120 mm |
| D | Height | 15 mm | 20 mm |
| E | Max. Width | 40 mm | 50 mm |
| F | Base centres | 28 mm | 32 mm |
| G | Location | 52 mm | 64 mm |
| H | Hole sizes(dia) | 4 mm | 6 mm |
| J | Location | 9 mm | 12 mm |
| K | Thickness | 2.5 mm | 4.0 mm |
| L | Pin diameter | 6 mm | 8 mm |
Note: Headed pin is shown fitted in right hand position: this is removable and can be reversed on site
- Hinges open fully forward to 180°.
- Plant-on, and secured through countersunk holes in leaf butt. Hinge pin is removable.
- Stainless steel in Grade 304 with stainless pin and bearing washers.
Diecast Raised-Profile Hinges
Less expensive than stainless models, the diecast hinge is ideal for interior and less-demanding applications
Ordering Code
| 9/00701 | Diecast profile hinge,120 mm |
