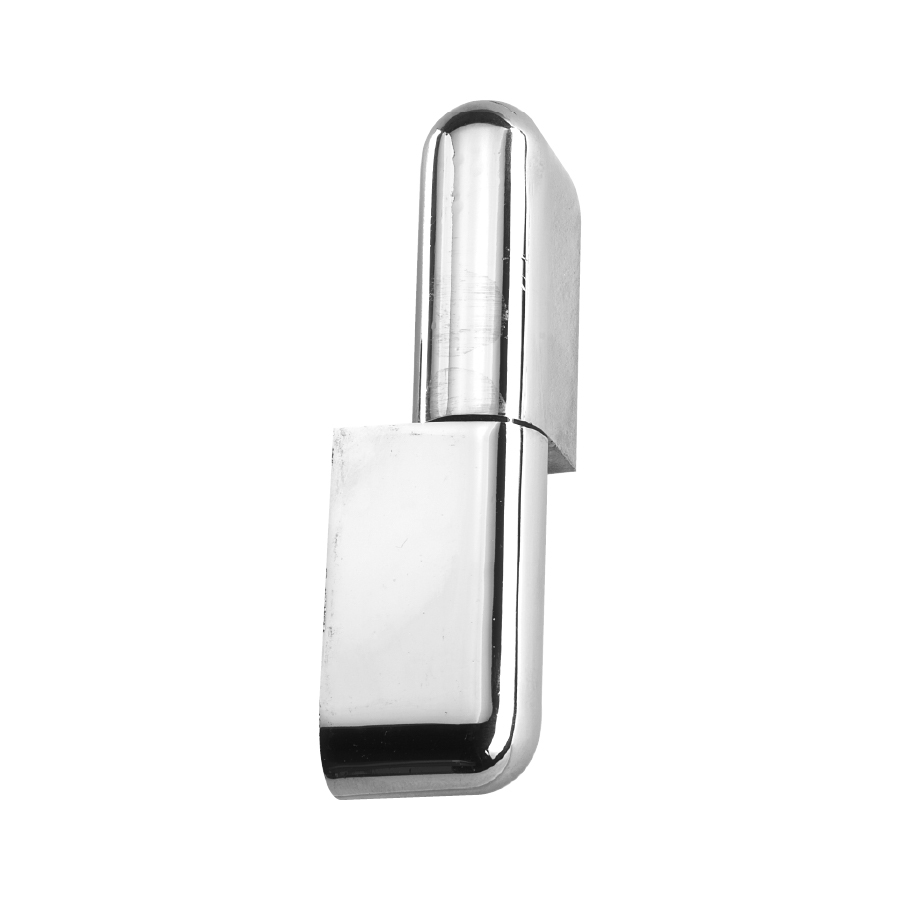

1/26380 - Hole & peg design, 60mm length

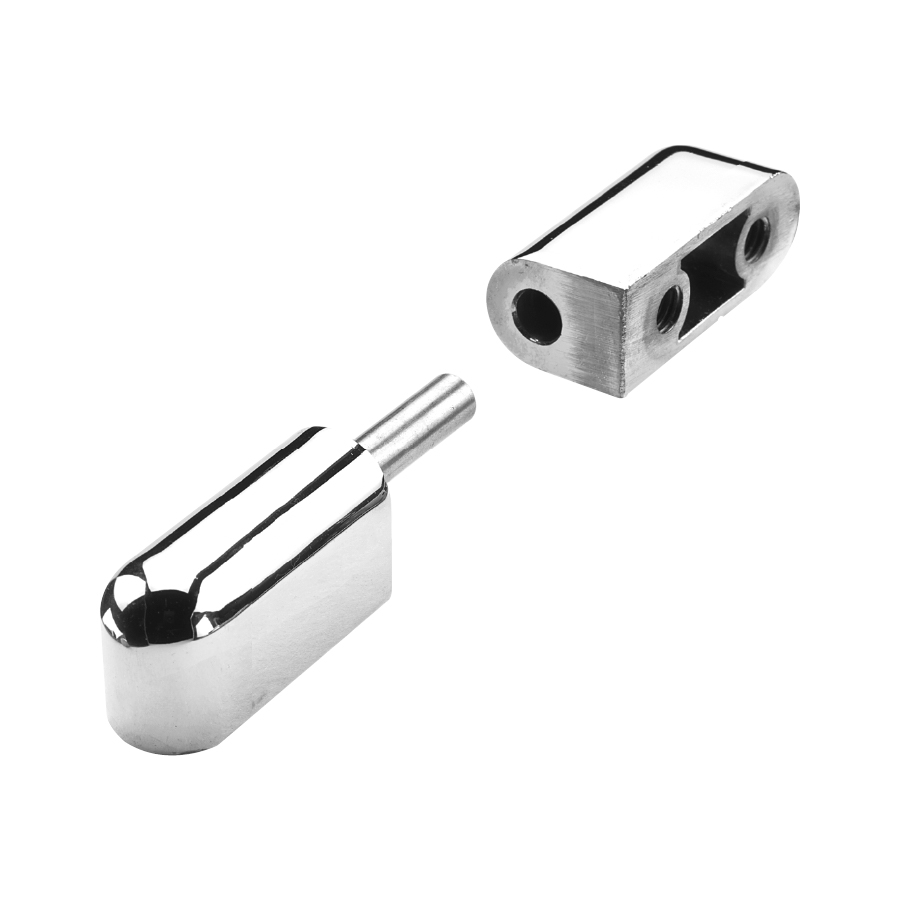

1/26390 - Two-hole design, 60mm length
1/26390 - Two-hole design, 60mm length
Ordering Code
| ‘Small’ (60 mm) hinges (hole and peg) | |
| 1/26379R | raw finish |
| 1/26379B | black finish |
| 1/26380 | chrome finish |
| Two-hole design (60mm only) With this option the ‘peg’ is replaced by a second tapped hole at the same location. |
|
| ‘Small’ (60 mm) hinges (2 holes) | |
| 1/26389R | raw finish |
| 1/26389B | black finish |
| 1/26390 | chrome finish |
Specification

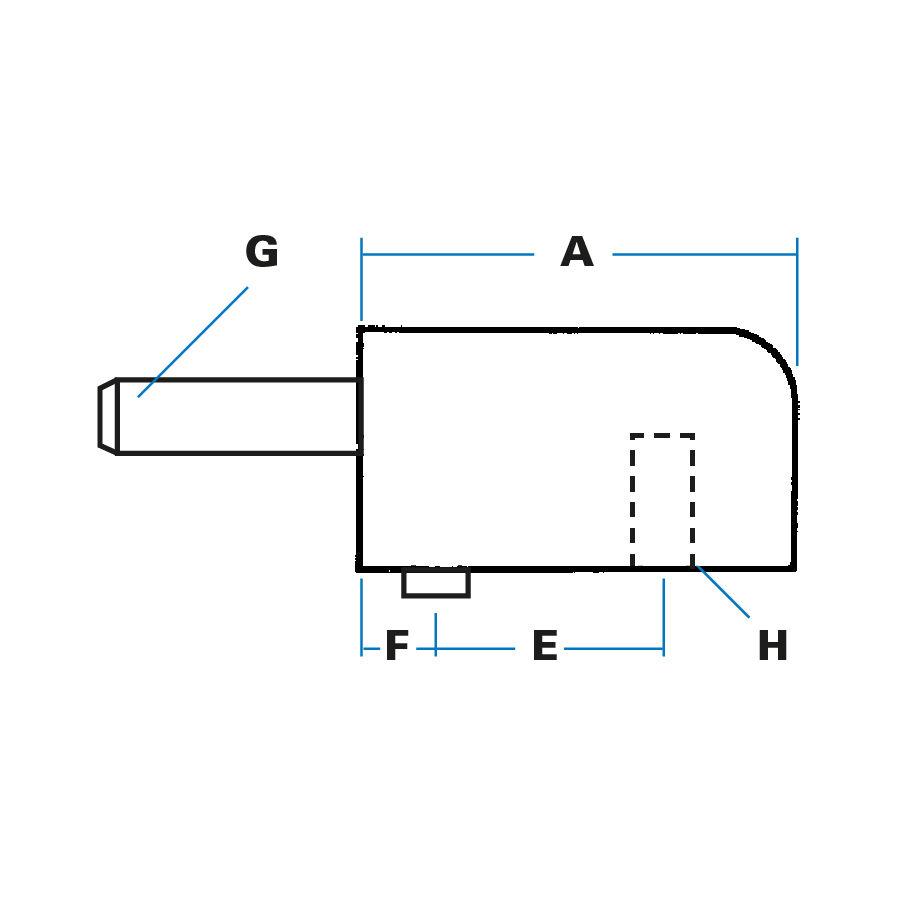

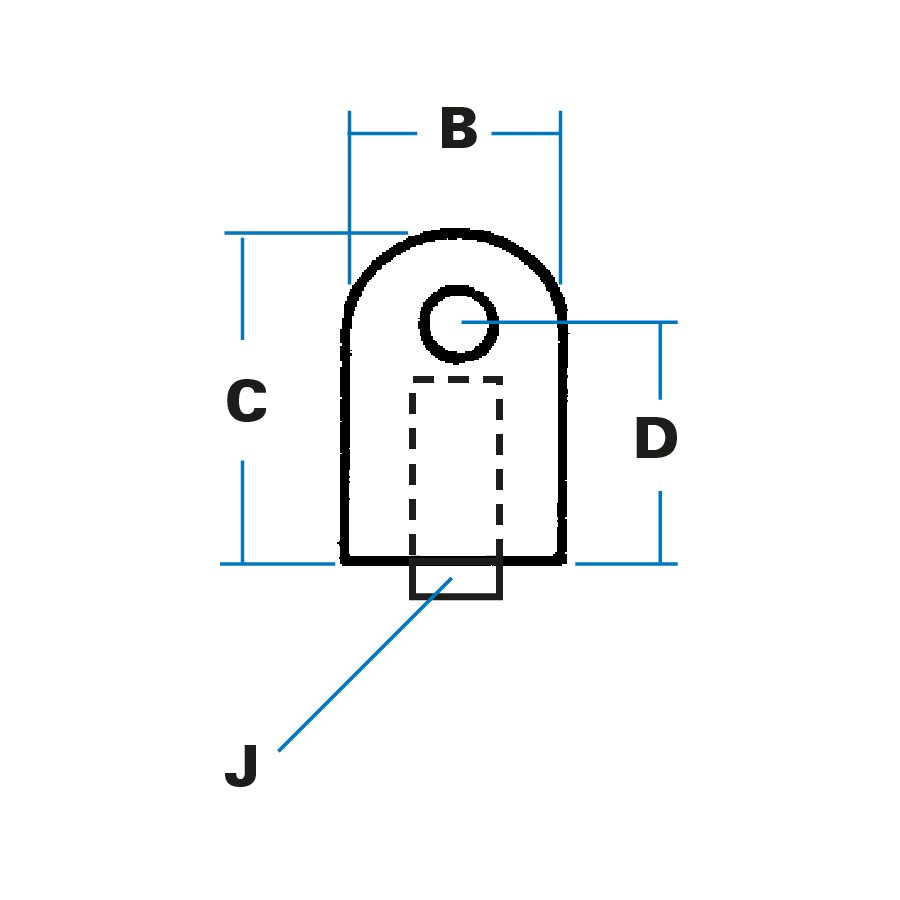

| 60 mm hinge | ||
| A | Length (half) | 30 mm |
| B | Width | 13 mm |
| C | Height | 14 mm |
| D | Height to pin | 7.5 mm |
| E | Location | 16 mm |
| F | Location | 8 mm |
| G | Pin diameter | 6 mm |
| H | Hole size | 6 mm x M5 |
| J | Peg size | 3 x 6 mm dia |
- Bottom half of hinge contains a fixed steel pin and is fitted to door frame. Top half is fitted to door edge and is lifted on (and off) pin. Movement is completely free.
- Chromium-plated, black powder-coated or raw metal for painting after assembly.
- Plant-on fitting. Tapped hole (M5 x 6mm) and location peg. (Two holes optional on 60mm size).
- Zinc diecast, with mild steel pin, zinc-plated. Stainless pin is optional.
