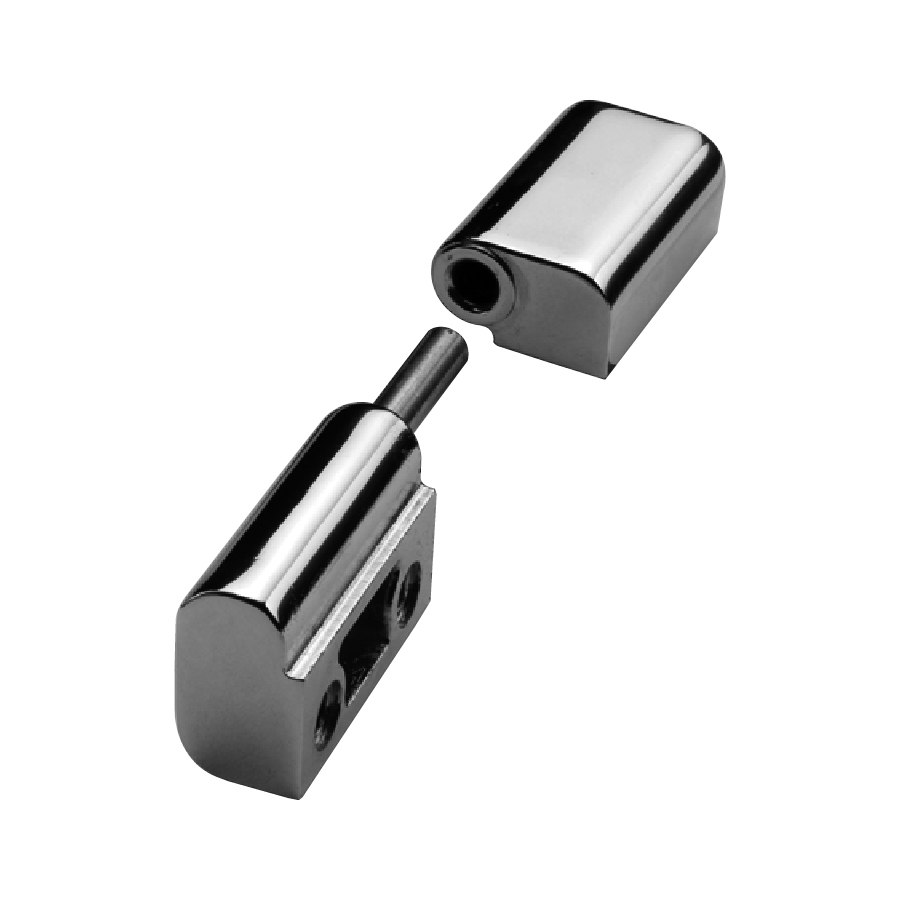

9/01967 - Left-side hinge
Ordering Code
| 9/01966 | Hinge, RH, chrome | 9/01967 | Hinge, LH, chrome |
Specification

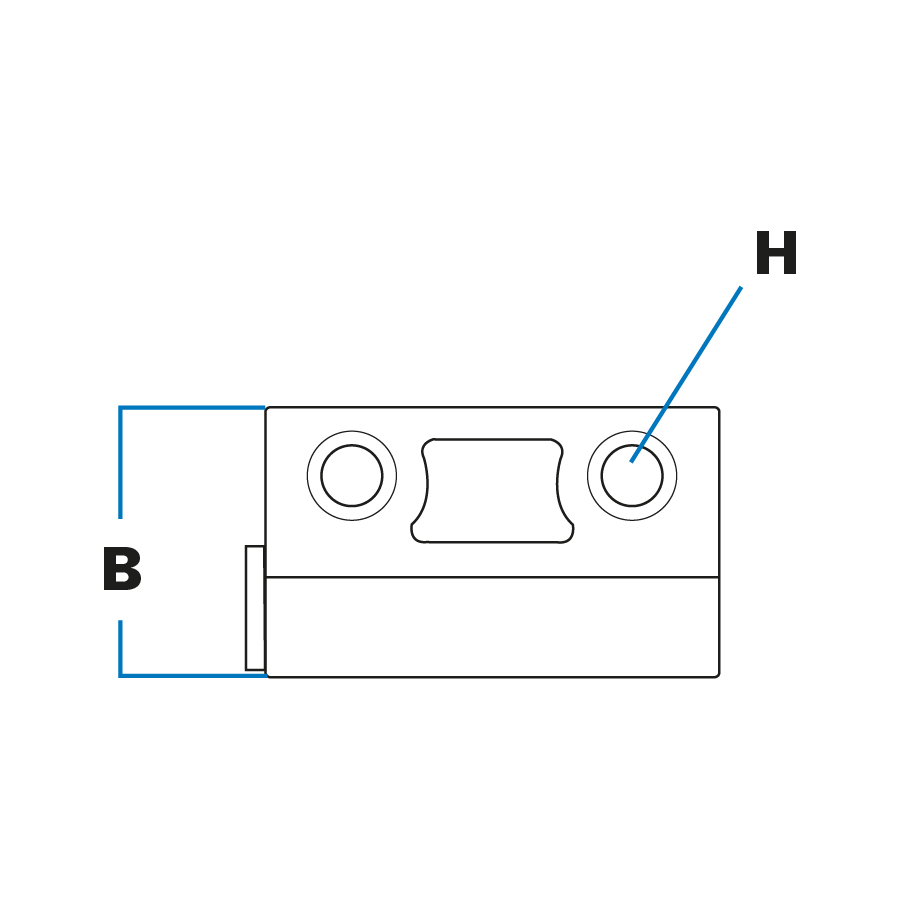

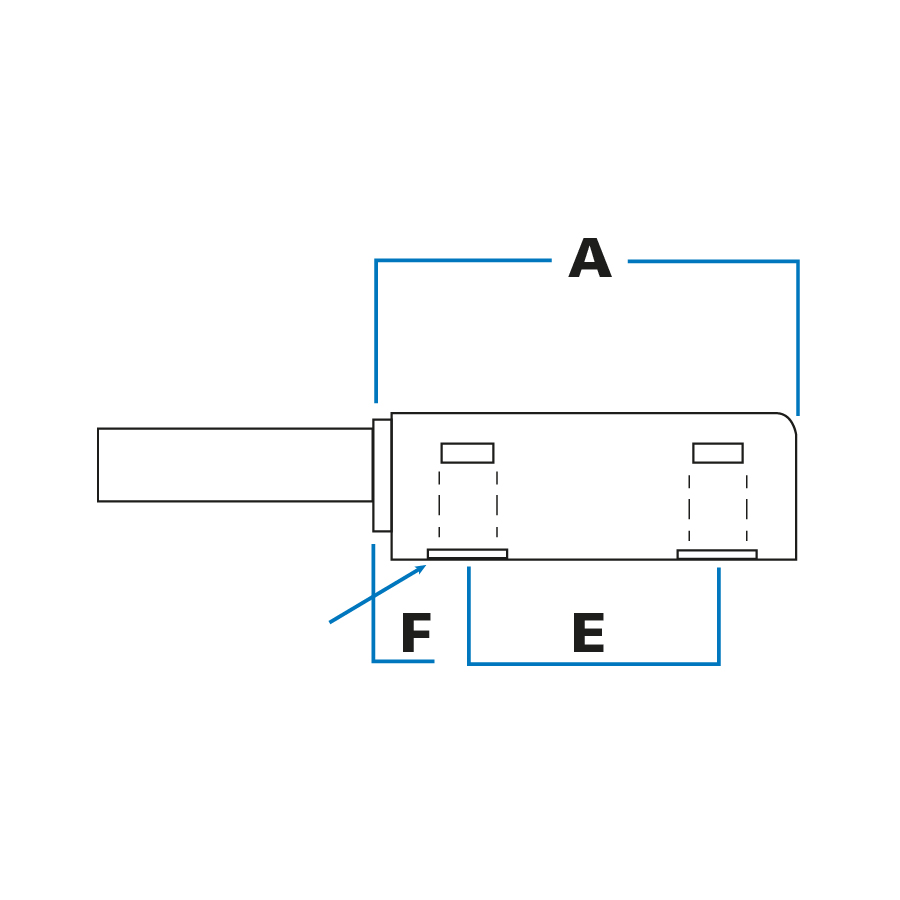

| A | Length (half) | 43 mm |
| B | Width | 25.5 mm |
| C | Height | 15 mm |
| D | Height to pin | 8.5 mm |
| E | Location | 25.5 mm |
| F | Location | 9.5 mm |
| G | Location | 12.7 mm |
| H | Hole sizes | M6x9 mm |
Note: Hinge pin diameter 6mm, projection 25mm

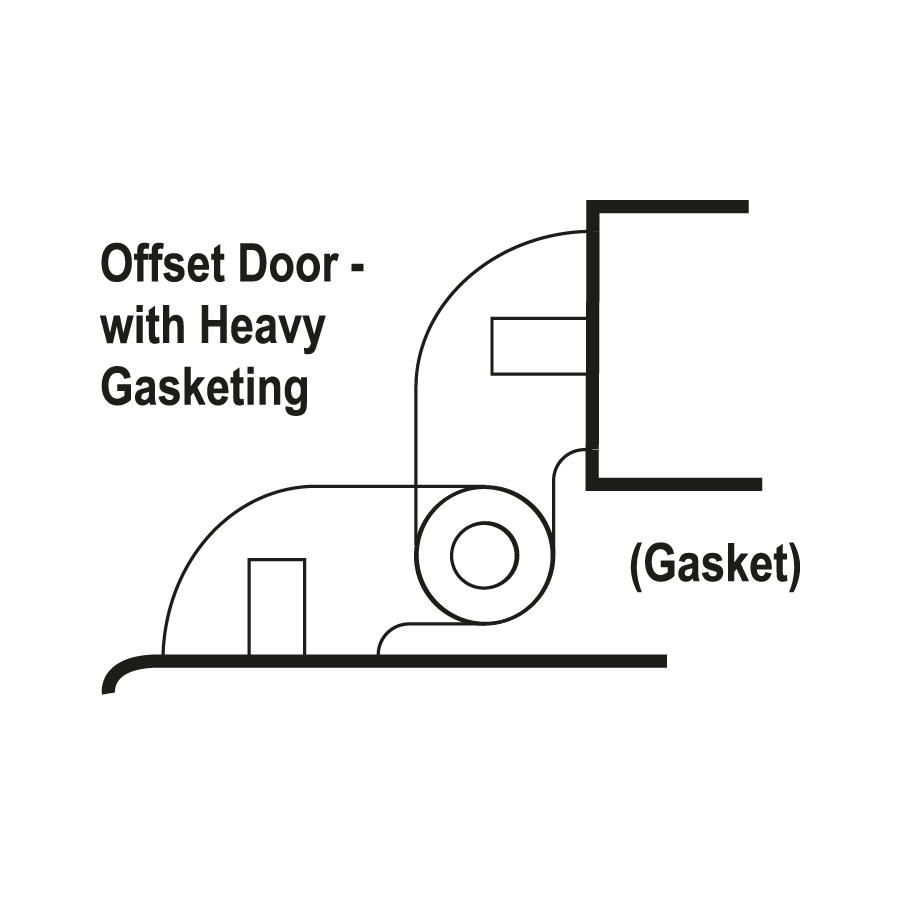

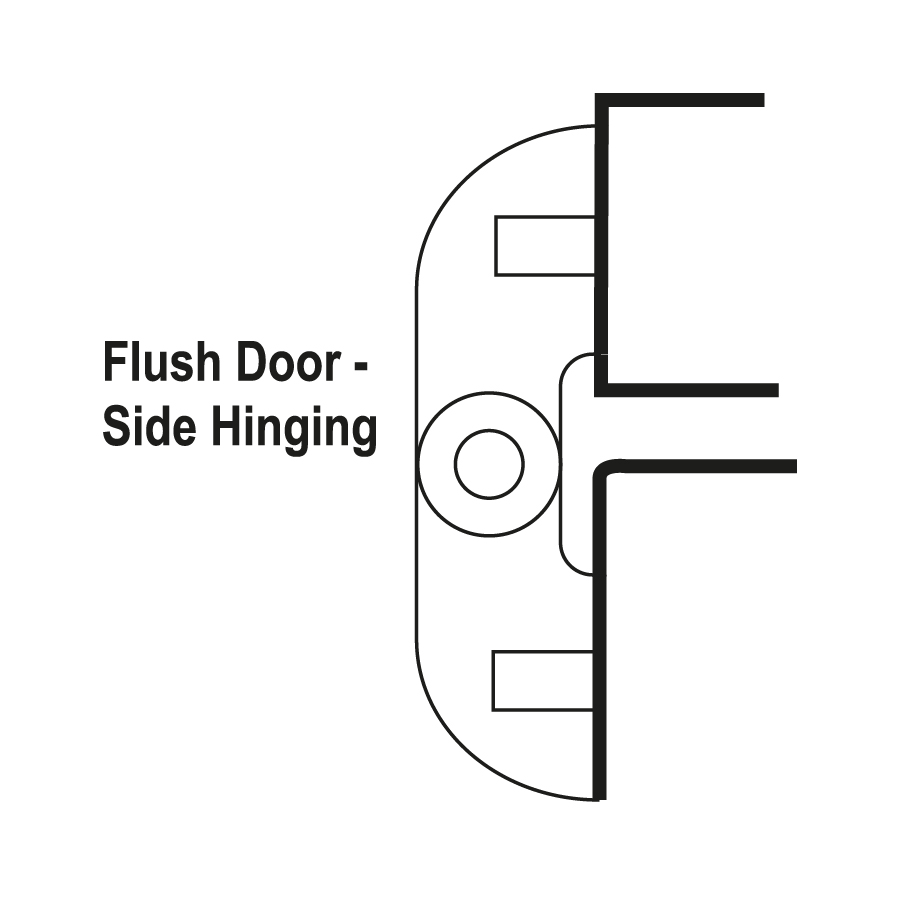

- Bottom half of hinge contains a fixed, stainless steel pin, and is fitted to door frame. Top half is fitted to face of door and is lifted on (and off) pin. Movement is completely free.
- Plant-on fitting, with two holes in base of each portion, tapped for M6 bolts.
- Chromium-plated.
- Zinc diecast, with stainless steel pin.
