7/04131 (LH)
Ordering Code
| 7/04132 | 4-hole hinge, RH, chrome |
| 7/04131 | 4-hole hinge, LH, chrome |

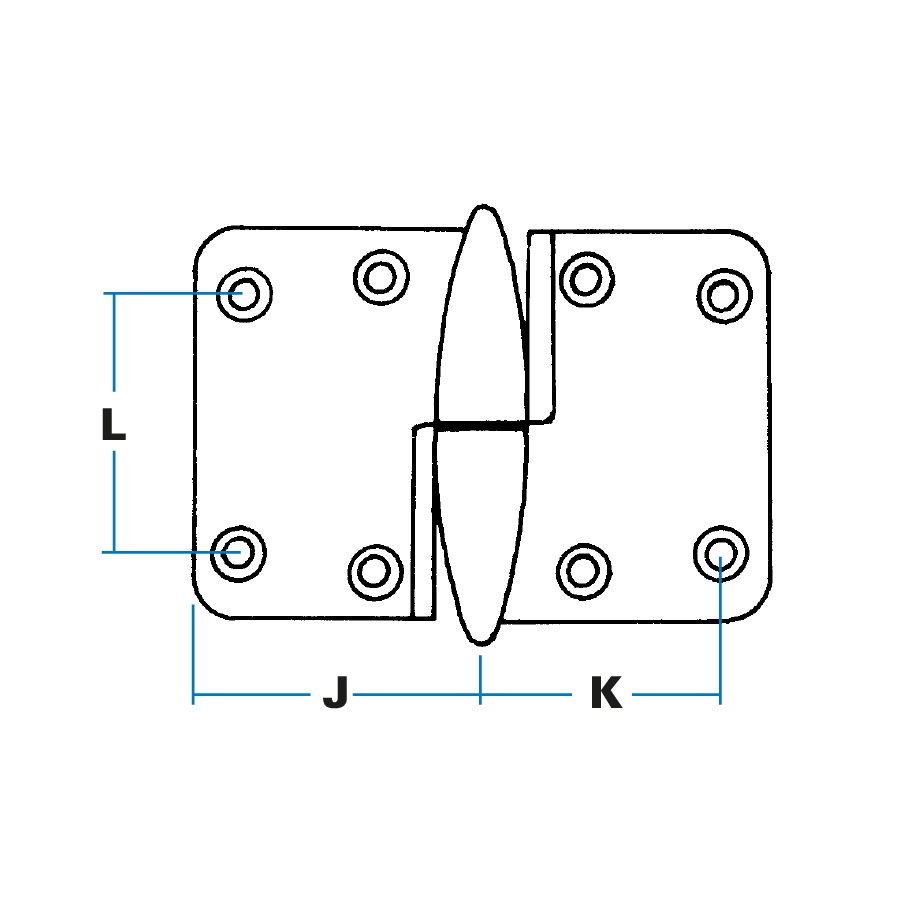

Specification
| J | Width (half) | 48 mm |
| K | Location to axis | 42 mm |
| L | Hole centres | 44 mm |
All other dimensions as 2-hole models
- Rig-tests show that two 4-hole hinges carried a load of 125kg (275lb) without damage, equivalent to a moment of force of 125NM (7.34KN).
