9/01875

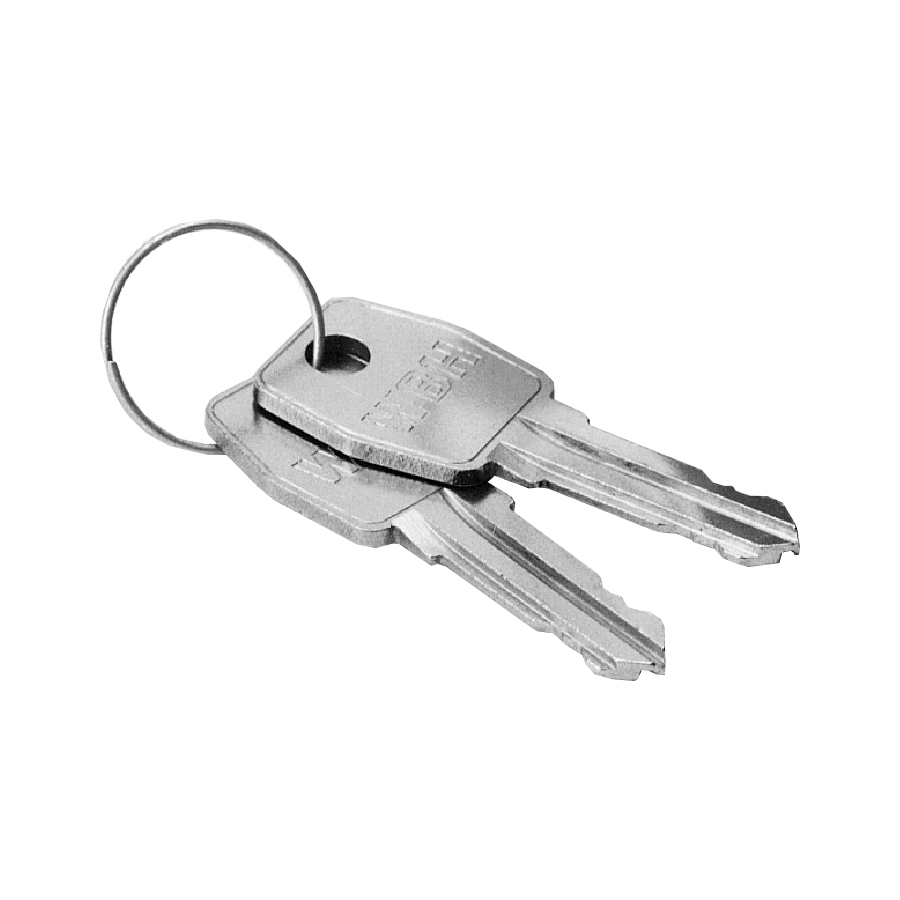

Double-sided ‘FT’ Keys are standard
Ordering Code
| 9/01875 | Turnbutton, chrome, LH |
| 9/00078 | Connecting link rod, 1-metre |
| 9/00138 | Recess pan, black |
| 5/00939 | Gasket for recess pan |
| 9/00137SS | Stainless Steel Pan |

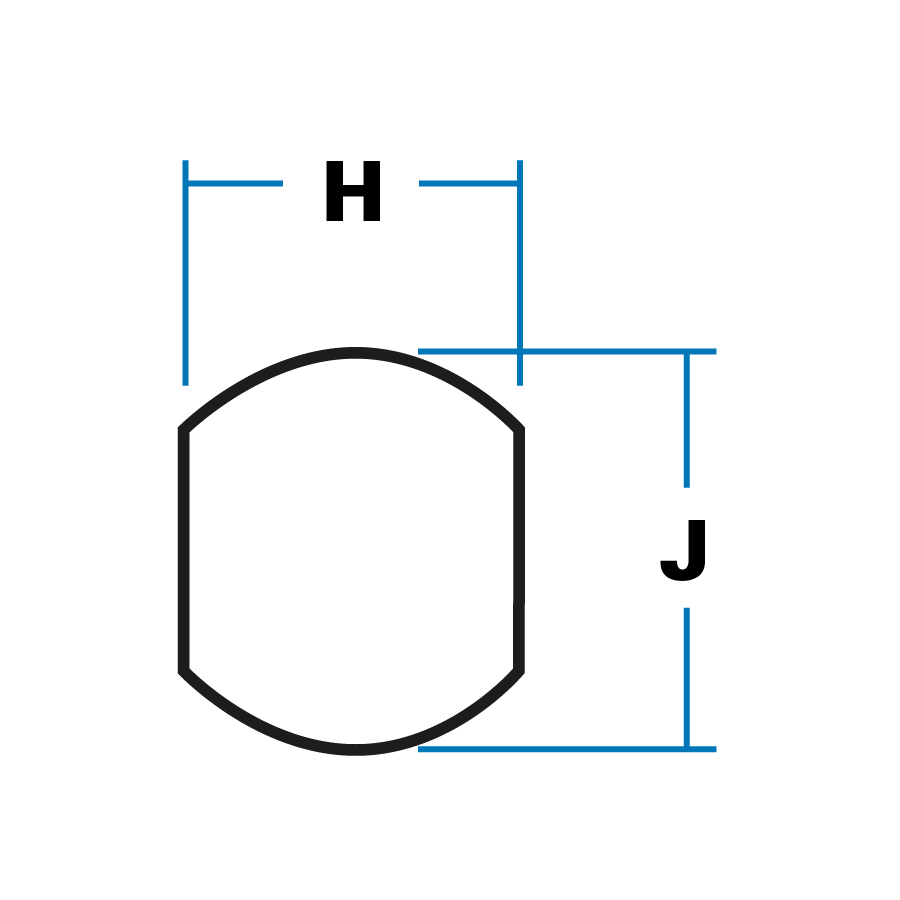

Panel-piercing detail This larger aperture also suits our ‘easy-fix’ range of ‘L’ & ‘T’ handles
Specification
| A | Face width | 45 mm |
| B | Body depth | 37 mm |
| C | Face height | 14 mm |
| D | Depth to drive plate | 30 mm |
| E | Height to hole | 20 mm |
| F | Hole size | (dia) 4 mm |
| G | Travel (max) | 25 mm |
| H | Piercing across flats | 22 mm |
| J | Piercing, diameter | 24 mm |

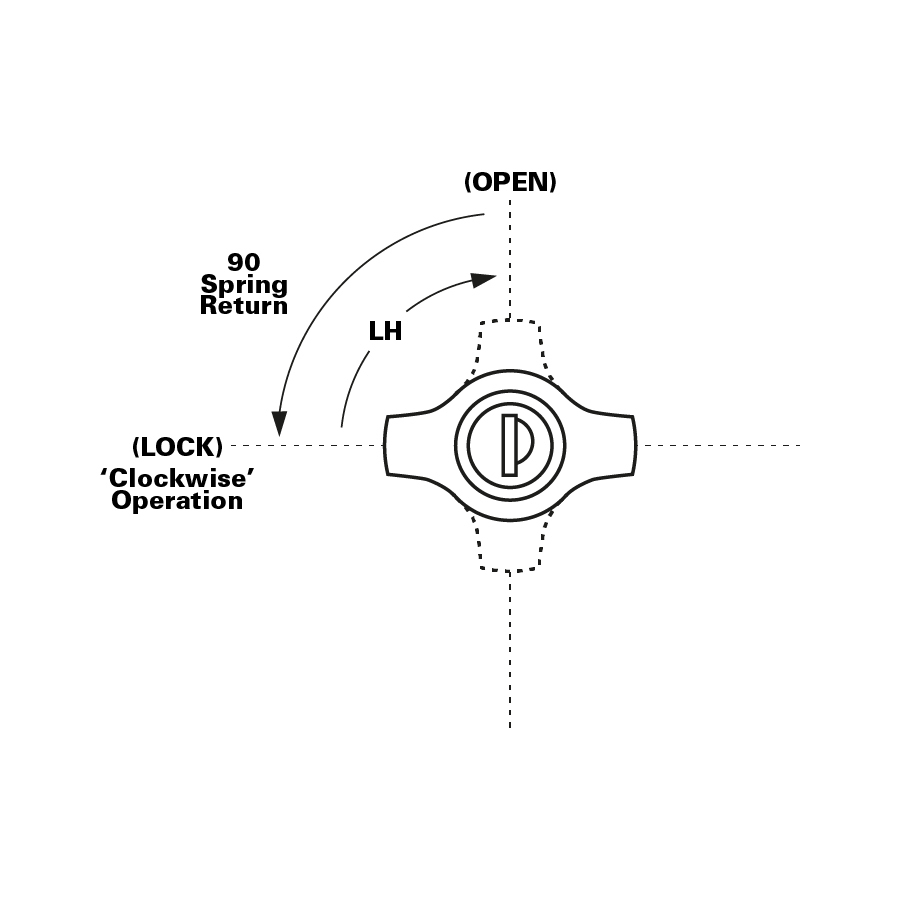

- Turn lock through 90° LH to rotate drive plate and operate attached linkage. Spring returns turnbutton to horizontal position. Key turns through 180° to prevent movement and withdraws in both positions.
- Insert from front into pierced aperture and fix with large hexagonal nut. Neoprene gasket and stainless spring washer provided.
- 'FT’ keys as standard with ‘shuttered’ keyway. Optionally ‘FS’ or ‘DLP’ key types.
- Bright chromium-plated or black powder-coated.
-
- Drive plate length/orientation
- 2-way connecting plate
- Can be used with our ‘claw’ and ‘rotary’ latches, or ‘intermediary’ unit, 1/29736.
