7/35310 (19mm)
9/01385 (30mm)
Ordering Code

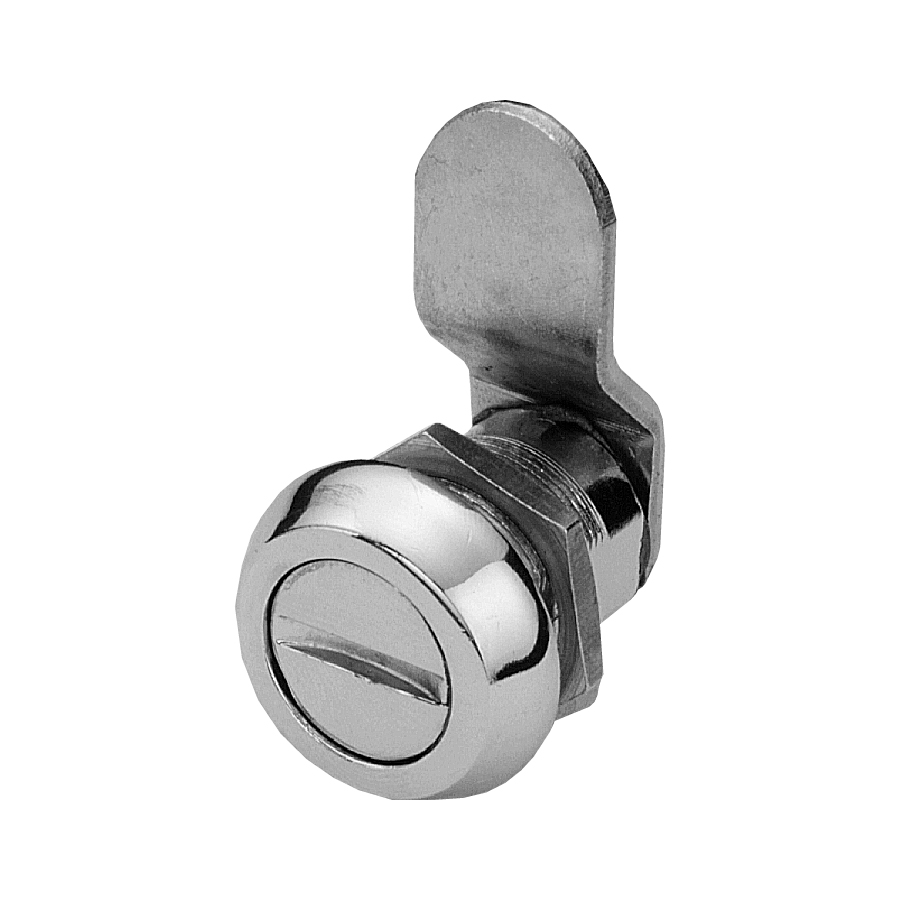

| 7/35310 | ‘Coin-op’ lock, 19 mm |

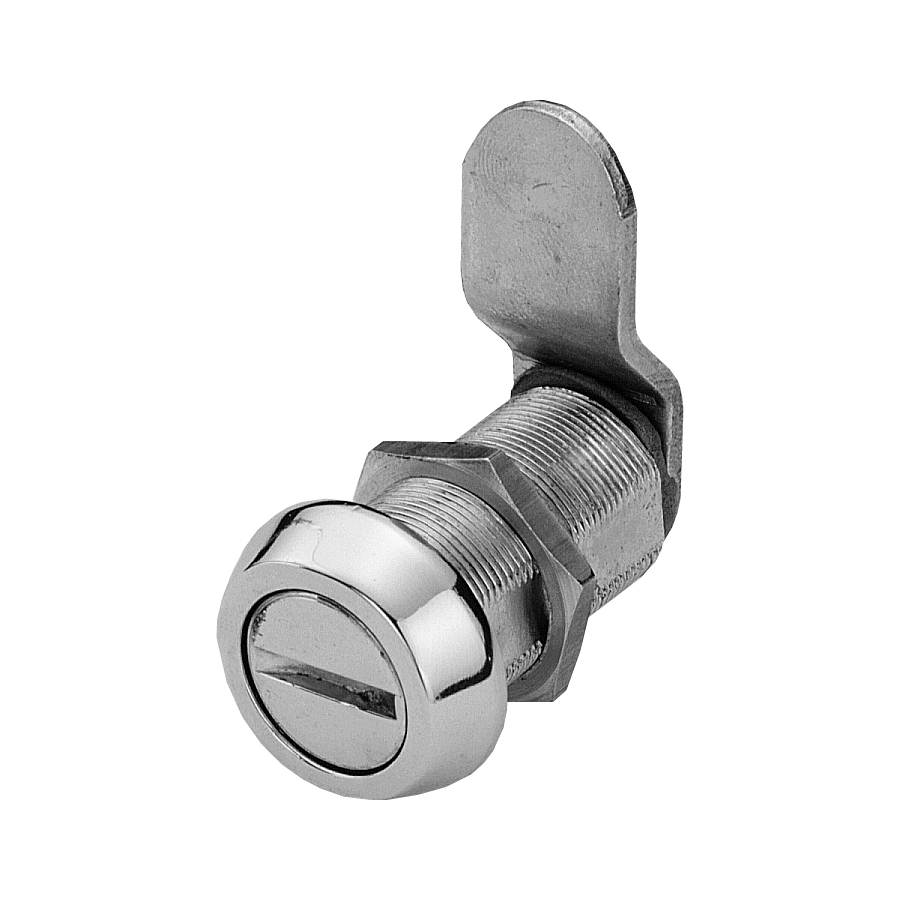

| 9/01385 | ‘Coin-op’ lock, 30 mm |
‘Slot’, 2.5mm x 5mm max. depth
‘Slot’, 2.5mm x 5mm max. depth

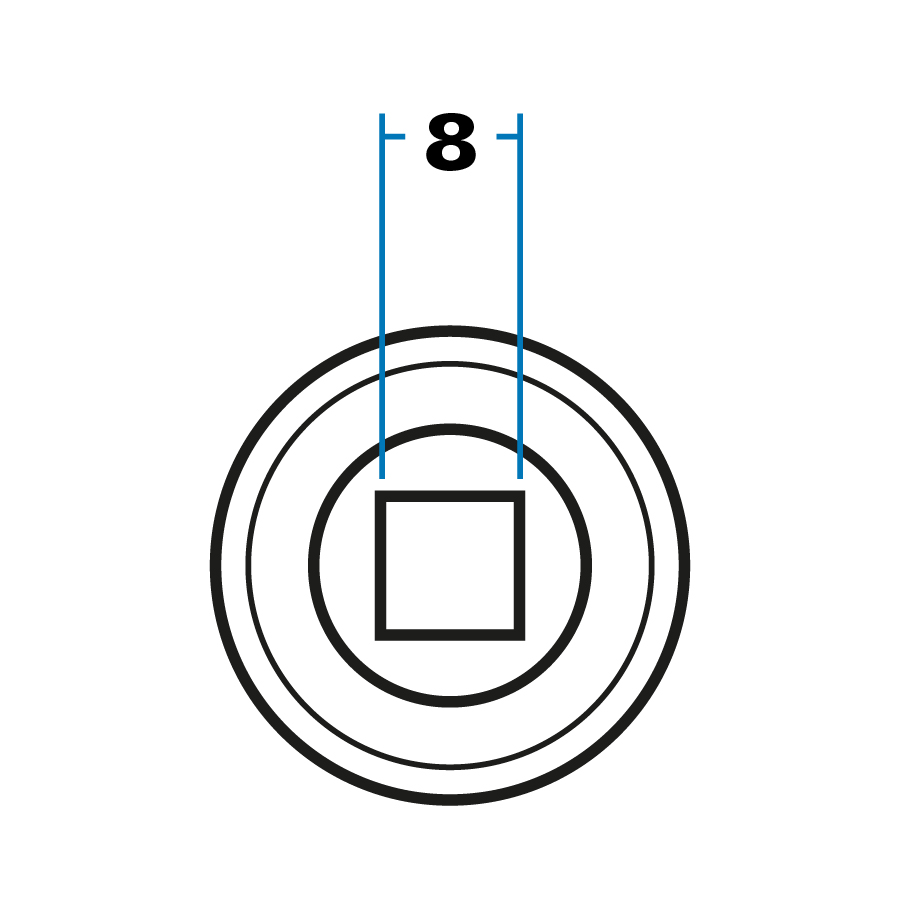

‘RECESS SQUARE’ 8mm
‘RECESS SQUARE’ 8mm
7/1905, spiked locating plate for wooden panels
Panel-piercing detail
Specification

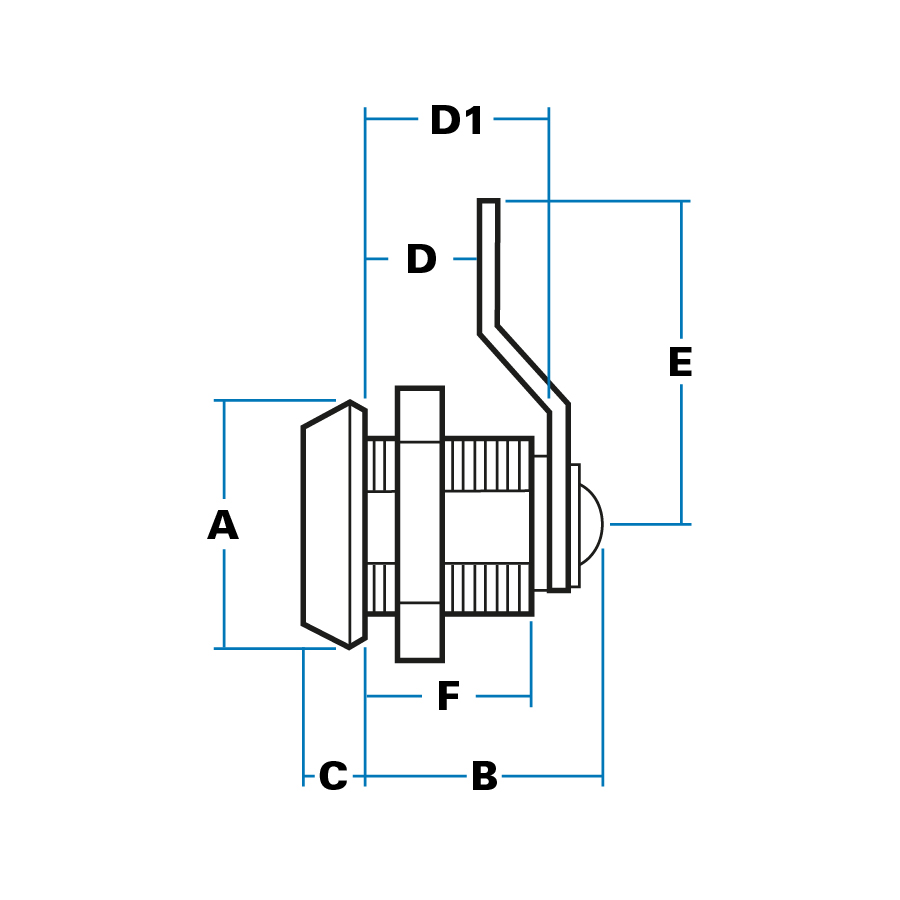

| A | Head diameter | 26 mm |
| B | Total depth | 27 mm/38 mm |
| C | Head projection | 6 mm |
| D | Depth to cranked latch | 12 mm/23 mm |
| D1 | Body depth | 19 mm/30 mm |
| E | Height of bar | 37 mm |
| F | Thread depth | 15 mm/30 mm |

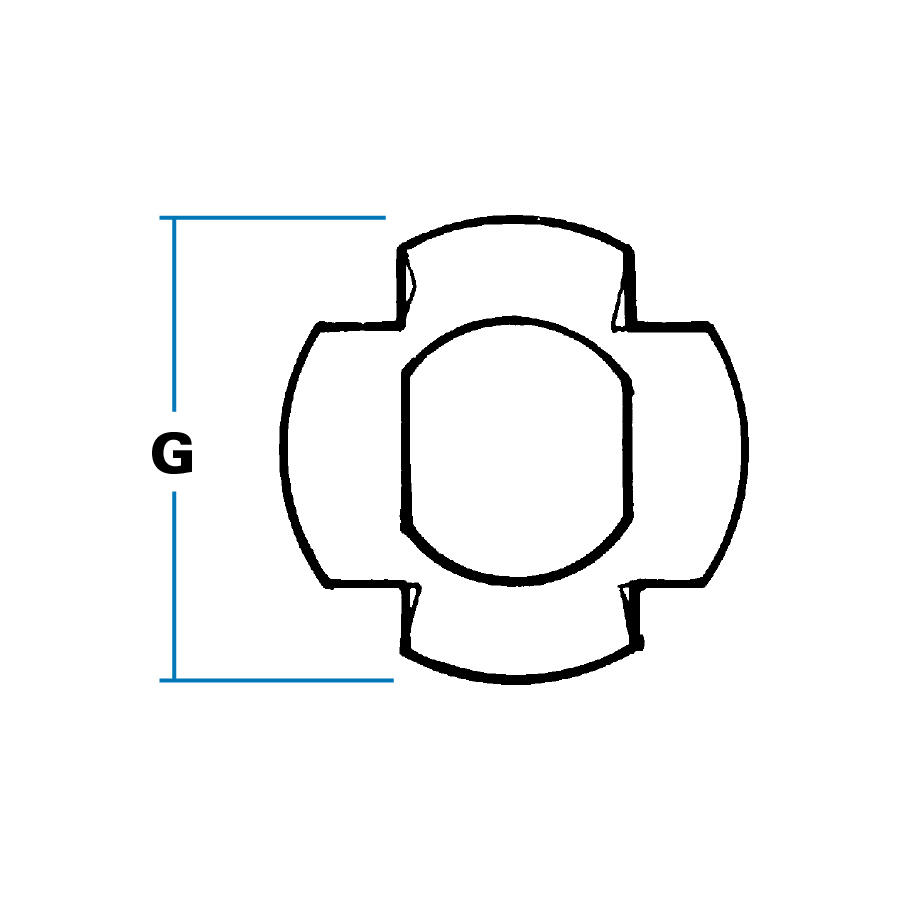

| G | Diameter, locating plate | 34 mm |

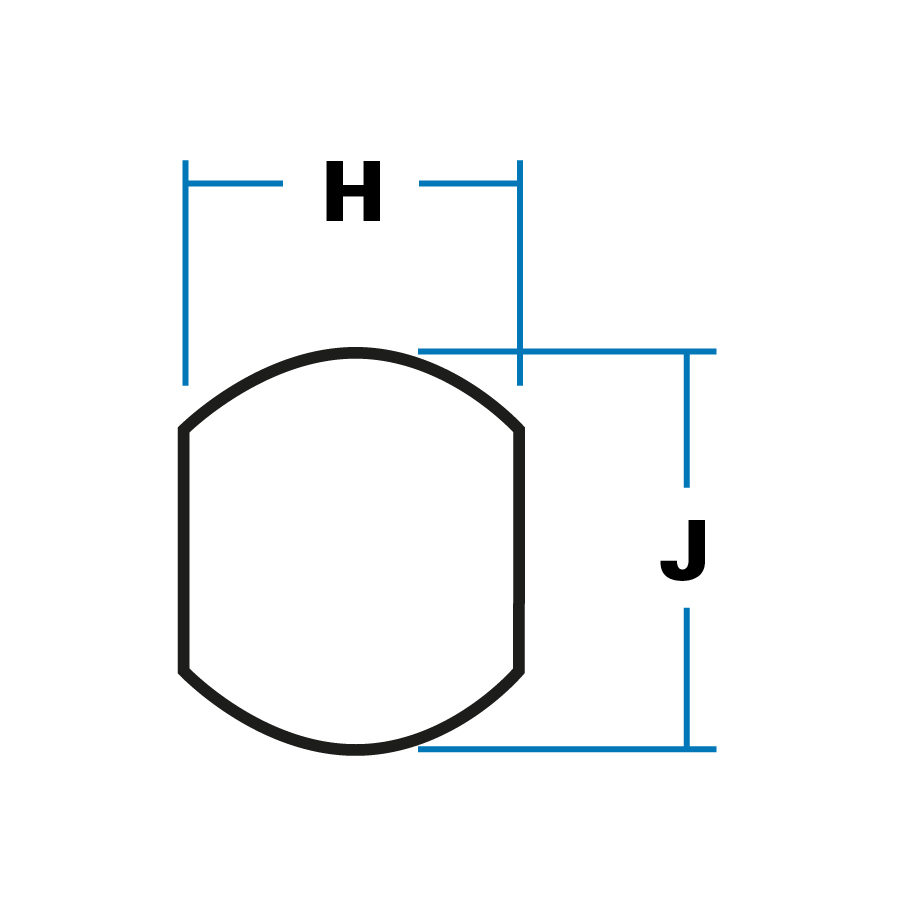

| H | Piercing, across flats | 17.5 mm |
| J | Piercing, diameter | 20 mm |

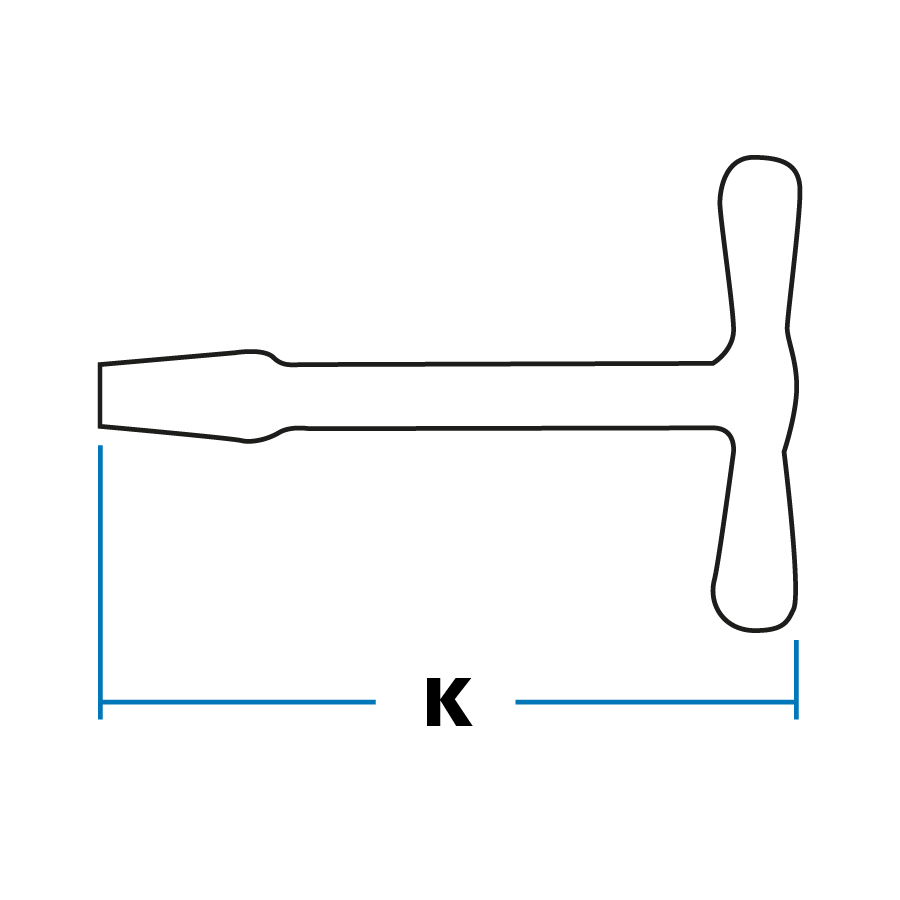

| K | T-key, length | 62 mm |
Locating plate must be ordered separately with this specification. Latch bar reversible, can be fitted at 45° intervals.

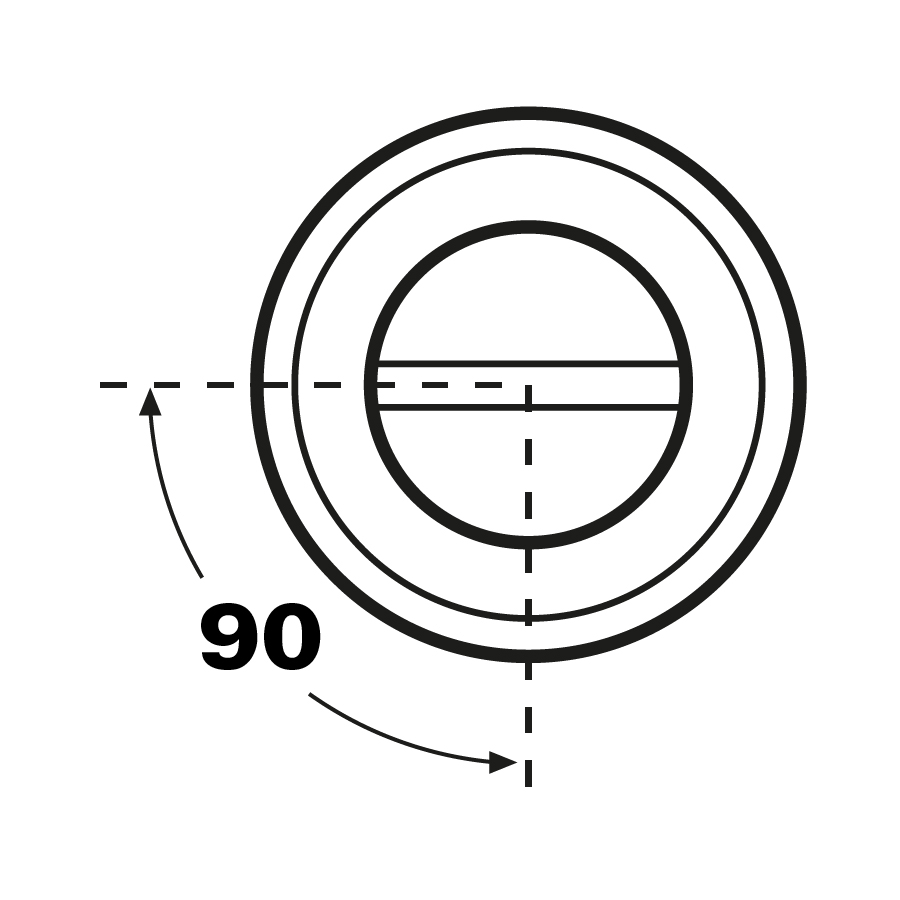

- 90° rotation as shown. To special order locks can travel through 180°.
- Bright chromium-plated as standard. Optionally, black or bright zinc-plated.
- Wide choice of latch bars, finish options and accessory items.
