Latch Bar Options For Compartment Locks

These are some of the more commonly-used latch bars for our compartment lock range. All are made in mild steel, 15 mm x 2.2 mm, and zinc-plated, with an 8-sided hole to accept 8 mm-square drive (unless otherwise noted). All are reversible.

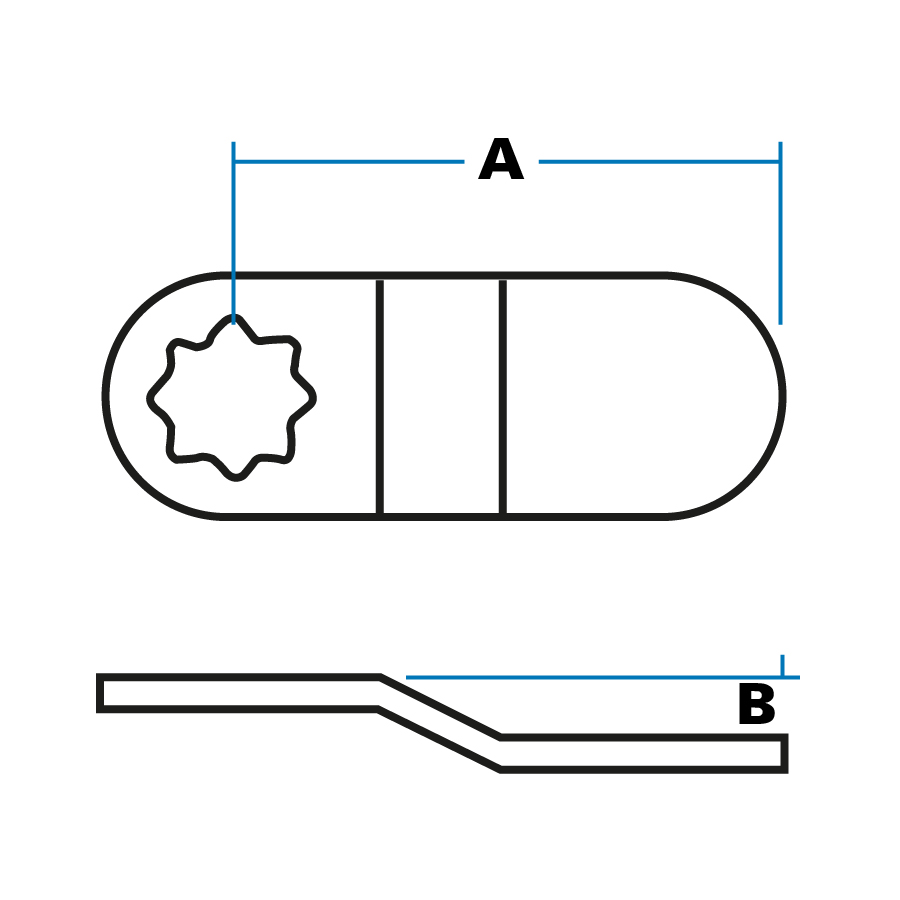

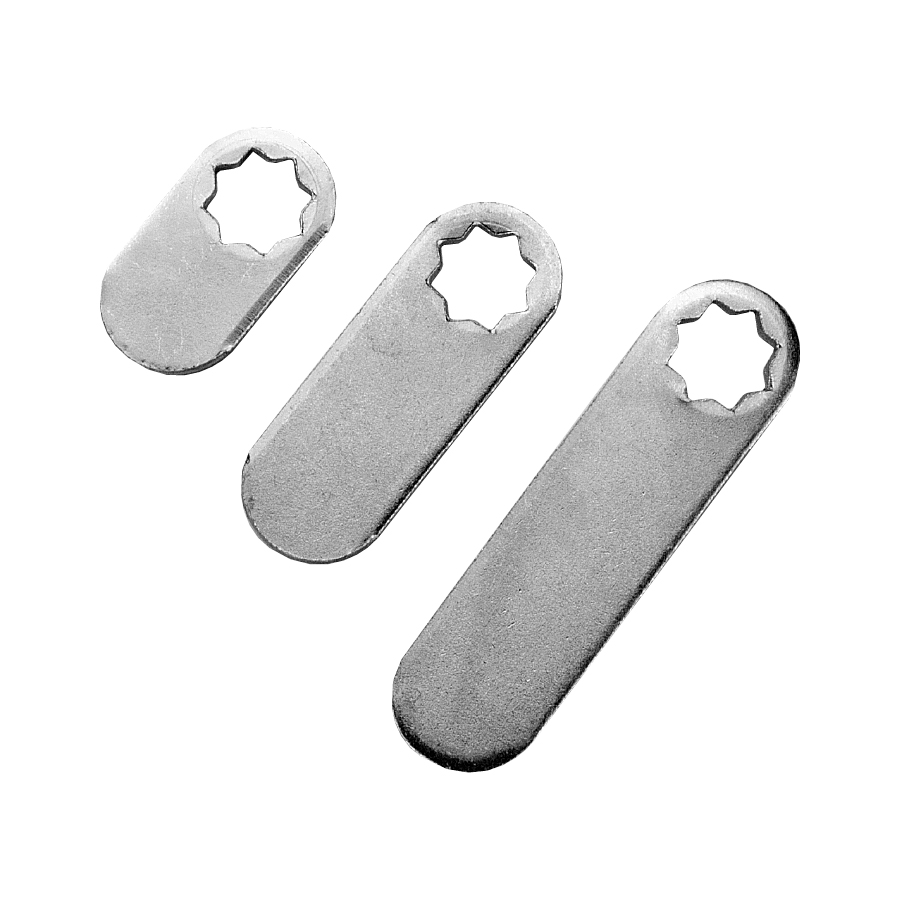

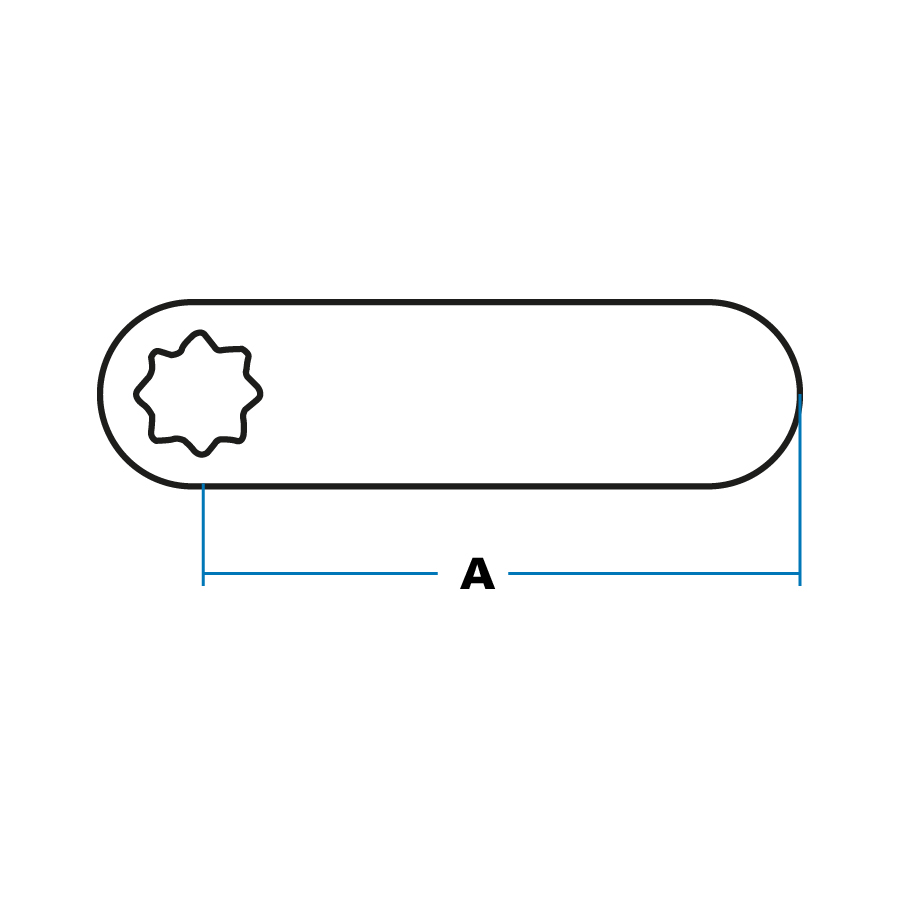

Standard lock models are normally fitted with the ‘cranked’ bar (7/01906) or the ‘straight’ bar, (7/03640). However, any of these options can be provided on request,and special bars made to order where volumes are appropriate.

A range of 3 mm heavy-duty bars with raised cam-form is also available and is shown separately.
