9/00123
Ordering Code
| 9/00123 | Fixed-key lock, black & chrome. |
Locating plate must be ordered separately with this specification.

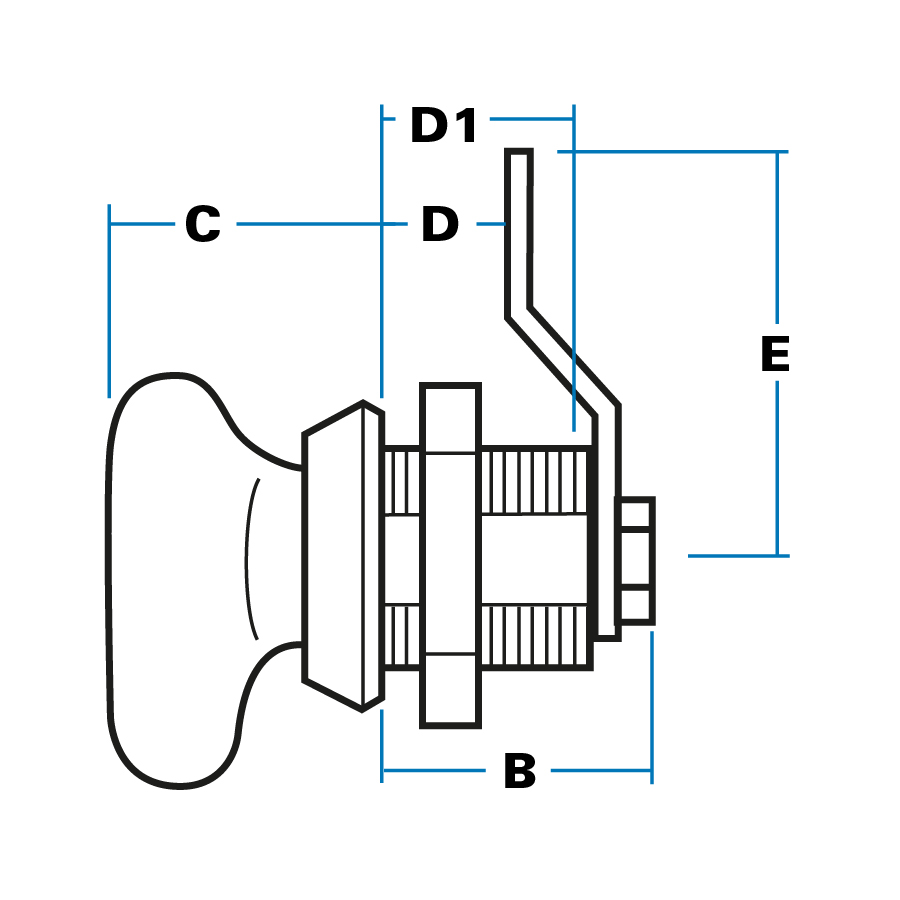

Specification

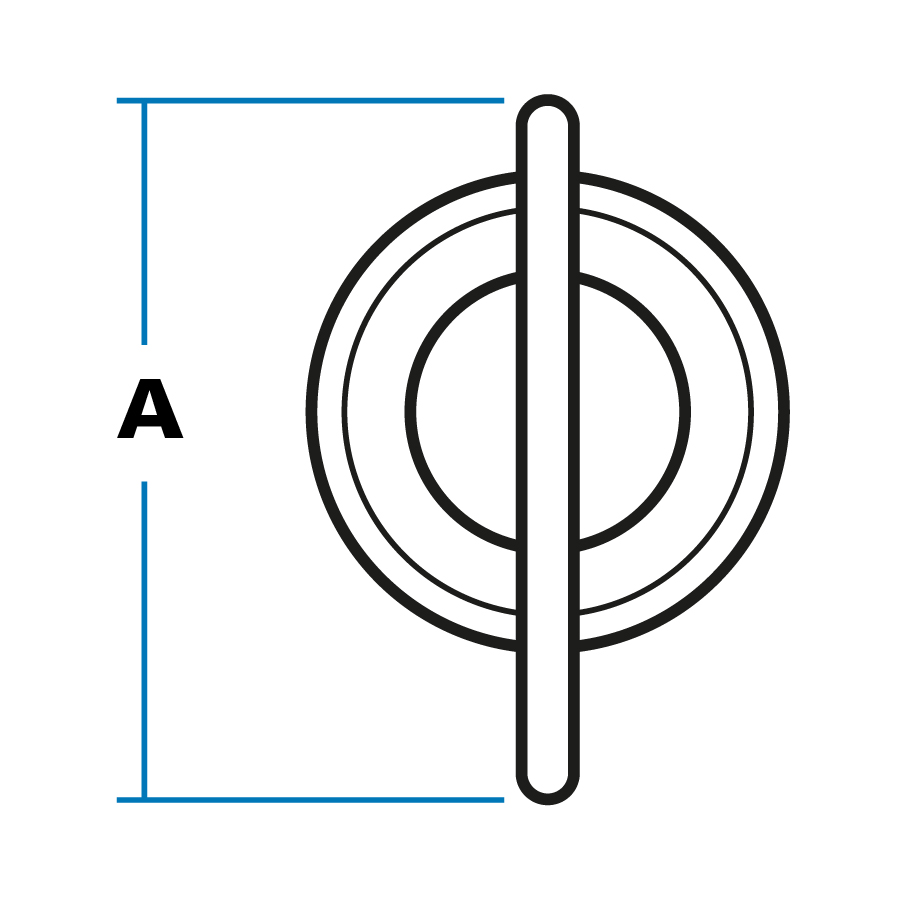

| A | Height of key | 32 mm |
| B | Total depth | 20 mm |
| C | Head projection | 25 mm |
| D | Depth to cranked latch | 6 mm |
| D1 | Body depth | 13 mm |
| E | Height of bar | 37 mm |
- Wide choice of latch bars, finish options. 180° rotation and other lengths to special order.
