9/00418 (locking) stainless steel
Single-sided ‘FS’ keys are standard
Ordering Code
| Mild steel models, with plain rim & gasket | |
| 9/00419 | Slam-bolt paddle, locking |
| 9/00419B | As above, black |
| 9/00419/01 | As 9/00419, FS880 standard keys |
| 9/00419B/01 | As above, black |
| 9/00420 | Slam-bolt paddle, non-locking |
| Stainless models with pierced rim & gasket | |
| 9/00418 | Slam-bolt paddle, locking |
| 9/00418/01 | As 9/00418, FS880 standard keys |
| 9/00408 | Slam-bolt paddle, non-locking |

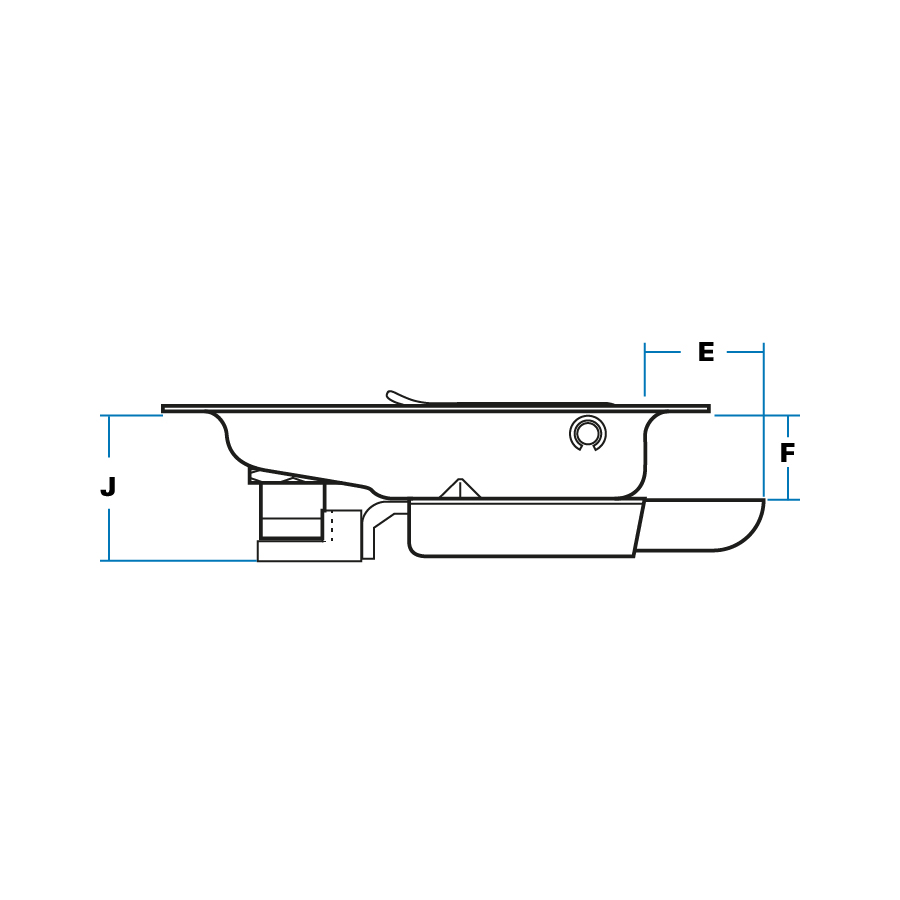

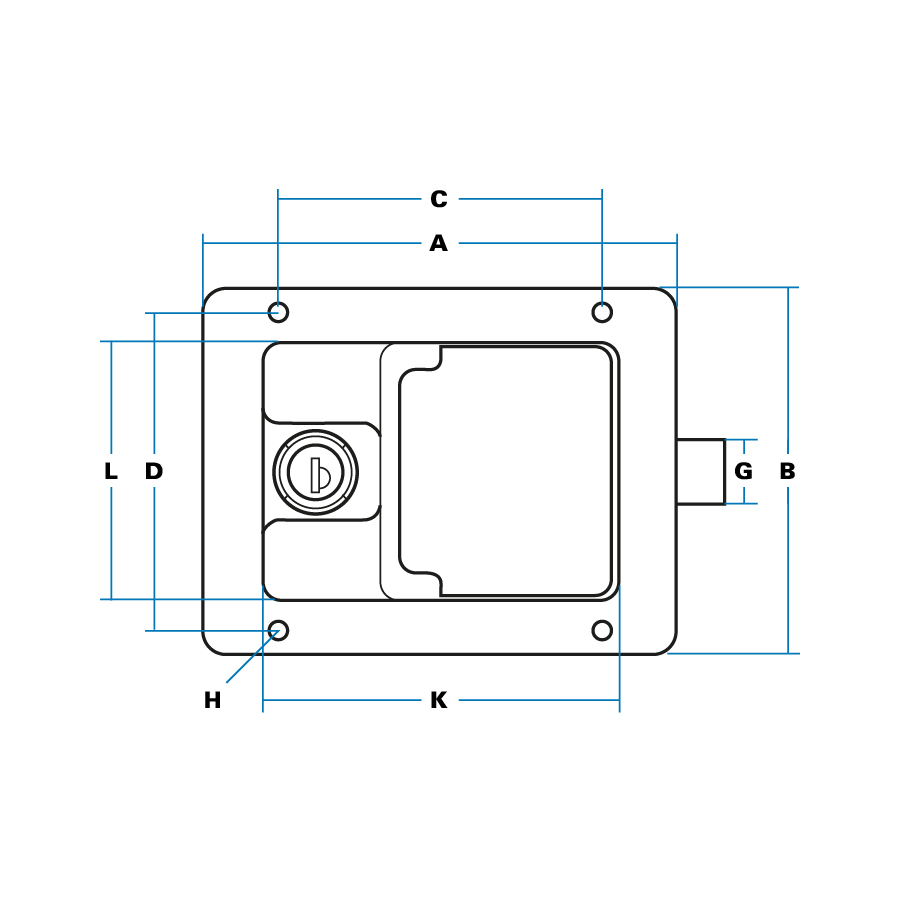

Specification
| A | Case length | 140 mm |
| B | Case width | 108 mm |
| C | Hole centres | 95 mm |
| D | Hole centres | 94 mm |
| E | Bolt projection (max) | 28 mm |
| F | Bolt depth | 22 mm |
| G | Bolt width | 19 mm |
| H | Hole sizes (diameter) | 5 mm |
| J | Maximum depth | 40 mm |
| K | Recess length | 105 mm |
| L | Recess width | 76 mm |
- Precision, machine-cut solid steel slam-bolt, heavy duty slide and locking cam, mirror finish on case/flap and no sharp edges.Moulded gasket supplied.
- Slam action against door frame or striker, released by lifting flap.
- Locking with key blocks movement of flap, but slam bolt is still free to operate and can be opened from inside (“Deadlocking” is a special option).
- Stainless models have pierced rim as shown or internal welded studs, with moulded gasket. Mild steel models normally have plain rim (for weld-on mounting).

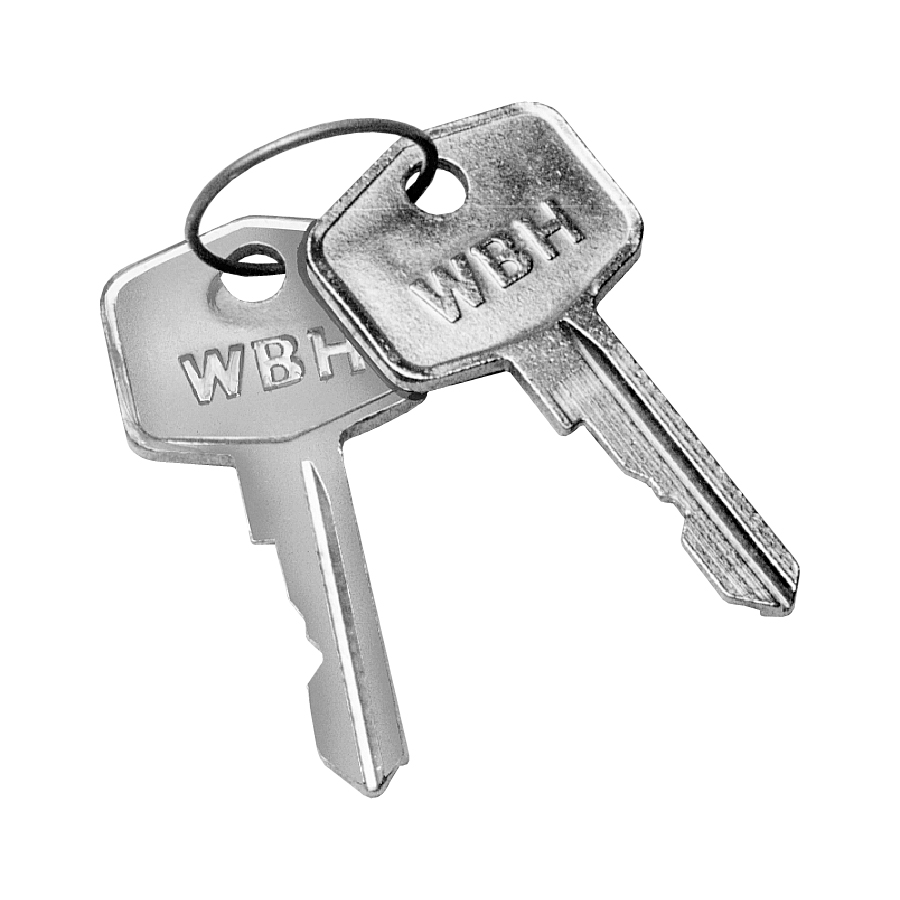

- ‘FS’ keys as standard with shuttered keyway. Optionally ‘FT’, ‘92’ or ‘DLP’, key types.
- Polished stainless steel or mild steel, clear zinc-plated. Optionally, black powder-coated finish.
- With stainless models, all components made in Grade 304 other than slam-bolt (stainless to special order). With mild steel models, case & flap made in CR4.
