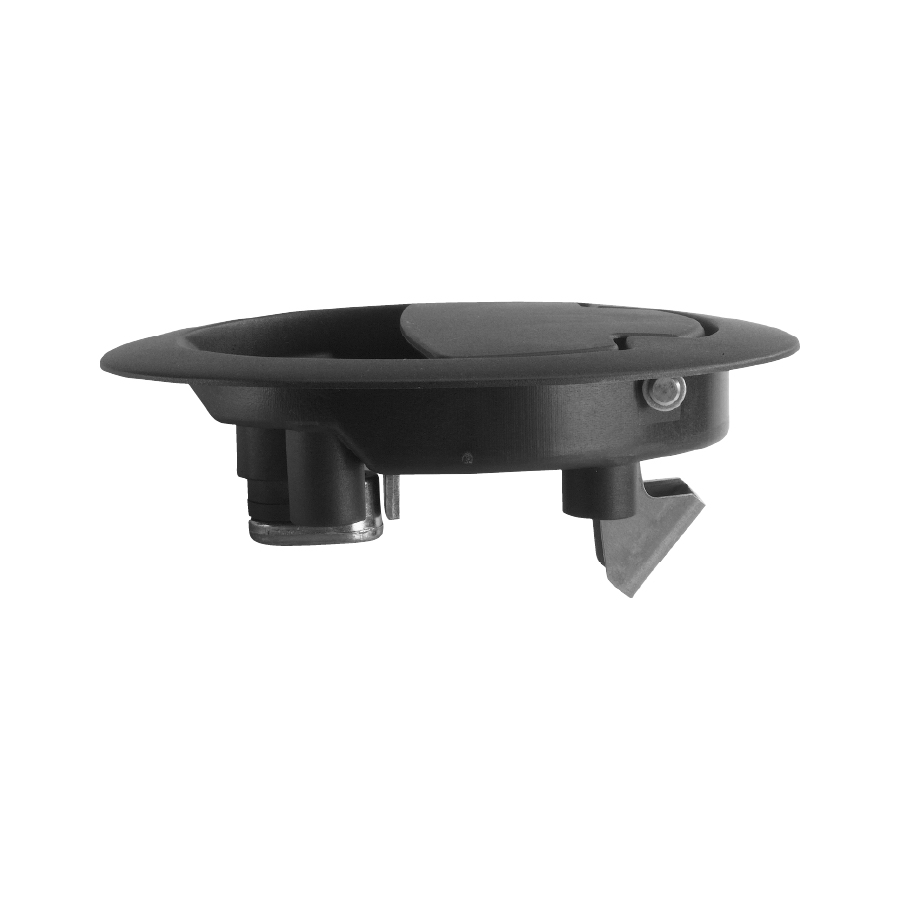

9/03440 - Oval paddle with hook-latch

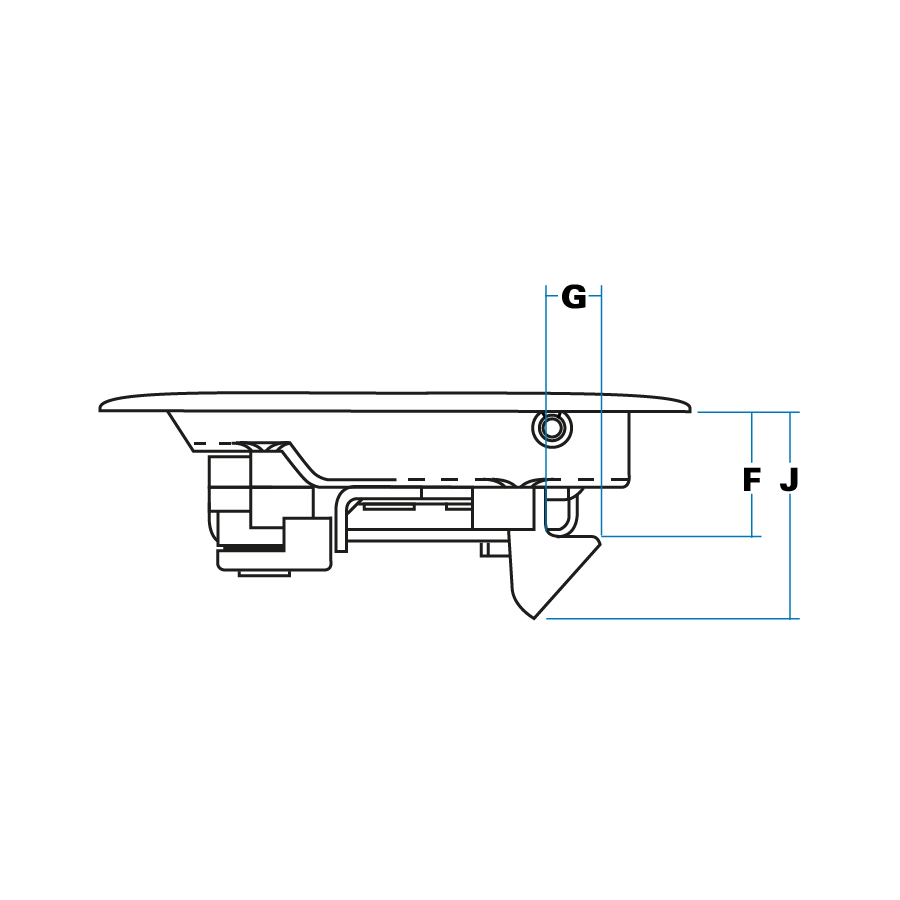

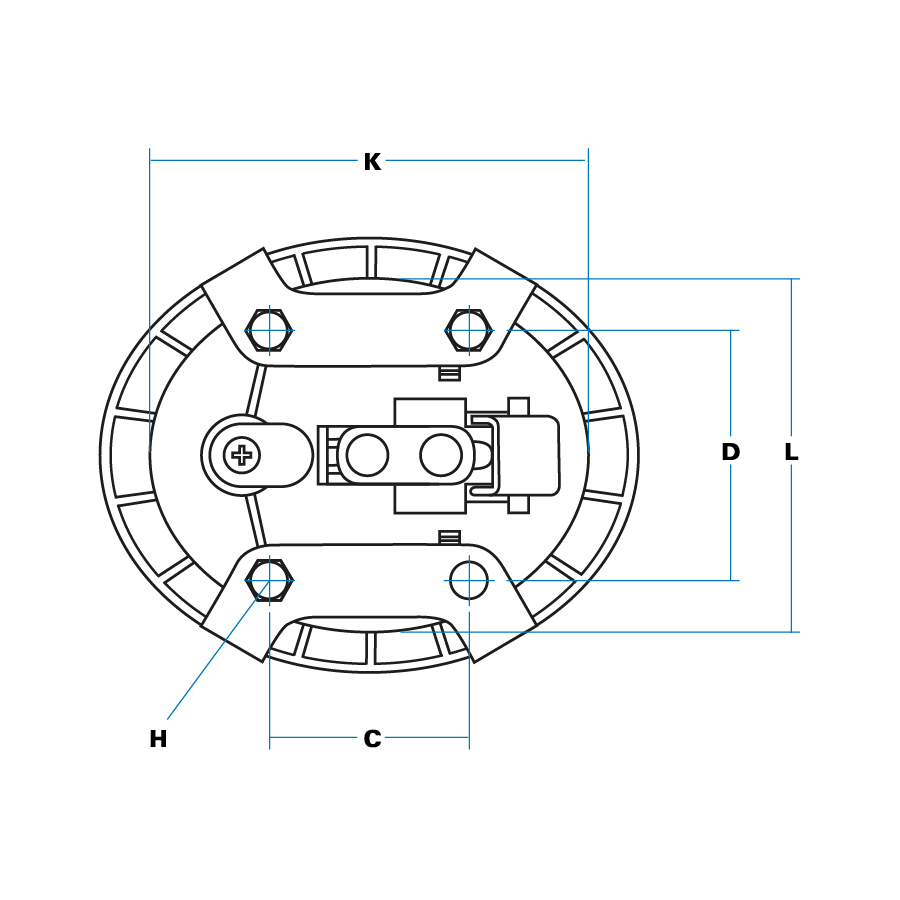

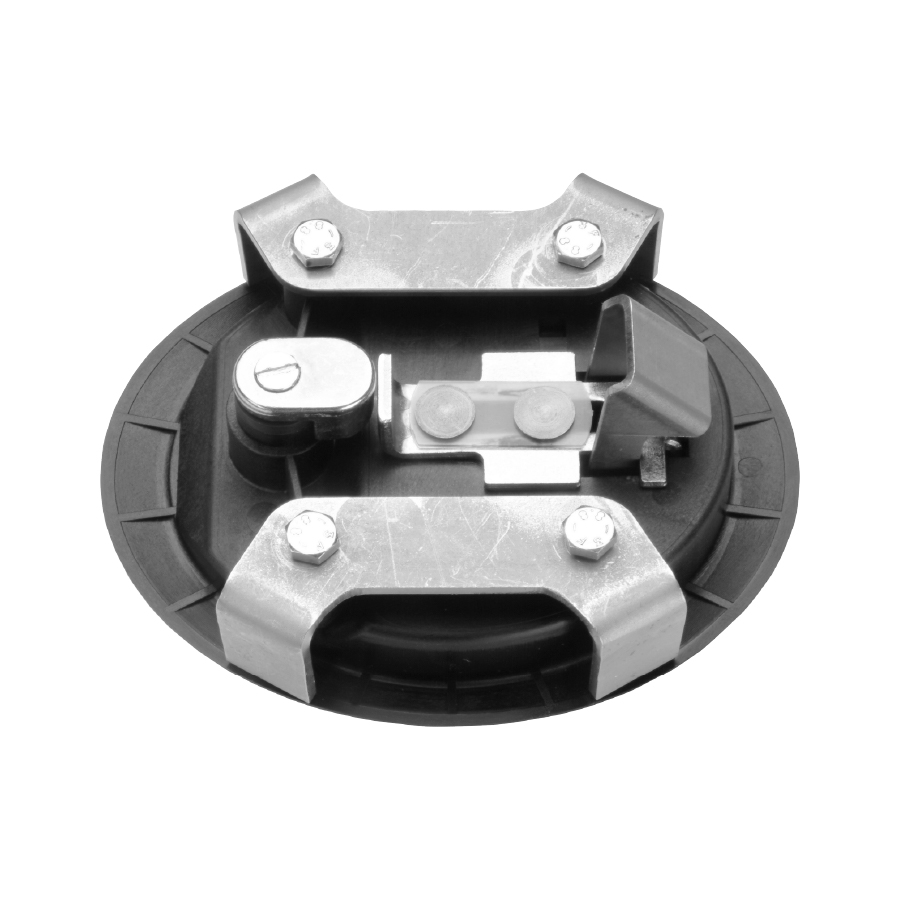

Rear view, illustrating clamping brackets and securing bolts (gasket not shown).

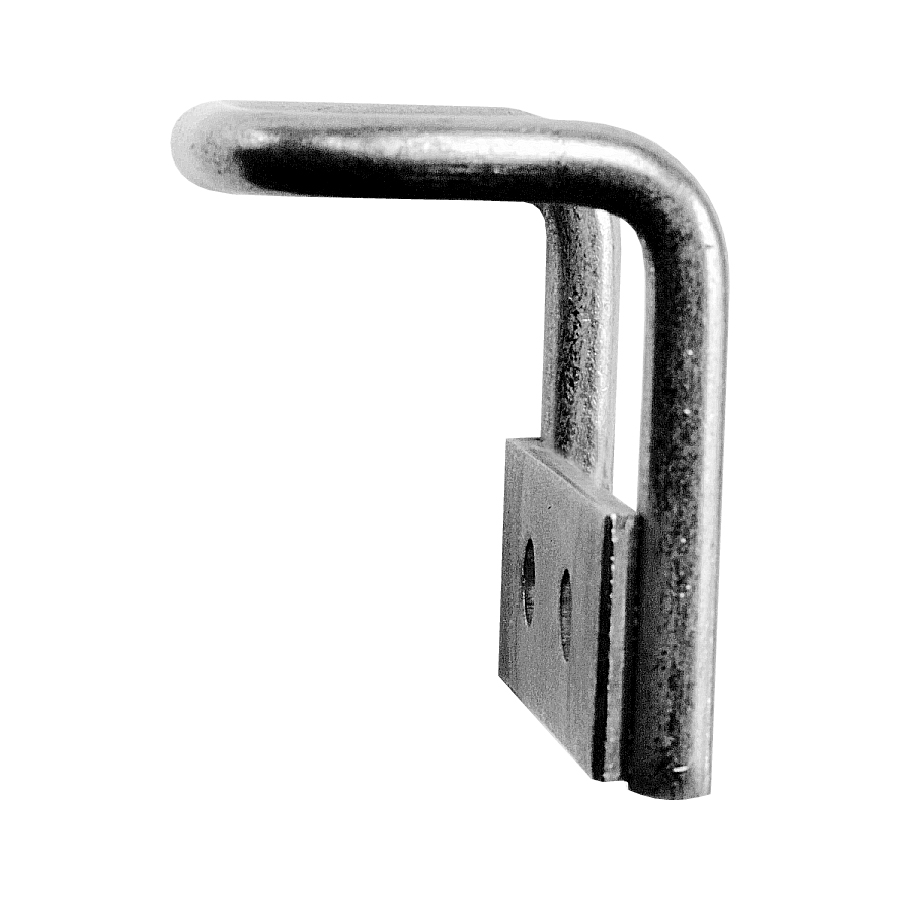

9/00406 - Loop striker in stainless steel

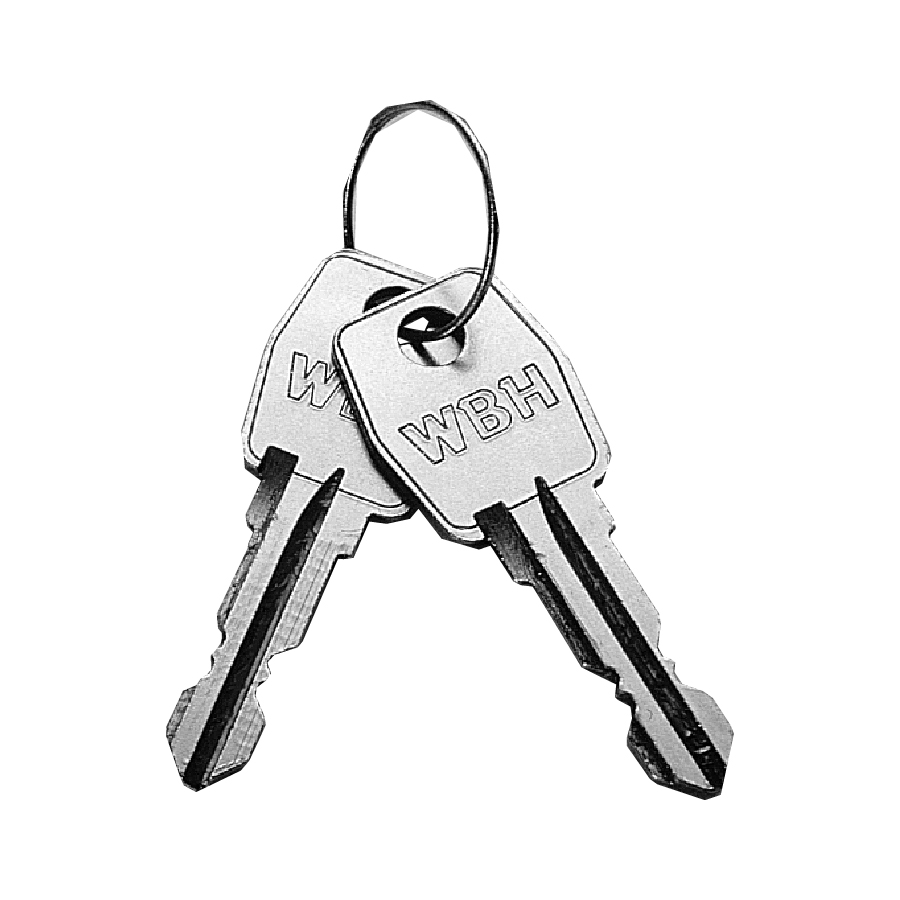

“FT” double-sided keys as standard
Ordering Code
| 9/03440 | Oval paddle, hook-latch, locking |
| 9/03440/01 | As above, standard keys FT111 |
| 9/00406 | Loop striker (stainless steel) |
Specification

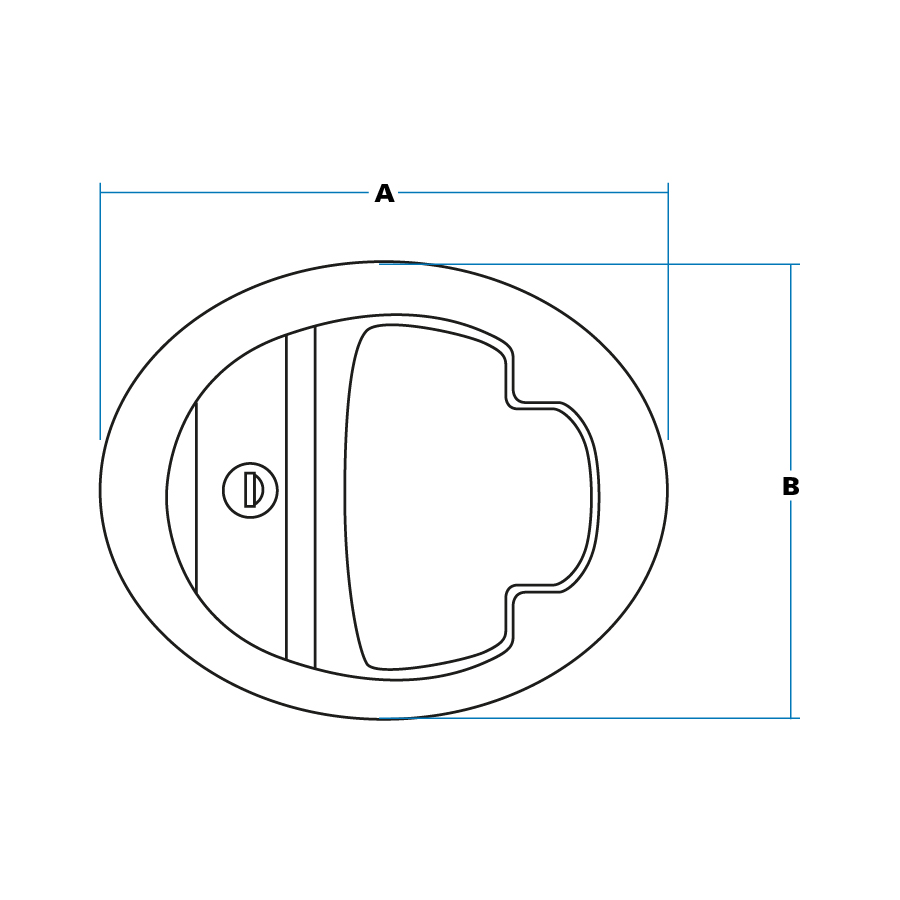

| A | Case length | 150 mm |
| B | Case width | 120 mm |
| C | Fixing centres | 56 mm |
| D | Fixing centres | 70 mm |
| E | Hook width (not shown) | 22 mm |
| F | Hook penetration | 32 mm |
| G | Hook engagement | 12 mm |
| H | Hole sizes | M6 x 10mm |
| J | Maximum depth | 53 mm |
| K | Recess length | 120 mm |
| L | Recess width | 100 mm |
- As door closes the ramped face of the hook meets striker and is forced laterally. Once closed, the spring action secures hook under striker loop.
- ‘Deadbolt’action, so that when key cylinder is locked, both flap and hook are held rigid. Paddles will not slam in locked condition.
- Unit fits through aperture, is clamped against panel by two shaped brackets, and secured by bolts into four threaded bosses. Gasket provided.
- Double-sided ‘FT’ keys with shuttered keyway, or optionally ‘FS’ keys.
- Black, self-coloured, with lightly-textured finish.
- Case & flap in glass-filled nylon, mild steel components are zinc plated for corrosion resistance.
- Alternative, deeper hook (F= 44mm). Special key numbers and sets.
