Ordering Code

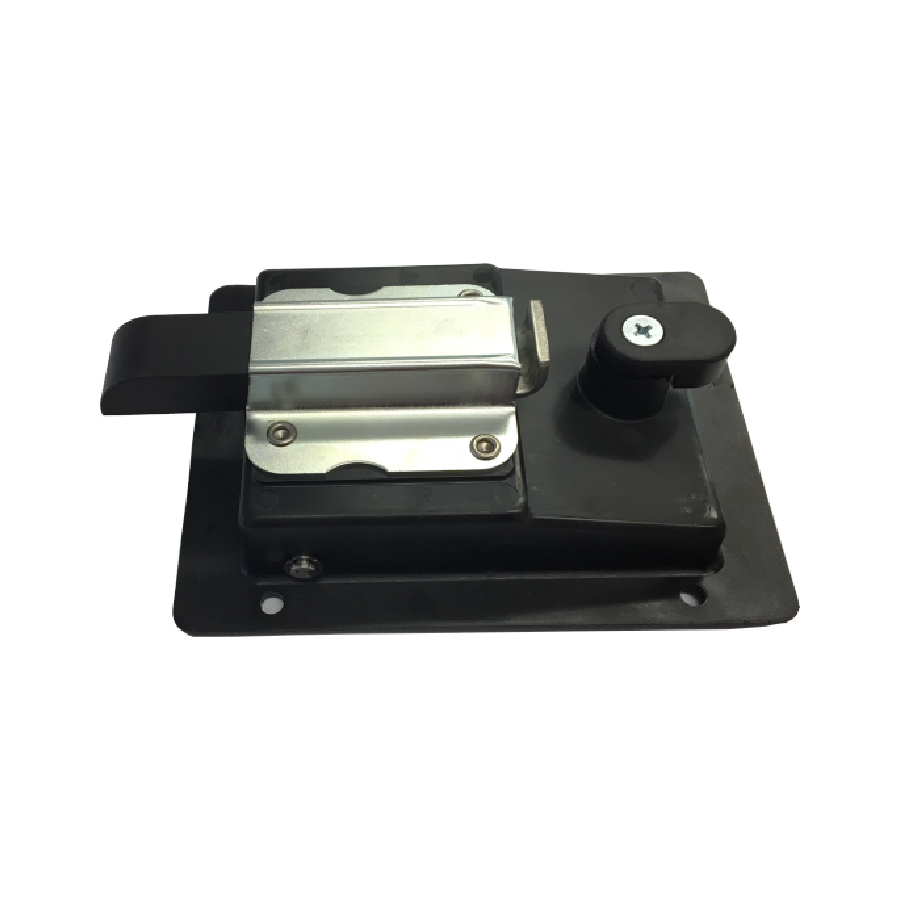

| 9/00465 | Moulded Light Duty Paddle, Slam Bolt |

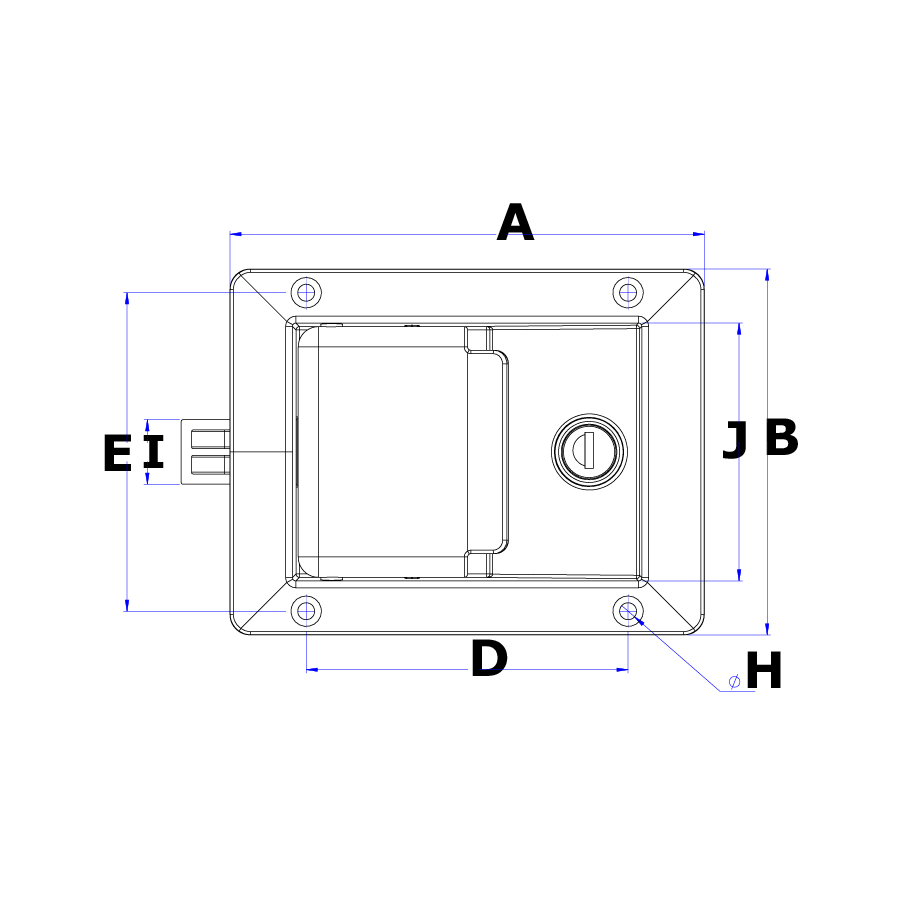

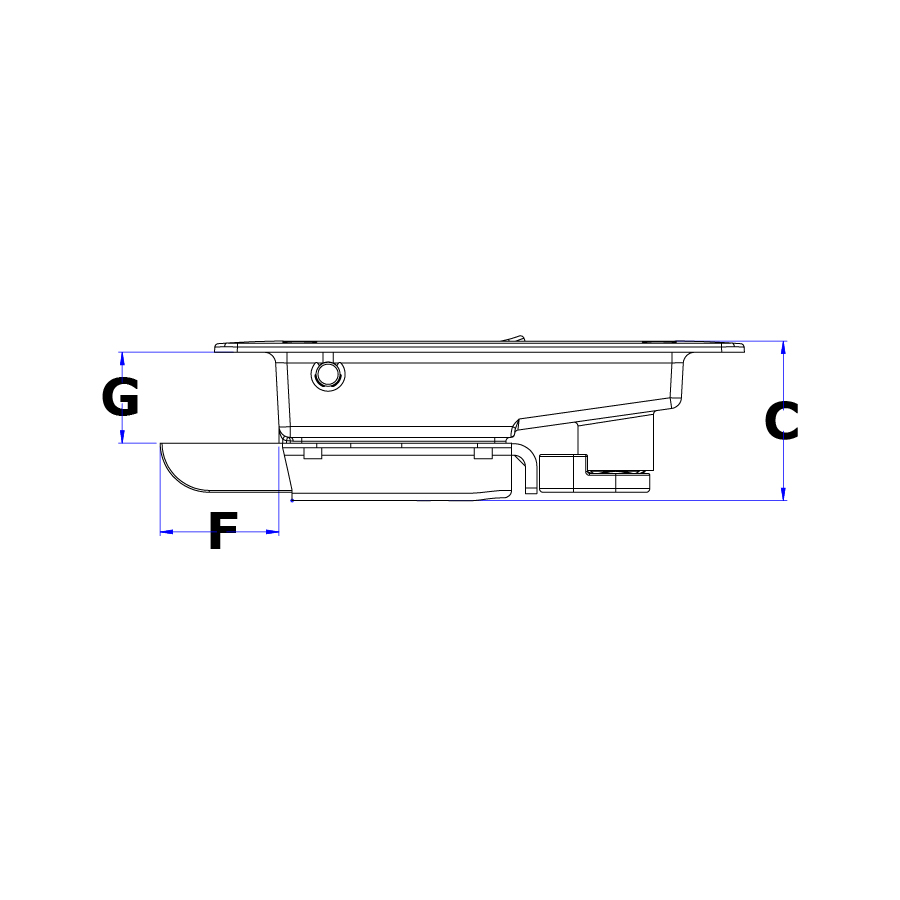

Specification
| A | Pan Length | 140mm |
| B | Total Width | 108mm |
| C | Height | 42mm |
| D | Hole PCD Length | 95mm |
| E | Hole PCD Width | 94mm |
| F | Max Bolt Projection | 31.4mm |
| G | Bolt Depth | 24mm |
| H | Hole | Ø5mm |
| I | Bolt Width | 19.5mm |
| J | Handle Width | 74mm |
