Ordering Code
| 9/00475 | Moulded Light Duty Paddle, Hook Latch |

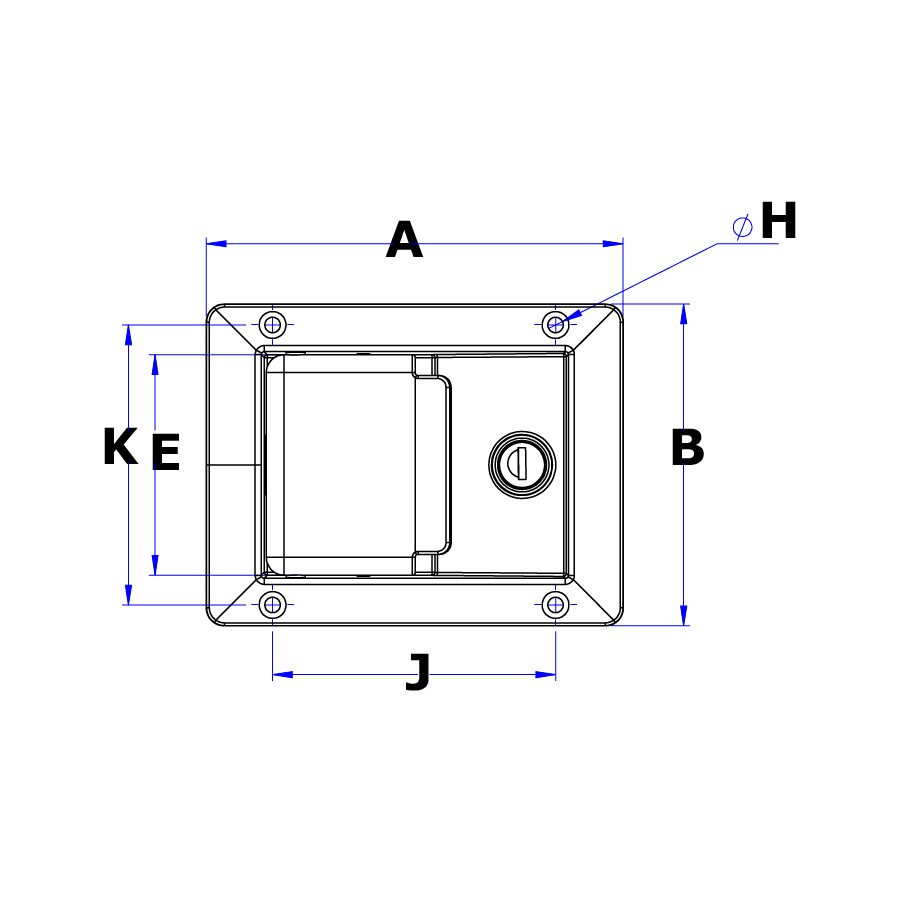

Specification
| A | Pan Length | 140mm |
| B | Total Width | 108mm |

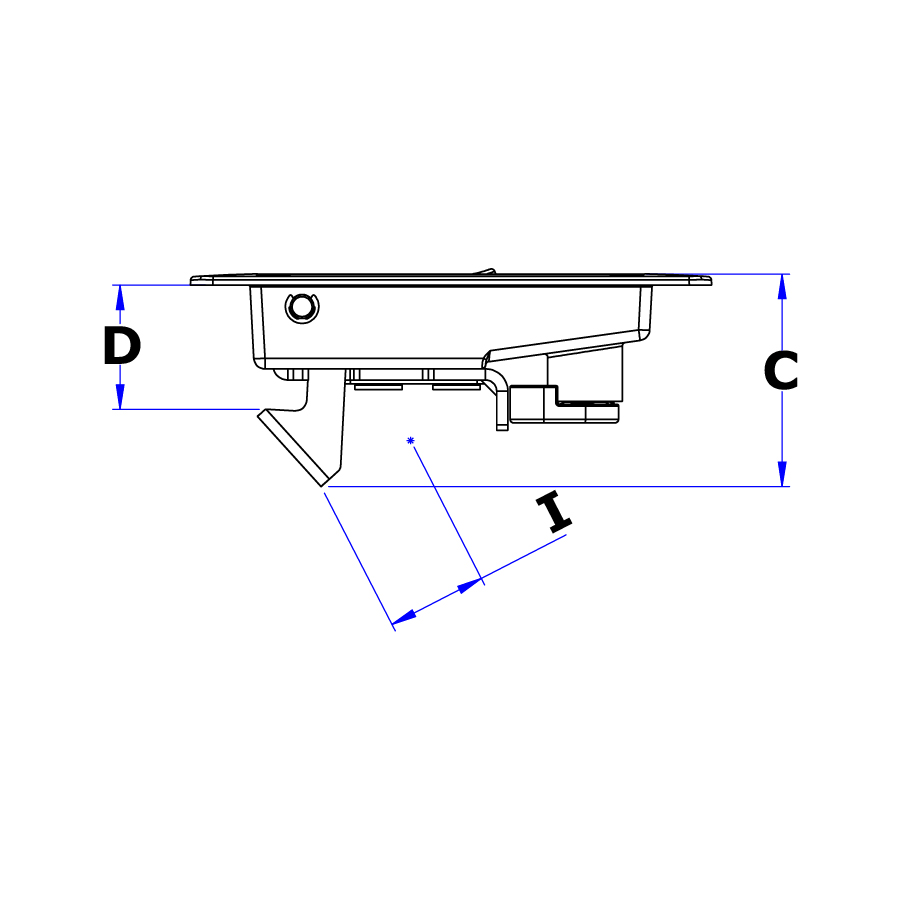

| C | Height | 58.5mm |
| D | Hook Pen - Std | 32mm |
| E | Handle Width | 74mm |

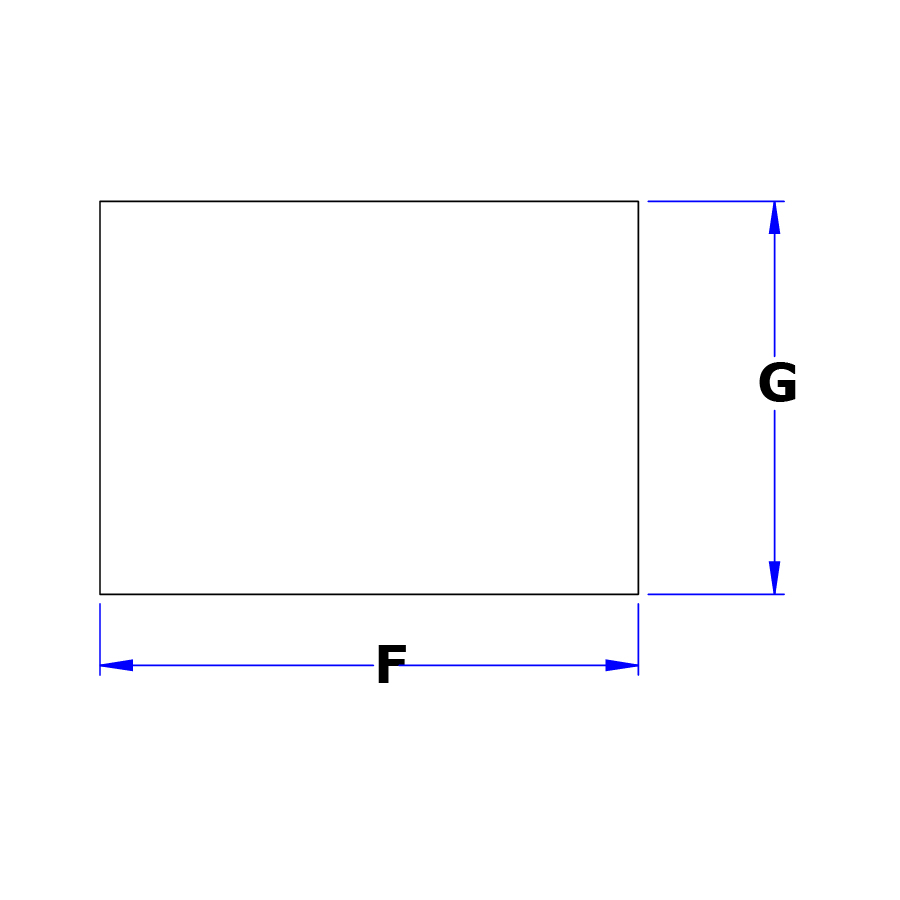

| F | Recess Length | 111mm |
| G | Recess Width | 81mm |
| H | Hole | Ø5.2mm |
| I | Max Travel | 27mm |
| J | Hole PCD Length | 95mm |
| K | Hole PCD Width | 94mm |
