Ordering Code

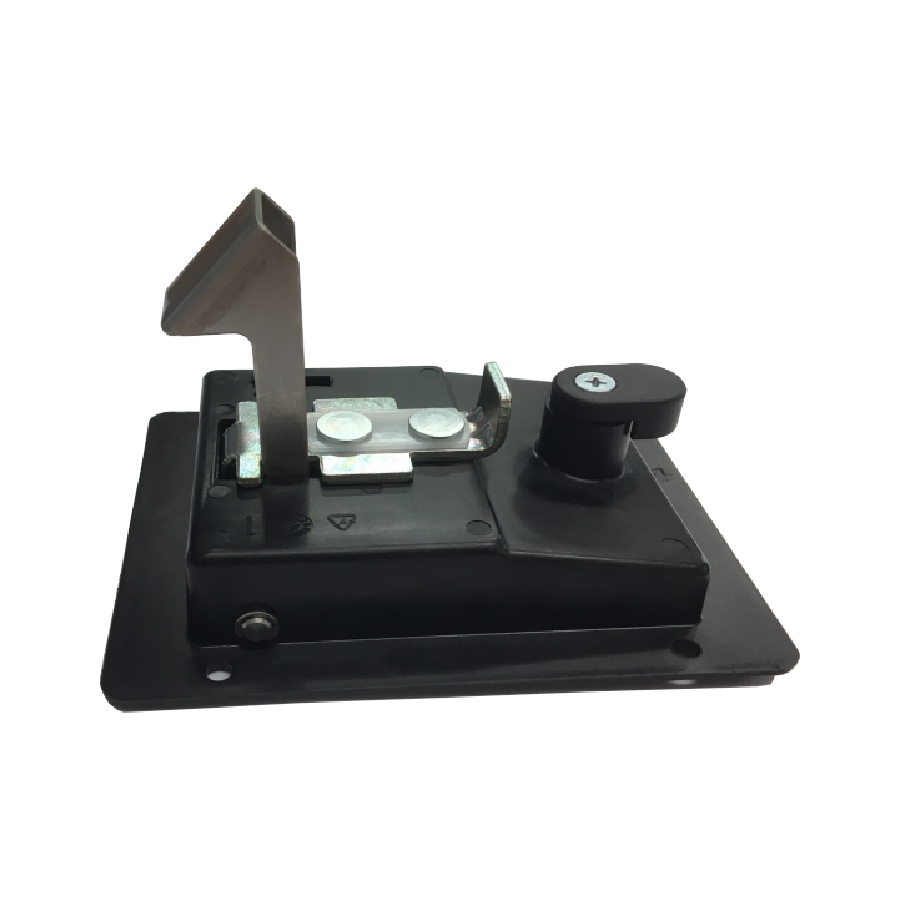

| 9/00476 | Moulded Light Duty Paddle, Extended Hook Latch |

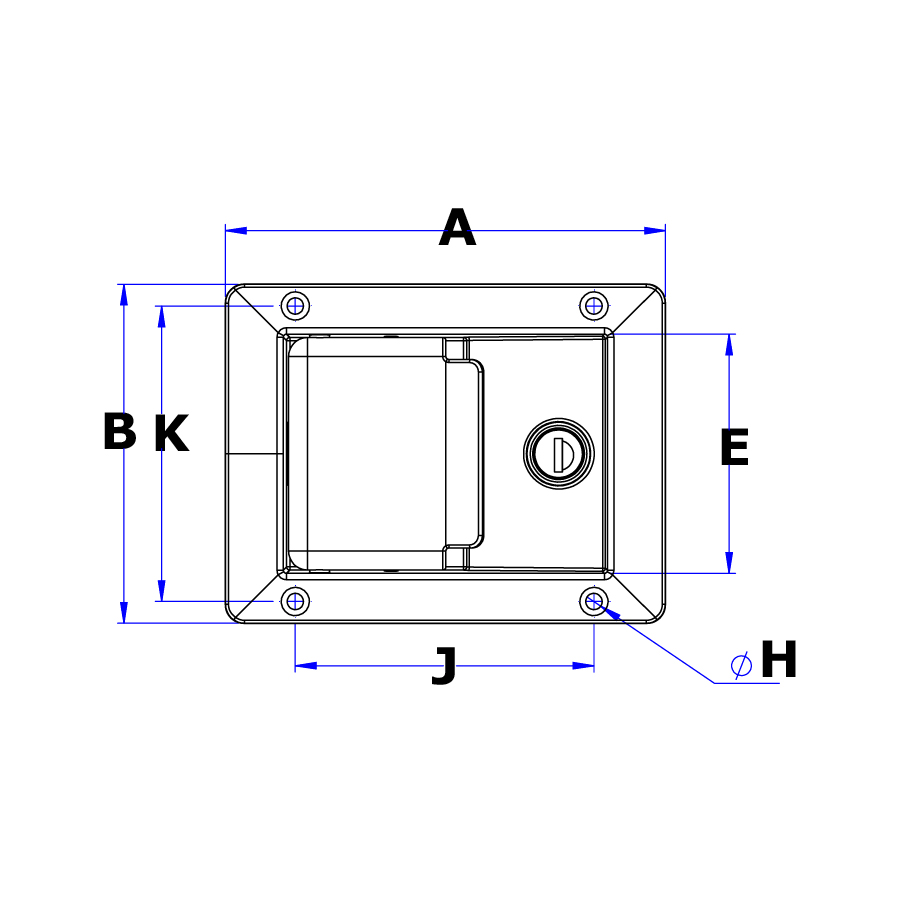

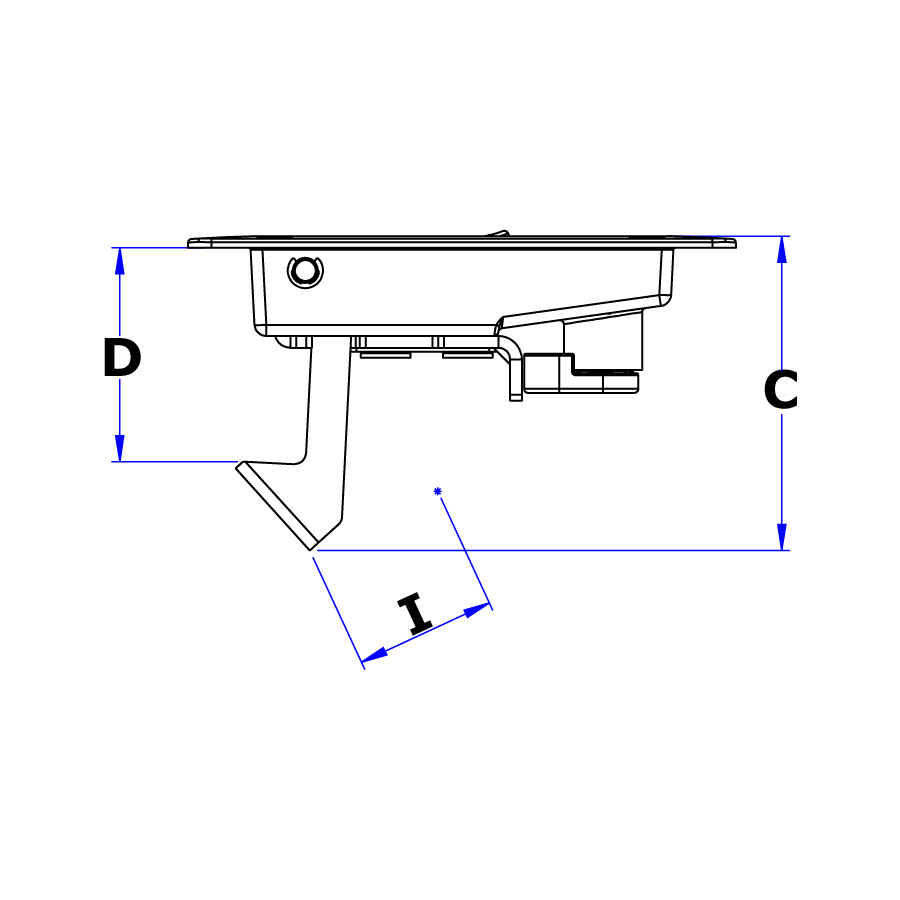

Specification
| A | Pan Length | 140mm |
| B | Total Width | 108mm |
| C | Height | 80mm |
| D | Hook Pen - Ext | 55mm |
| E | Handle Width | 74mm |

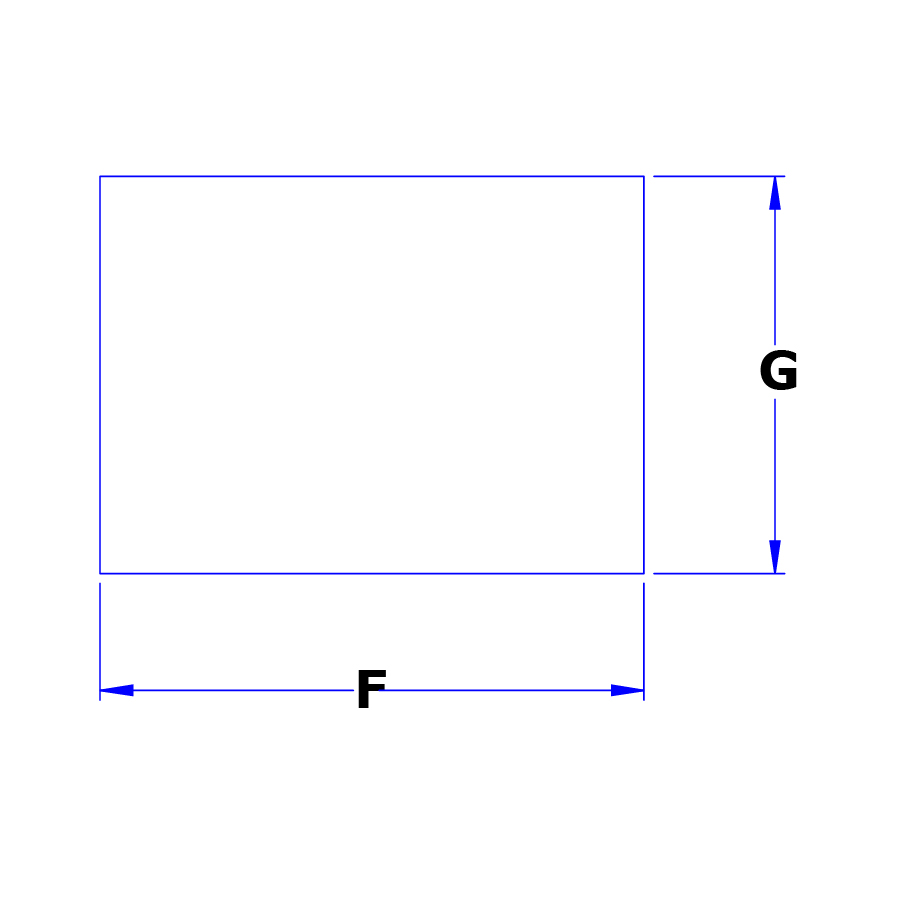

| F | Recess Length | 111mm |
| G | Recess Width | 81mm |
| H | Hole | Ø5.2mm |
| I | Max Travel | 40.5mm |
| J | Hole PCD Length | 95mm |
| K | Hole PCD Width | 94mm |
- Light weight and easy to fit.
- 45° Handle Raise, 12mm Bolt Retraction.
- 4 x M5 Clearance Holes.
- Black (Self-Coloured) with Fine Textured Finish.
- PA6 Nylon with 30% Glass-Fill Strengthening, UV Stabilised + Zinc Plated CR4 Steel Brackets.
