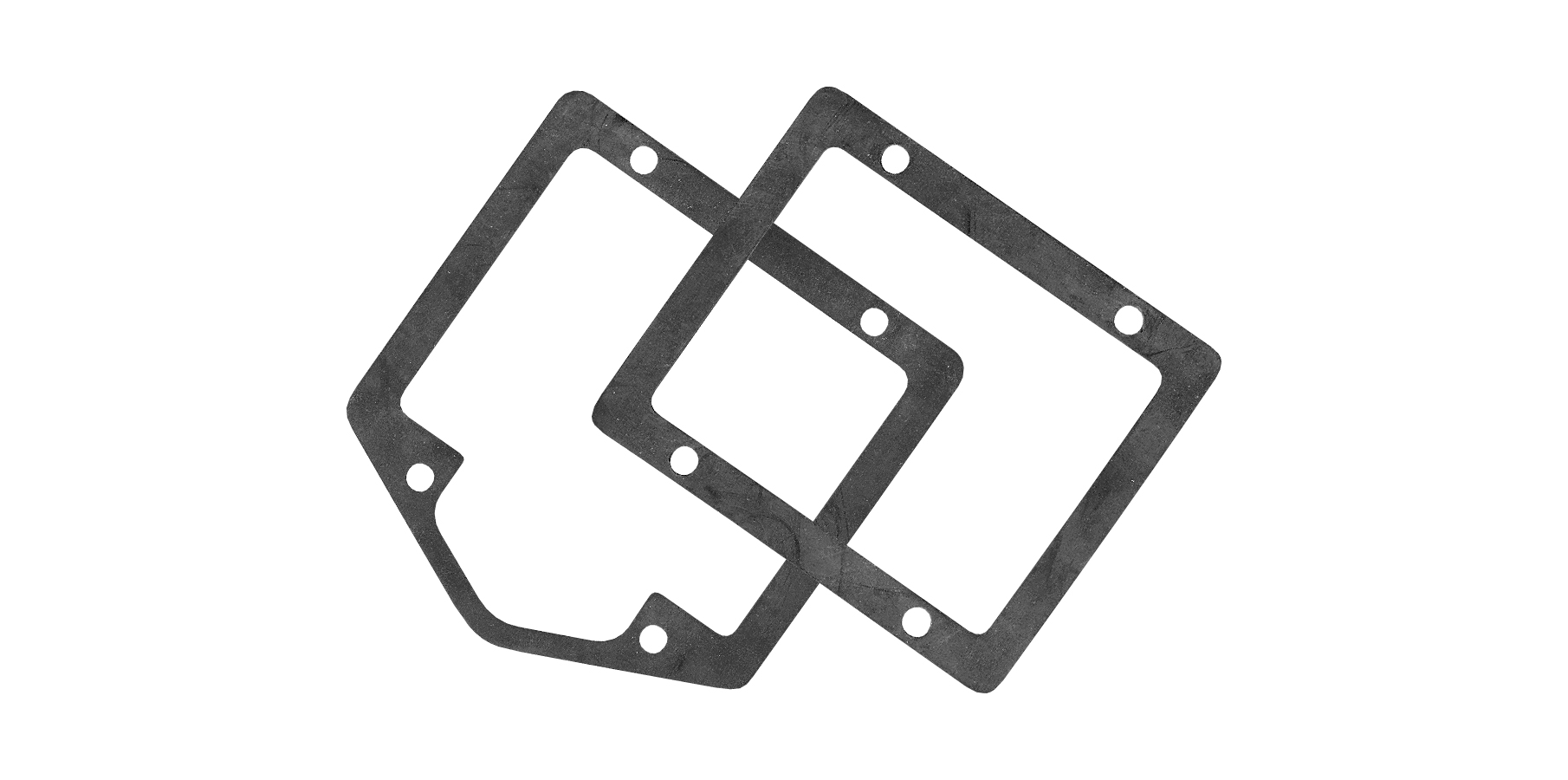

‘Drop-T’ Models Standard Panel Piercing Dimensions

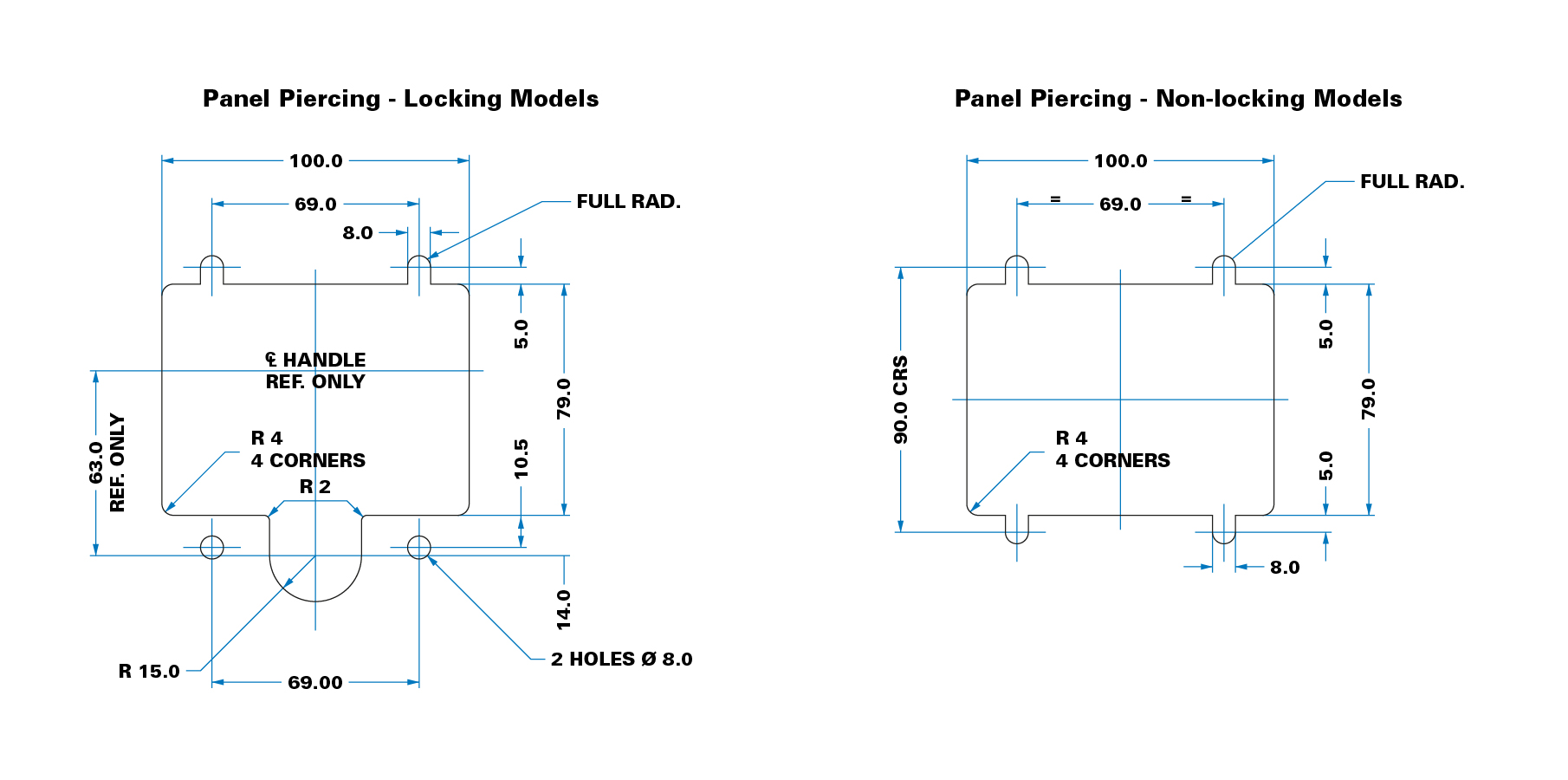

The illustrations show recommended panel-piercing dimensions for all models of ‘Drop-T’ latches, both locking and non-locking models.

Open fixing versions can be mounted using M6 or 1/4 inch dome-headed bolts (or equivalent rivets), and appropriate washers and securing nuts. Concealed-fixing versions have 4-off weld studs, M6 x 15mm, at same positions.

‘Drop-T’ with Square Shaft

To special order our drop-T models can be supplied with an 8mm-square shaft rather than with latch bar. Enquire to sales office.
