Complete system, supplied with rods and guides. Assembled and ‘handed’ on site. Stainless steel or zinc-plated

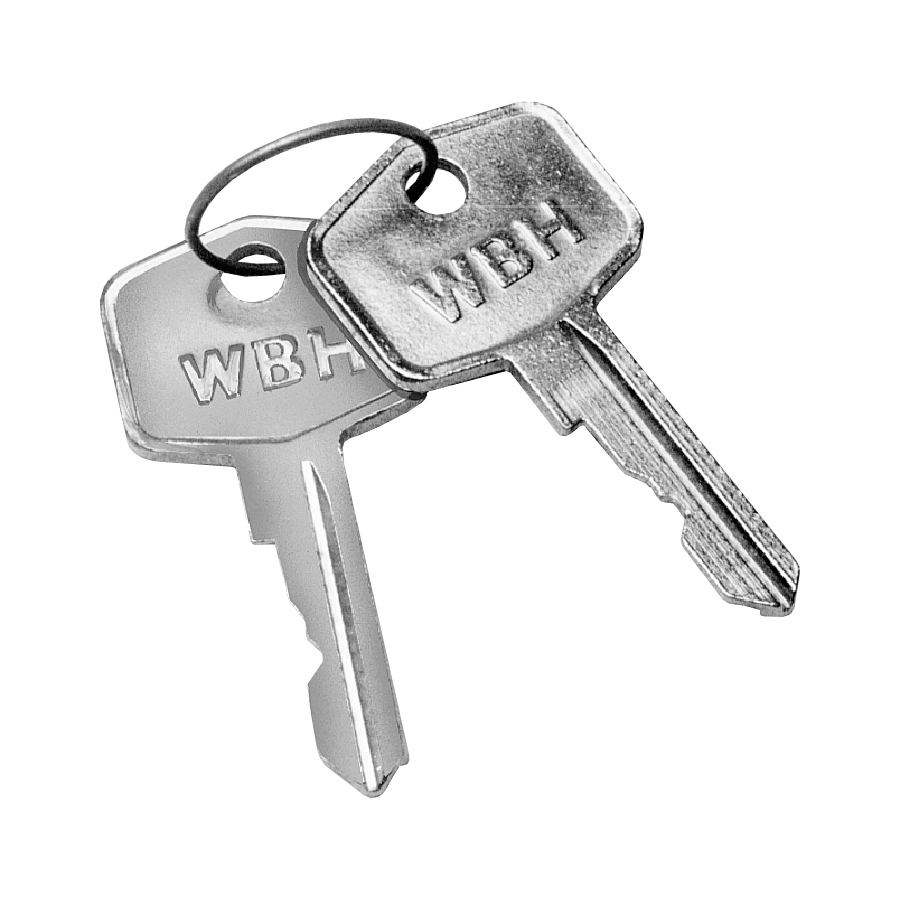

Single-sided ‘FS’ keys as standard
Ordering Code
| 9/01561 | 3-way Drop-T set, stainless,mixed differ, c/w rods |
| 9/01561/01 | As 9/01561, FS880 |
| 9/01562 | 3-way Drop-T set, mild steel,mixed differ, c/w rods |
| 9/01562/01 | As 9/01562, FS880 |
| 9/01567 | Centre only, 3-way Drop-T,stainless |
| 9/01567/01 | As 9/01567, FS880 |
| 9/01568 | Centre only, 3-way Drop-T,mild steel |
| 9/01568/01 | As 9/01568, FS880 |

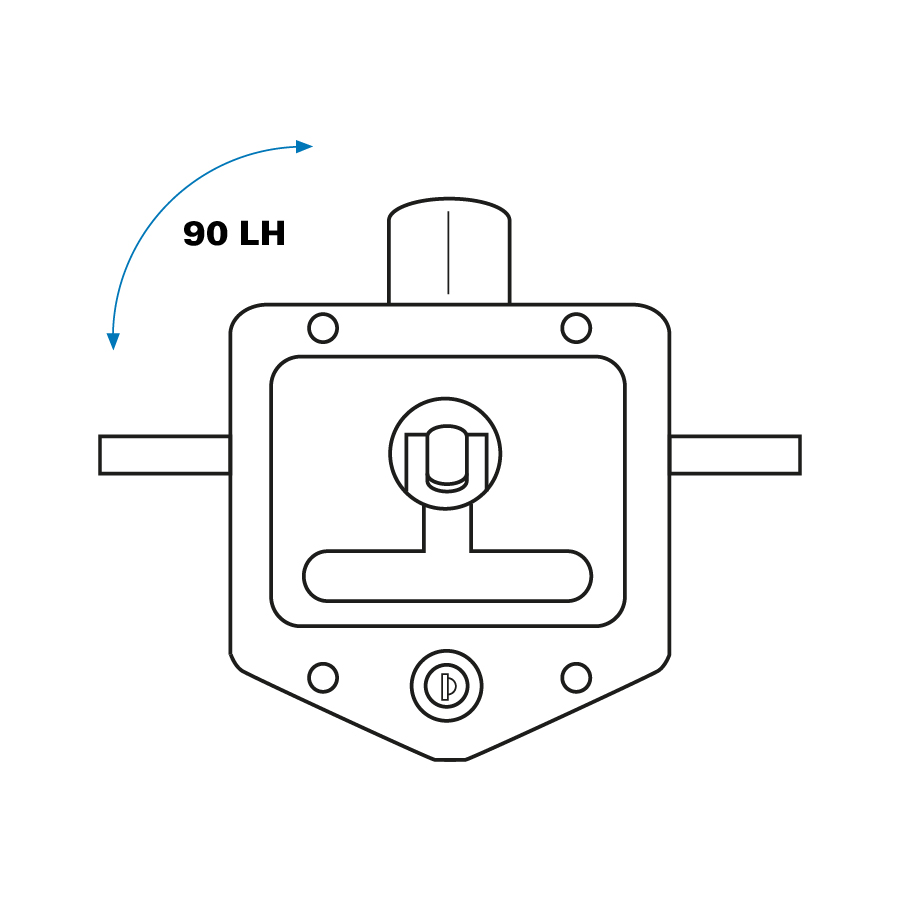

Set at factory for 90° LH but ‘stops’ are reversible on site

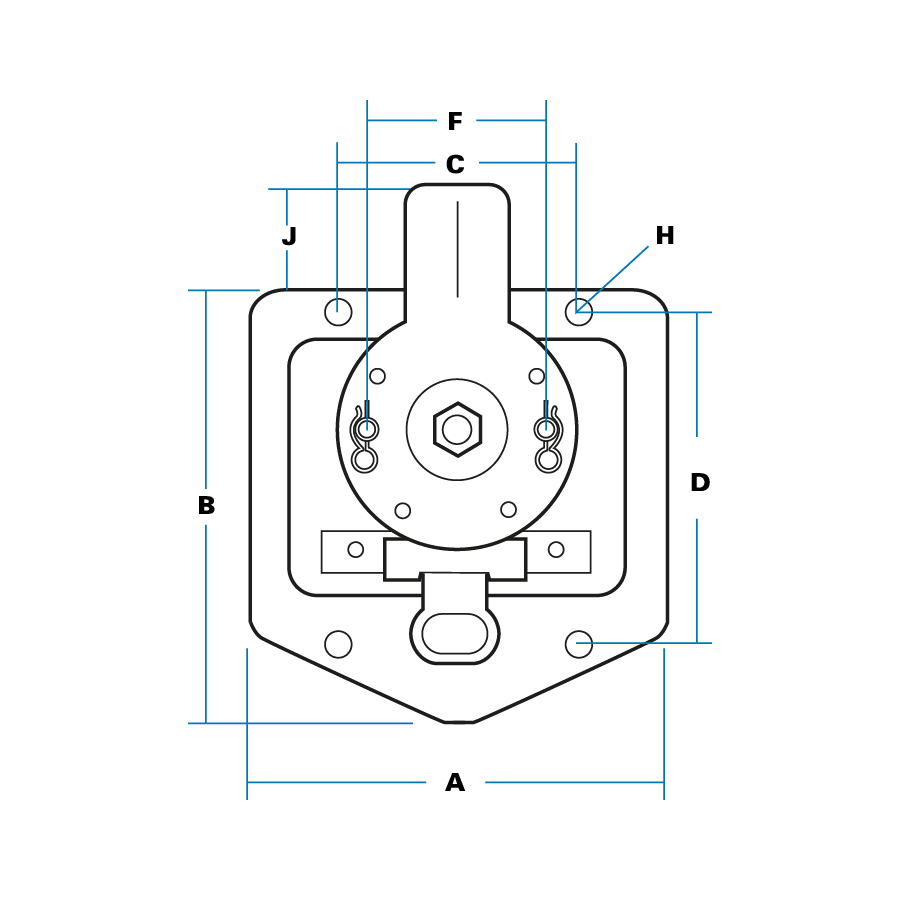

Specification
| A. | Width of pan | 120 mm |
| B. | Length of pan | 125 mm |
| C. | Hole centres | 69 mm |
| D. | Hole centres | 95 mm |
| E. | Max depth | 45 mm |
| F. | Rod fixing centre | 52 mm |
| G. | Length of latchCam depth | 70 mm3 mm |
| H. | Hole sizes (dia) | 7.5 mm |
| I. | Engagement | 27 mm |
| J. | Visible length | 30 mm |

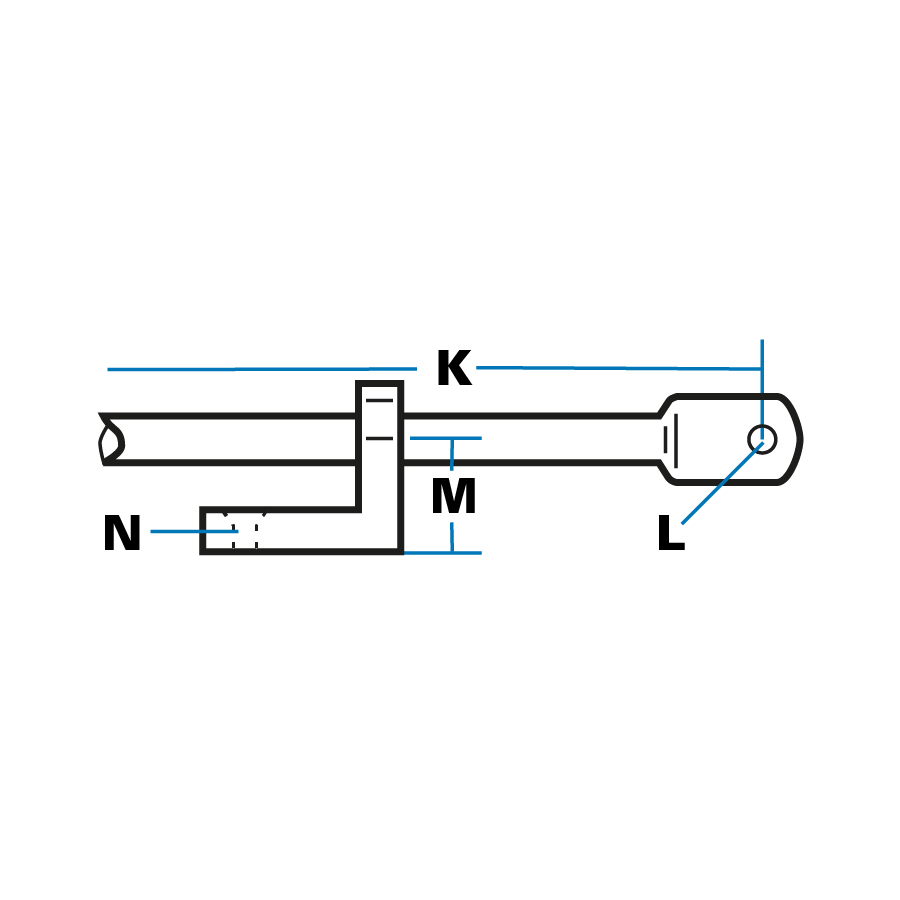

| K. | Rod length | 1145 x 9.5 mm |
| L. | Hole dimension | (dia) 7.5 mm |
| M. | height to central line | 14 mm |
| N. | Hole sizes | (dia) 5mm c/s 10 mm |
Rods withdraw by 25mm in line of travel, as latch disc rotates through 90°.Rod Ref (3/18702) Guides Ref (3/18716)
- Polished diecast ‘hub’, and neoprene seal under stainless ‘cup’ washer for good appearance, corrosion-resistance and weatherproofing.
- Lift handle to turn, releasing latch tongue and withdrawing rods. Reverse to close. Tongue has 3mm cam-form for easy engagement.

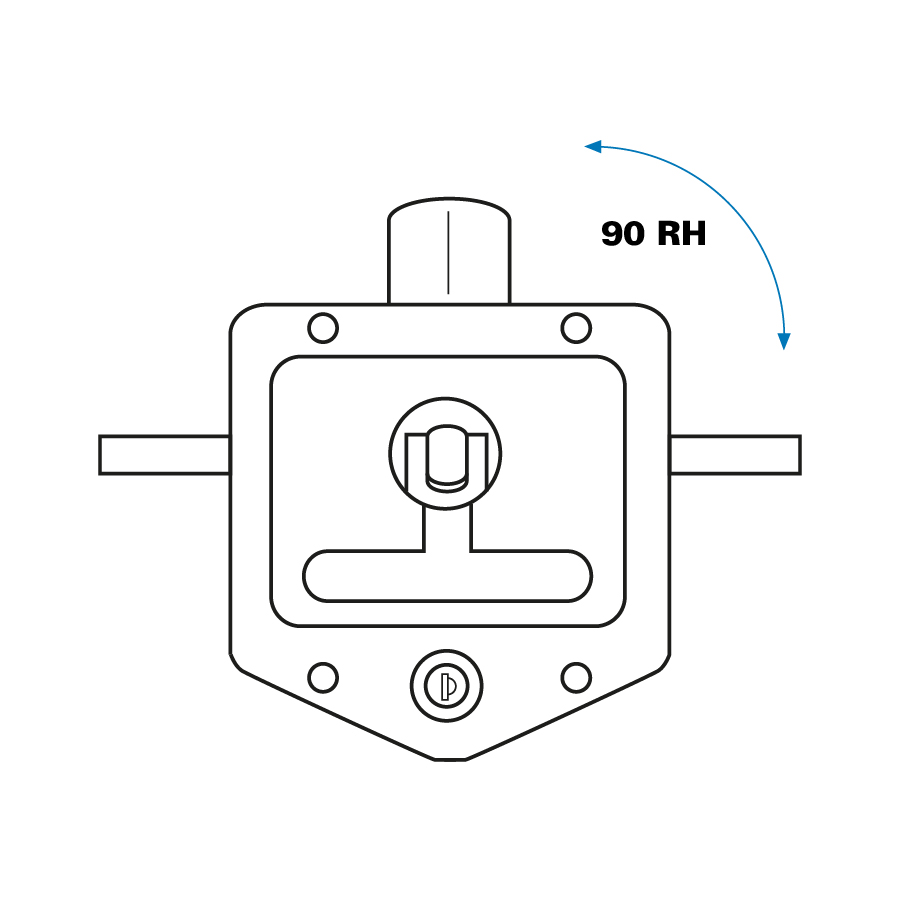

- Latch travels 90° from centre against ‘stops’, which can be adjusted to allow either LH or RH operation.
- Four holes in flanges at 7.5mm diameter. Rods are secured by split pins through pillar rivets.
- ‘FS’ keys as standard, with shuttered keyway. Optionally ‘FT’, ‘92’ or ‘DLP’ keys.
- Polished stainless steel with chrome handle and hub, or mild steel, zinc-plated. Optionally, black powder-coated.
- ‘T’ pan in 2mm stainless steel, Grade 304, bright polished, or mild steel to CR4, zinc-plated. ‘T’ handle and hub are zinc diecast, polished and chromium-plated or zinc-plated.
- Special rod lengths. Plain flanges or ‘blind-mounting’ with M6 welded studs. Non-locking and 2-way models, cranked tongues, etc. Weathershield options.
