9/01621 2-way slam latch system

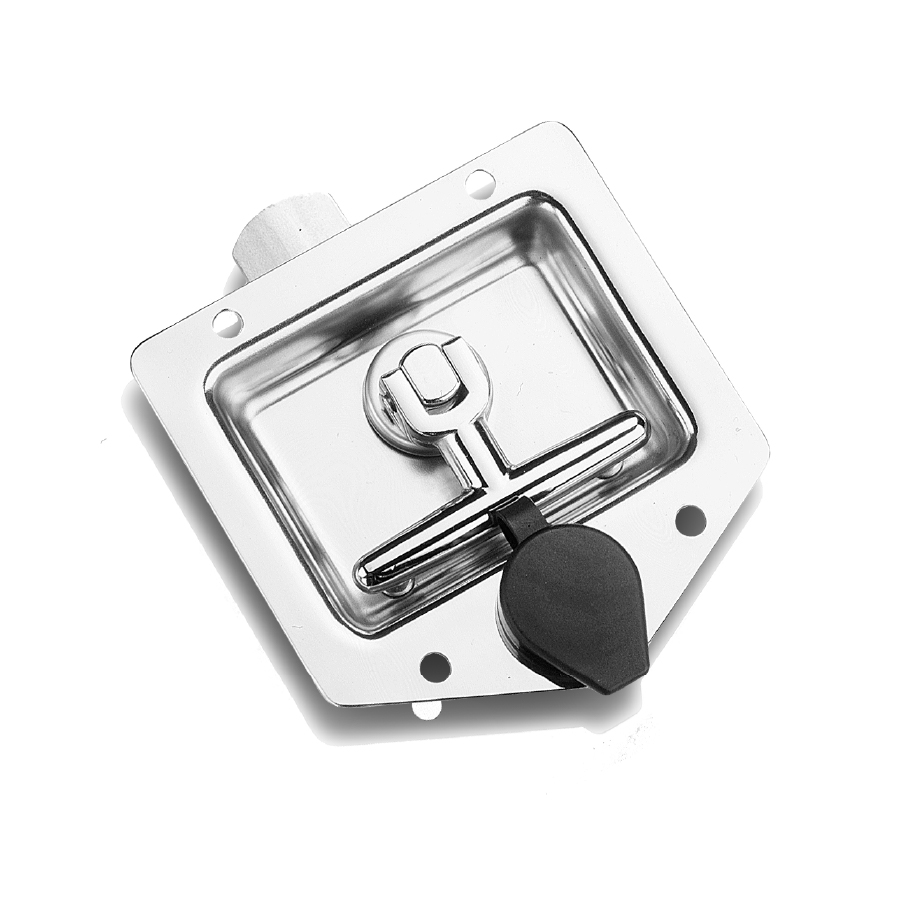

‘Drop-T’ with flip-up moulded cap 9/00929 To order, add suffix “/MC” to our normal part number.

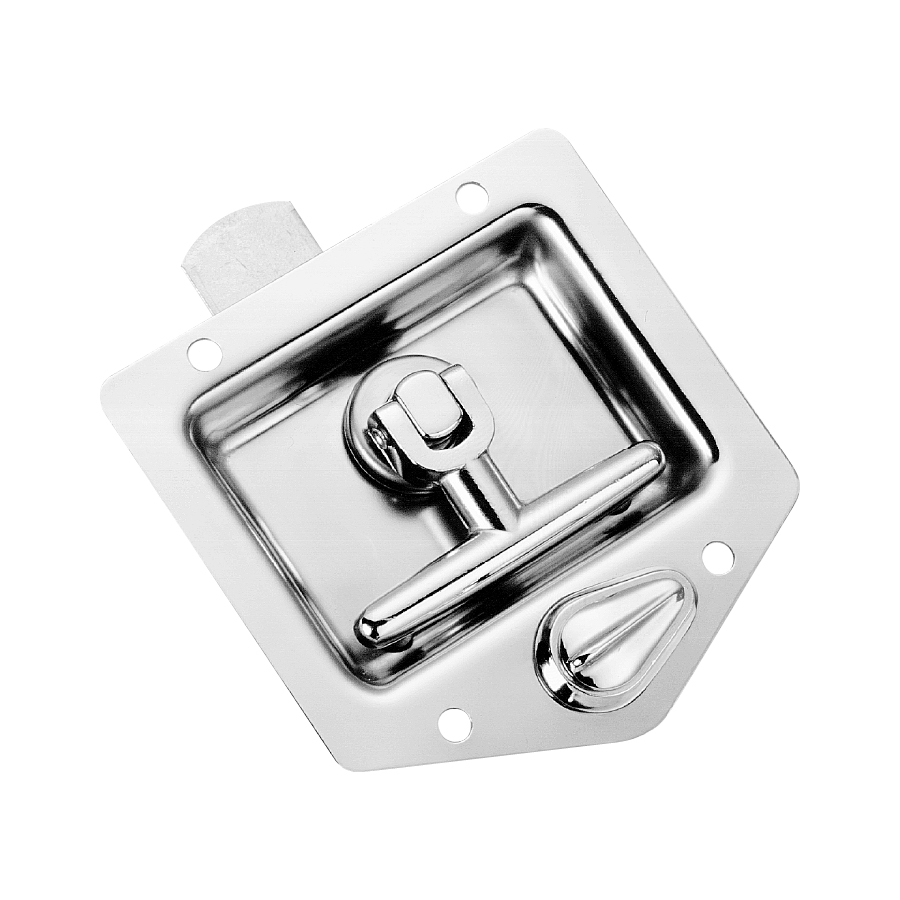

‘Drop-T’ with sliding weathershield cover, using lock 7/08996 To order, add suffix “/WS” to our normal part number.
Ordering Code
| 9/01621 | 2-way Drop-T slam system,stainless case, mixed differ. |
| 9/01621/01 | As above FS880 |
| 9/01623 | 2-way centre only, stainless, mixed differ. |
| 9/01623/01 | As above FS880 |
| 9/01624 | 2-way centre, mild steel,mixed differ. |
| 9/01624/01 | As above FS880 |
| 3/18702 | Rod only, 1145mm |
Non-locking models also available.
Slam systems include end-latches and (flat) link bars, normally in mild steel.

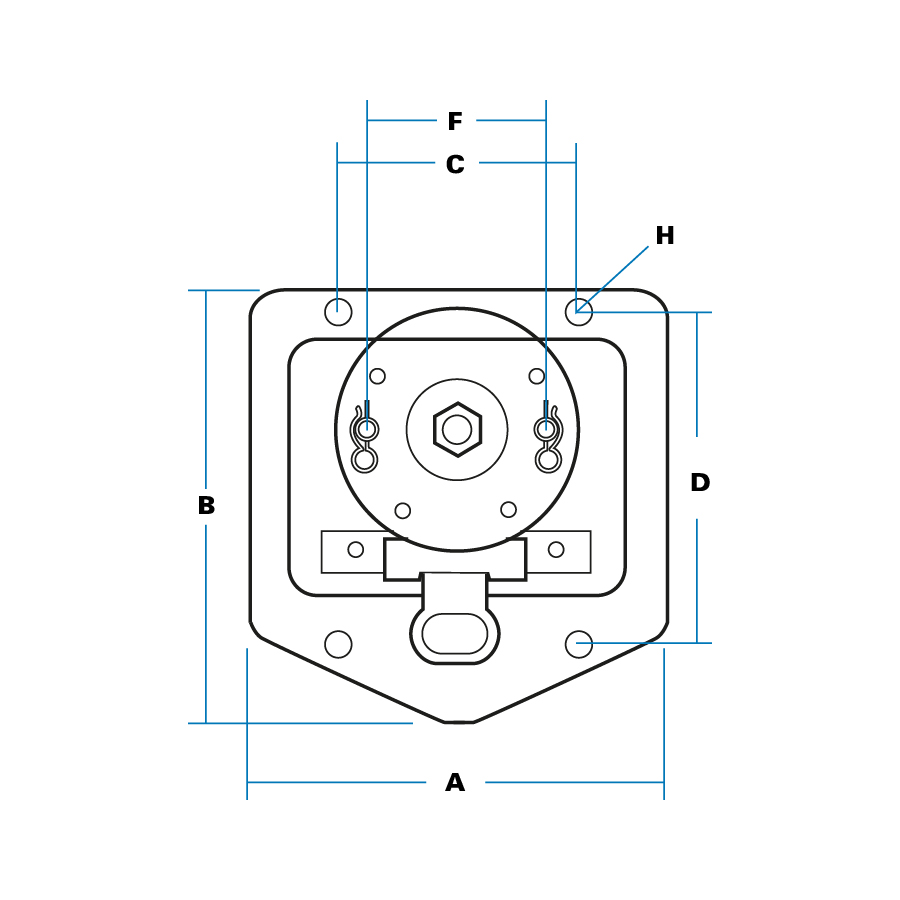

Specification
| A | Width of pan | 120 mm |
| B | Length of pan | 125 mm |
| C | Hole centres | 69 mm |
| D | Hole centres | 95 mm |

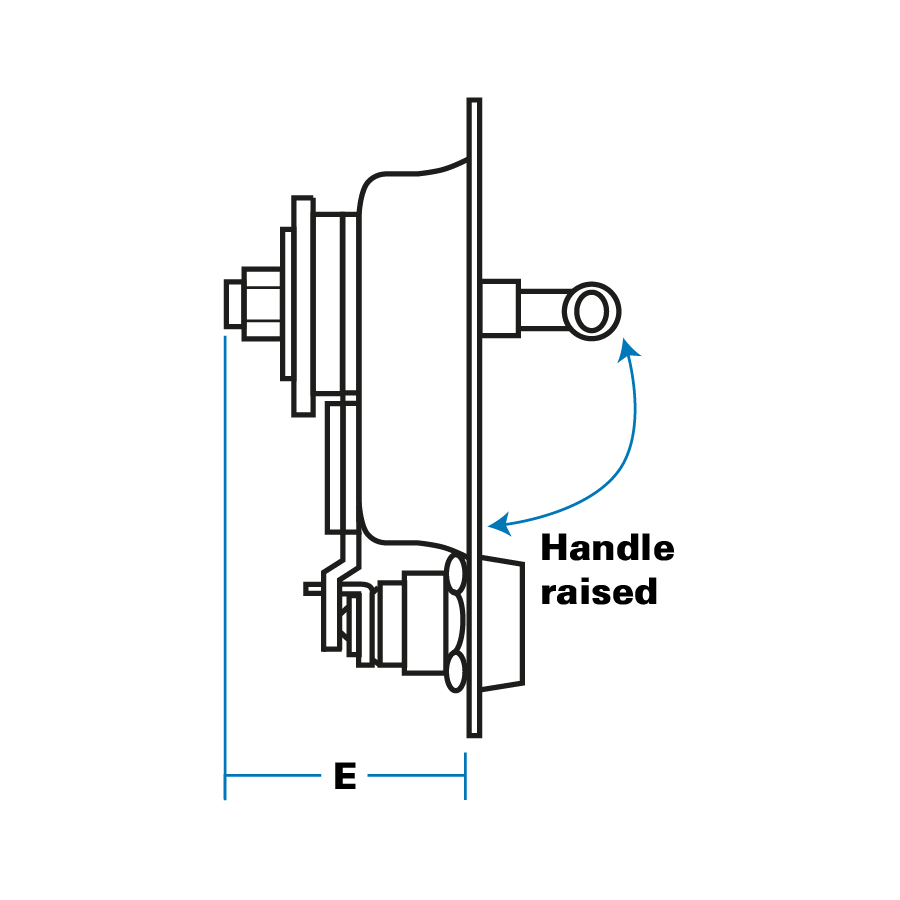

| E | Max depth | 45 mm |
| F | Fixing centres | 52 mm |
| H | Hole sizes (dia) | 7.5 mm |
- Polished diecast ‘hub’, and neoprene seal under stainless ‘cup’ washer for good appearance, corrosion-resistance and weatherproofing.
- Use with 10mm rods as a ‘deadbolt’ latch or with end-latches and link bars as a 2-way slam system.
