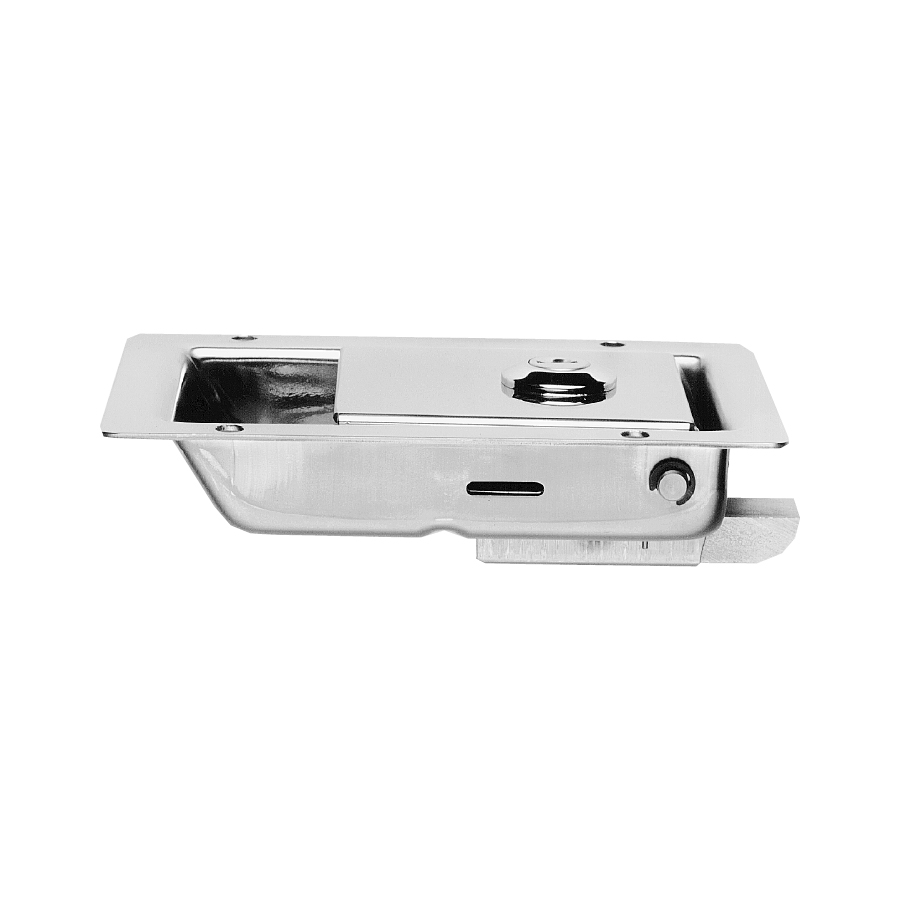

9/02028 (in stainless steel)
Double-sided “FT” keys as standard
Ordering Code
| Stainless steel models with plain rim | |
| 9/02028 | Deep-dish paddle, locking |
| 9/02028/01 | As above, FT111 |
| 9/02029 | Deep-dish paddle, non-locking |
Stud-fixed models - Blind-mounting models have four studs (M6x10mm) welded on inside rim. Consult engineering drawing for position of studs. see page C19
Specification

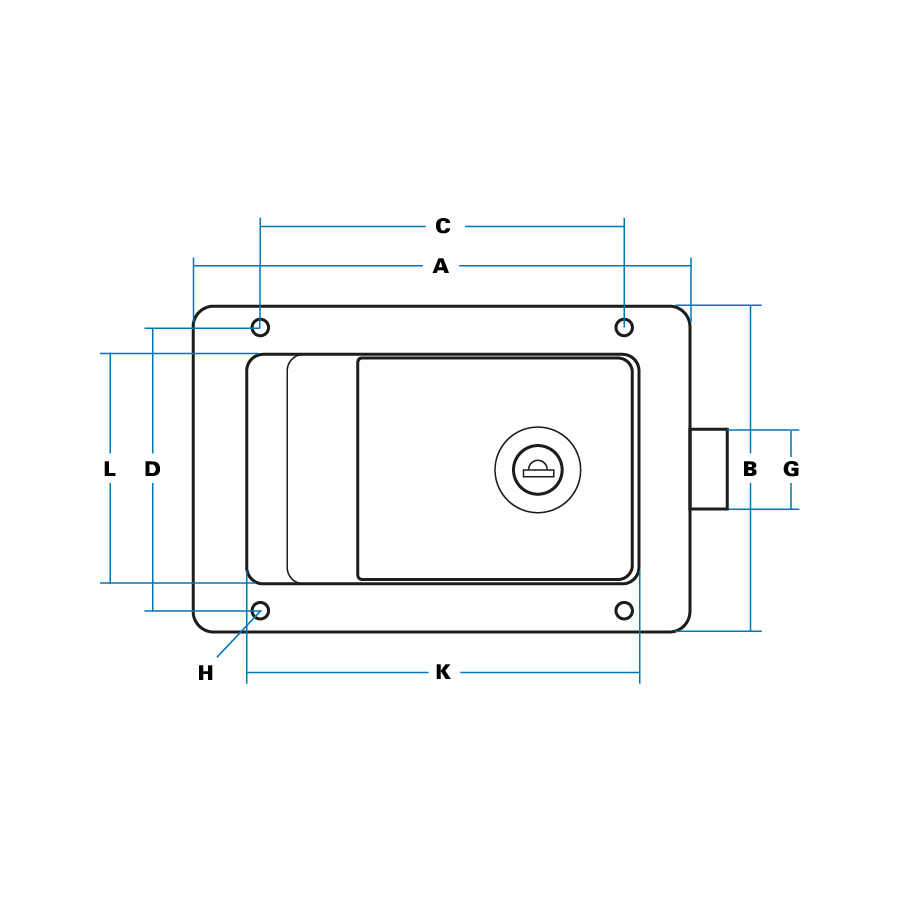

| A | Case length | 170 mm |
| B | Case width | 110 mm |
| C | Hole centres | 100 mm |
| D | Hole centres | 99 mm |

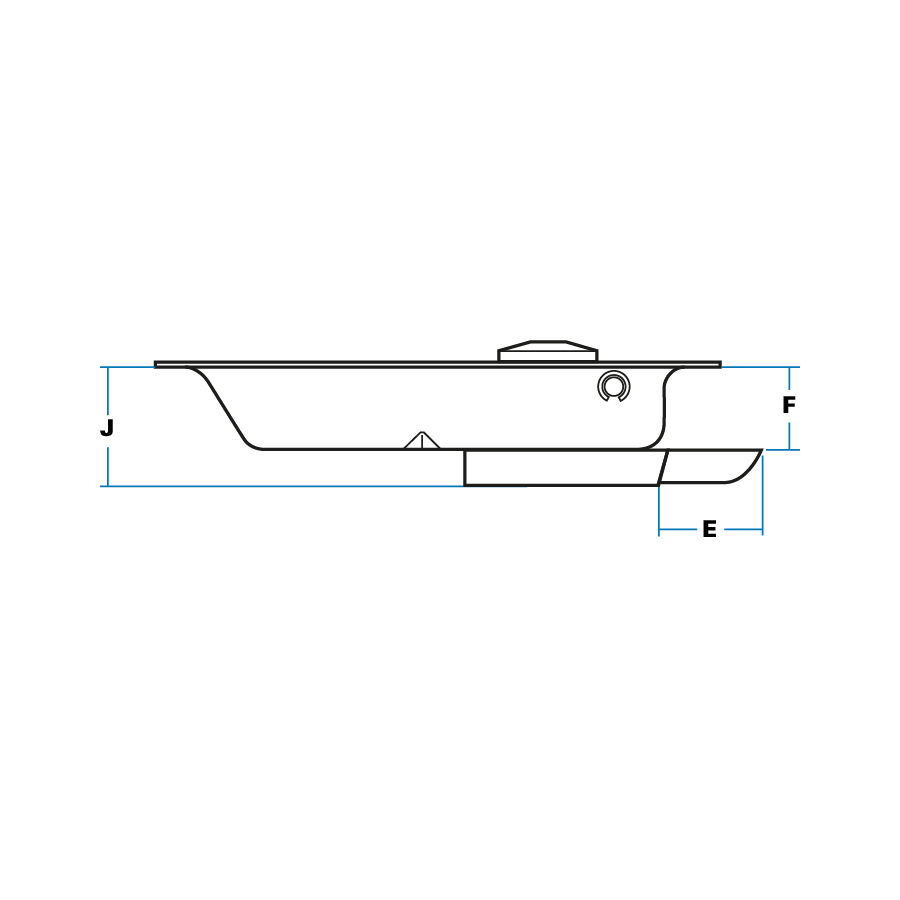

| E | Bolt projection (max) | 28 mm |
| F | Bolt depth | 30 mm |
| G | Bolt width | 19 mm |
| H | Hole sizes (dia) | 7 mm |
| J | Maximum depth | 44 mm |
| K | Recess length | 142 mm |
| L | Recess width | 82 mm |
- Deep dish (30 mm) with internal finger-shield and beaded edge on flap for easy operation. Stainless locking bolt slides on carrier, giving protection against flap being forced. Low-profile lock with double-sided key cylinder as standard.
- Slam action against door frame or striker, released by lifting flap.
- Locking with key blocks movement of flap, but slam bolt can still be slammed and opened from inside.
- Pierced rim, internal welded studs, or plain rim with mild steel models (for weld-on fixing). Gasket supplied.

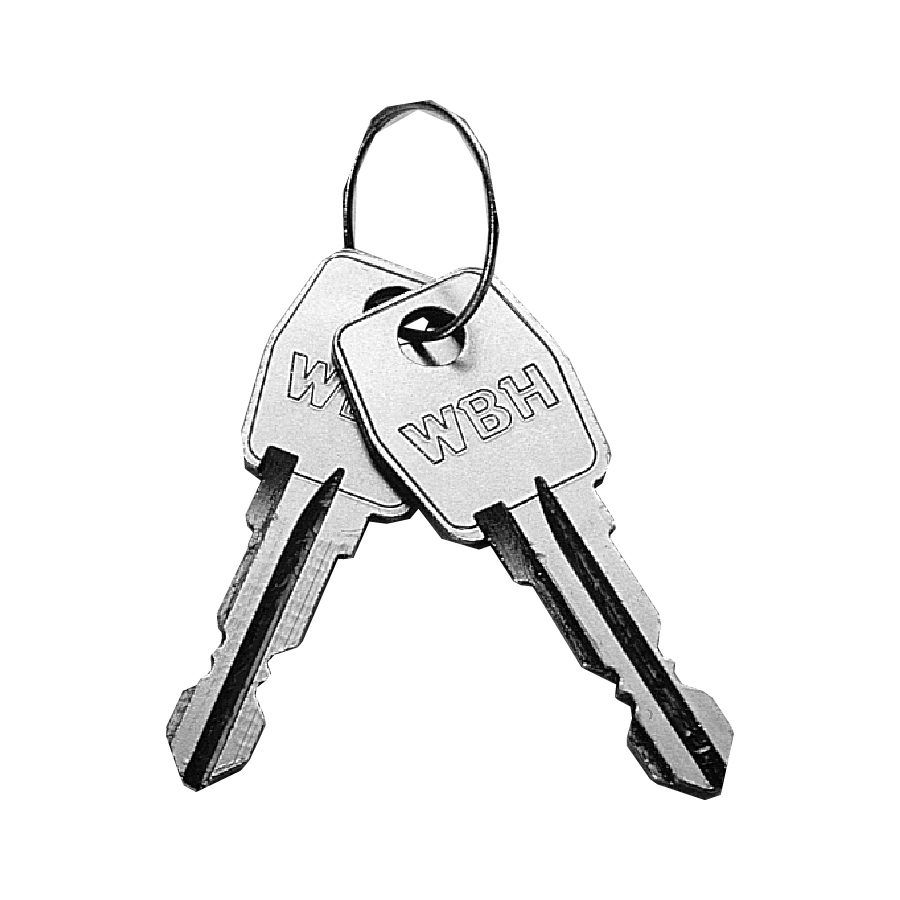

- ‘FT’ keys as standard, with shuttered keyway. Optionally, ‘FS’, ‘92’, ‘DLP’ or ‘Ronis’ key types. Non-locking models.
- Polished stainless steel, clear zinc-plated. Optionally, black powder-coated finish.
- With stainless models, all components made in Grade 304. With mild steel models, case and flap in CR4 with mild steel slam bolt.
- Alternative slam bolts (length, profile). Inside release knob.
- Tested to destruction, paddle flap withstood a direct load of 42Nm (2.45KN). Equivalent to a ‘pull’ of 245Kg (540lbs). Endurance (cycle) testing: The latch was slammed/opened for over 50,000 cycles with no discernable wear.
