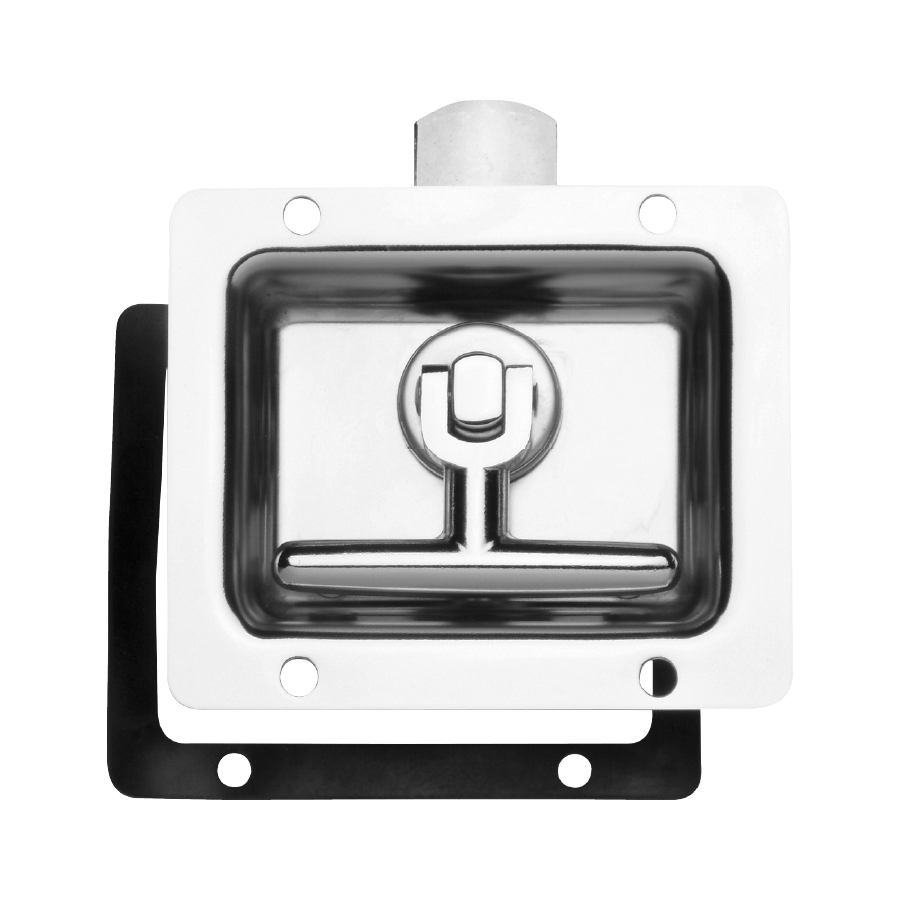

9/01505 Single-point model in 'rest' position.
Ordering Code
| Stainless Steel Models | |
| 9/01505 | LH, non-locking, stainless steel |
| 9/01506 | RH, non-locking, stainless steel |
| Mild Steel Models | |
| 9/01515 | LH, non-locking, zinc-plated |
| 9/01516 | RH, non-locking, zinc-plated |

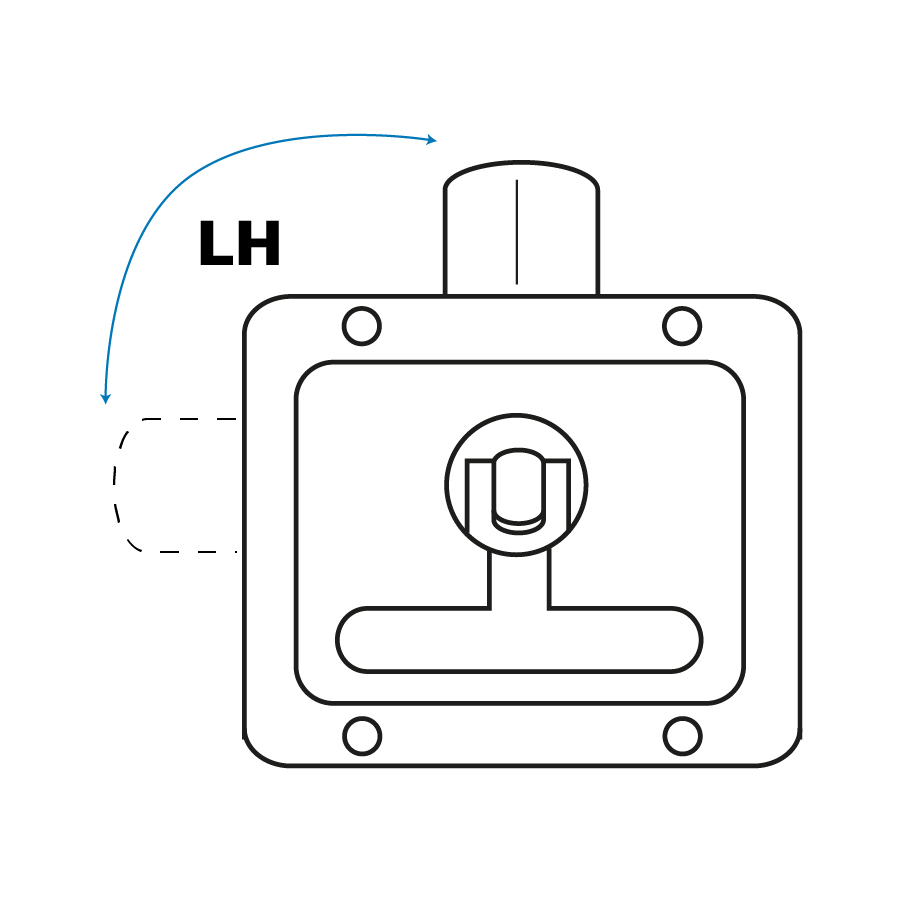

Handle turns anticlockwise to release the latch tongue

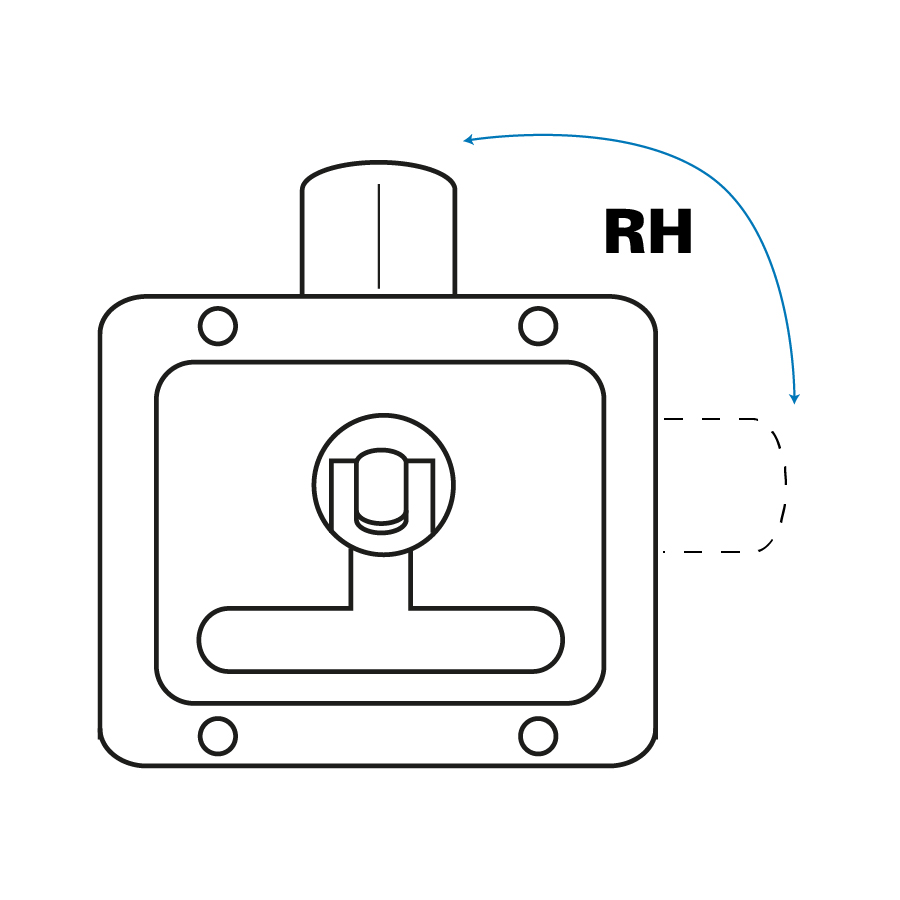

Handle turns clockwise to release the latch tongue

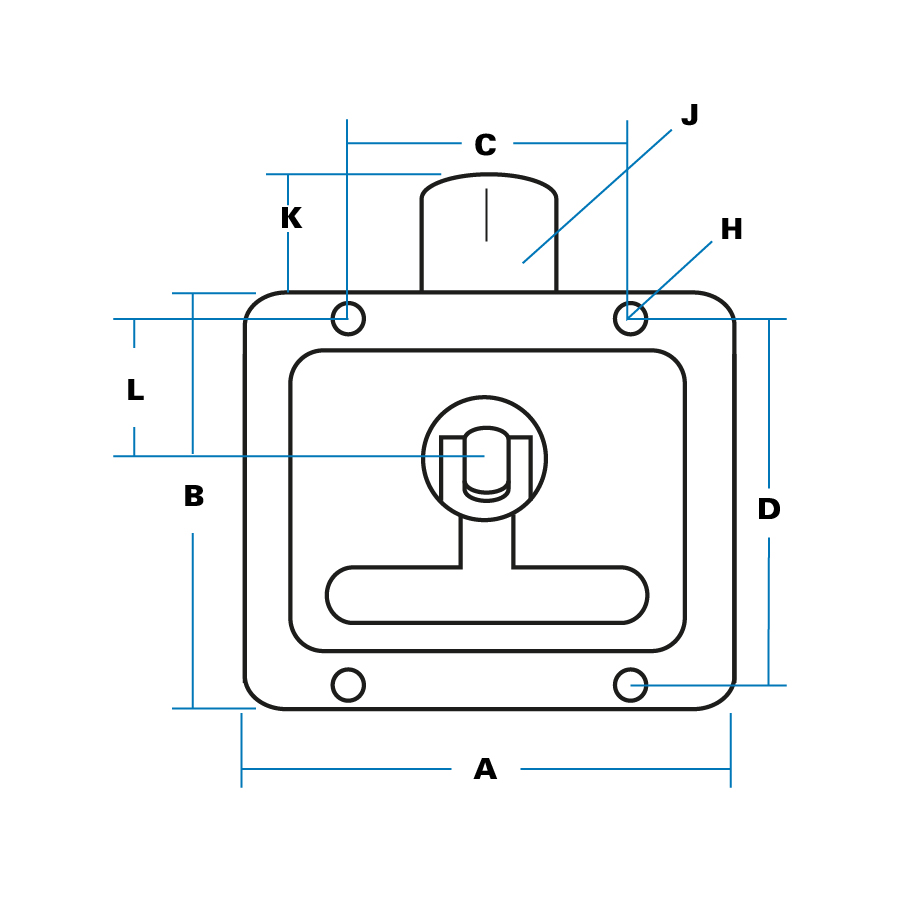

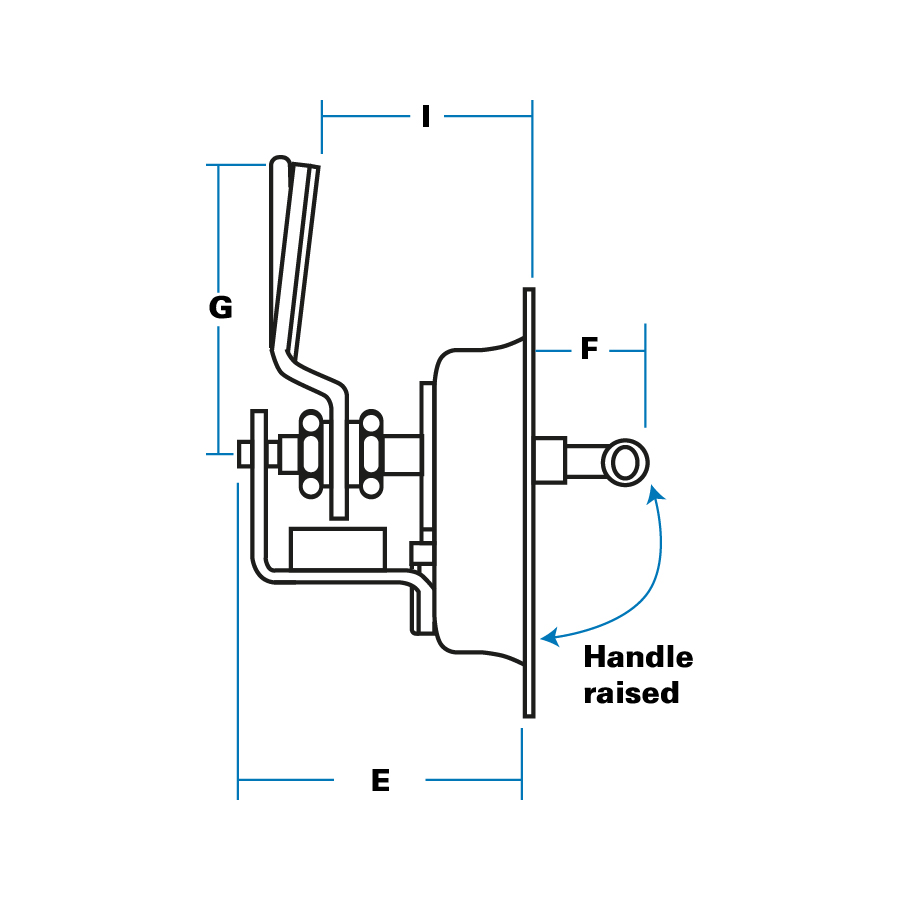

Specification
| A | Width of pan | 120 mm |
| B | Length of pan | 102 mm |
| C | Hole centres | 69 mm |
| D | Hole centres | 90 mm |
| E | Max. depth | 68 mm |
| F | Height of handle | 30 mm |
| G | Length of latch | 70 mm |
| H | Hole Size (dia) | 7.5 mm |
| I | Engagement (normally set at 51 mm) | 43-55 mm |
| J | Widthcam travel 3 mm depth | 30 x 5 mm deep |
| K | Projection | 30 mm |
| L | Location | 34 mm |
'I' dimension can be varied using different latchbars. See options.
Gasket ref: MP00568 (non-locking).
- Polished diecast ‘hub’, and neoprene seal under stainless ‘cup’ washer for good appearance, corrosion resistance and weatherproofing. Gasket supplied.
- Lift handle to turn latch bar, with 5 mm cam-form, adjustable through 12 mm vertically.
- Latch travels 90° from centre (rest) position against ‘stops’ and is ‘handed’ LH or RH (not reversible).
- Four holes in flanges at 7.5 mm diameter. Latch bar is adjusted by 2 x M10 nuts.
- Polished stainless steel with chrome handle and hub, or mild steel, zinc-plated. Optionally, black powder-coated. All internal parts are zinc plated for corrosion resistance.
- ‘T’-pan in 2mm stainless steel grade 304, bright polished, or mild steel to CR4. ‘T’-handle and hub are zinc diecast.
