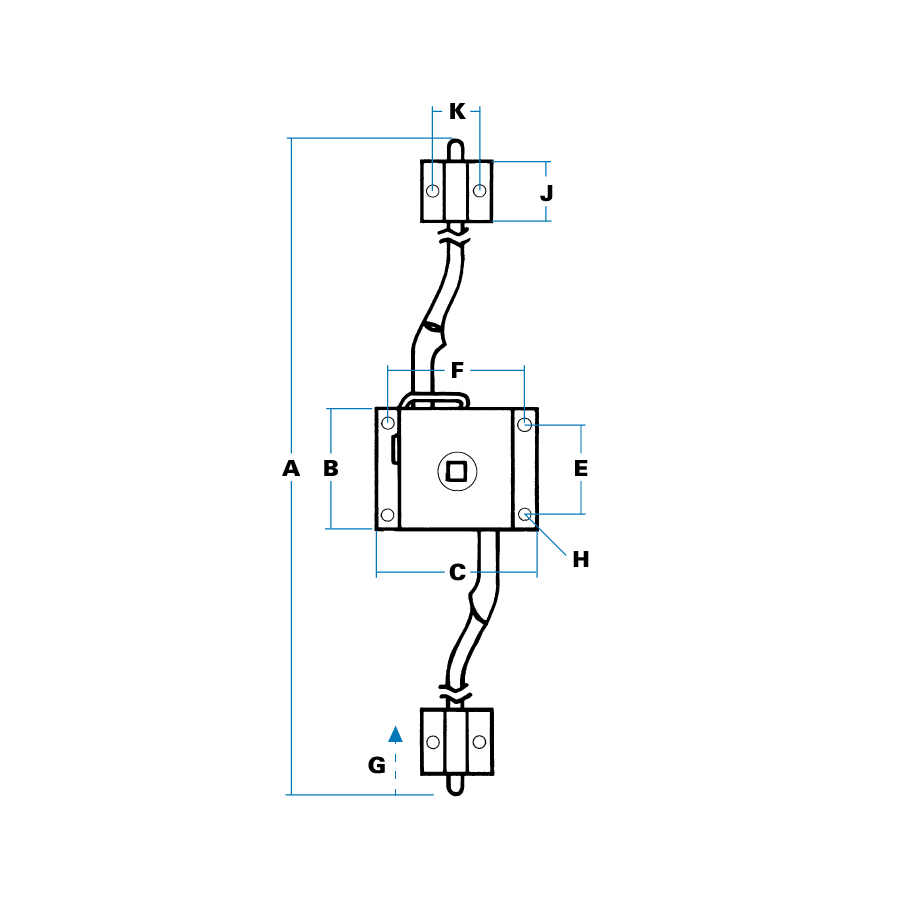

Direction of motion (90°) as shown to retract bars
Right-hand rod latch 3/18794 (includes guides) shown fully extended, from inside.
Ordering Code
| 3/18794 | 2-way rod latch, RH (set) |
| 3/18795 | 2-way rod latch, LH (set) |
| 3/18794 MO | 2-way latch, RH, no guides |
| 3/18795 MO | 2-way latch, LH, no guides |
| 3/18899 | Guide, 2-way latches |
Specification
| A | Length of system (extended) (retracted) |
2210 mm 2160 mm |
| B | Case length | 50 mm |
| C | Case width | 67 mm |
| D | Case height | 14 mm |
| E | Hole centres (vertical) | 38 mm |
| F | Hole centres (horizontal) | 57 mm |
| G | Withdrawal (each end) | 24 mm |
| H | Hole size (diameter) | 4 mm |
| J | Guide length | 25 mm |
| K | Hole centres | 22 mm |
Rod diameter 10 mm. Follow bush mounted centrally to accept 8 mm square shaft.
- Close door, turn inside/outside handle (or T-key) to ‘throw’ rods past door edge. System cannot be slammed.
- Centre bush rotates through 90° as shown to withdraw rods by 24 mm (each end). System is ‘handed’ by direction of rotation.
- Latches are fully plant-on. Rod ends should be cut as required : guides are supplied with full system.
- Zinc-plated throughout.
-
- Special rod lengths to order
- Permanently-attached inside handle
- ‘Male drive’ (8 mm square) spindle on inside/outside of latch.
- Case hole dimensions (F = 62 mm)
