9/00856 (RH)
Ordering Code
| 9/00855 | ‘Symmetrical’ budget latch, LH |
| 9/00856 | ‘Symmetrical’ budget latch, RH |

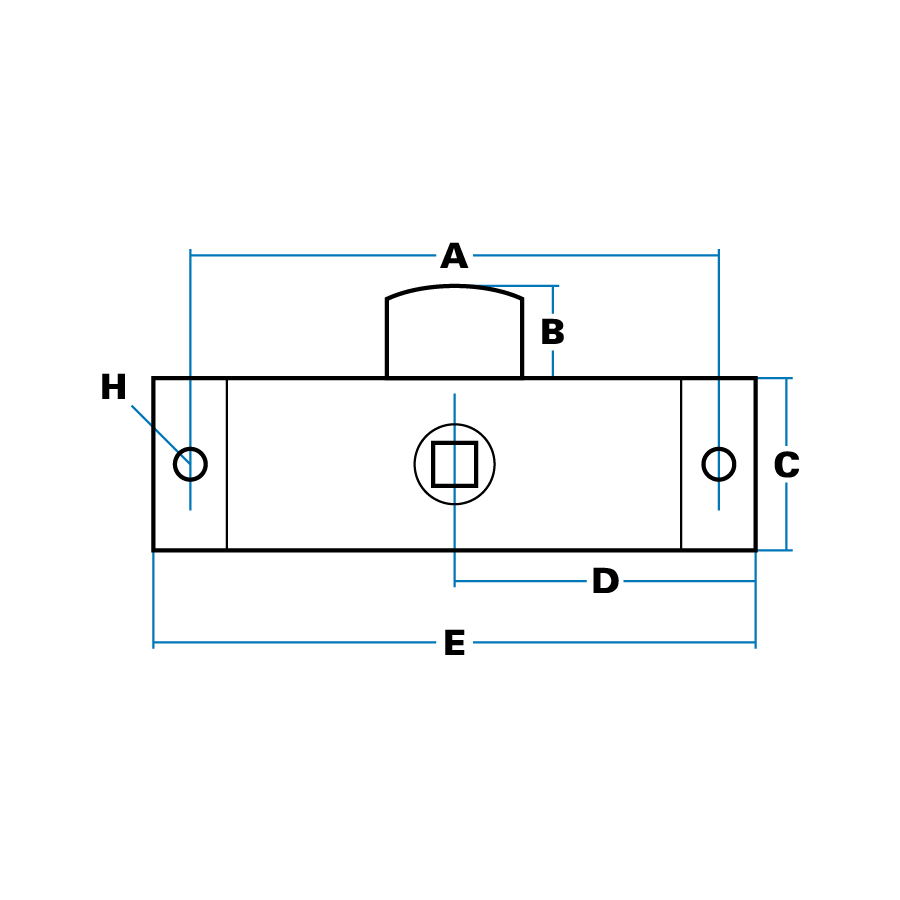

Specification
| A | Hole Centres | 86 mm |
| B | Bolt Height | 15 mm |
| C | Case Width | 28 mm |
| D | Location | 51 mm |
| E | Length | 98 mm |
| H | Hole Sizes (Diameter) | Ø 5 mm |
- Fixing through 5mm holes. These can be enlarged or countersunk to special order.
- Zinc-plated throughout.
