9/00285 Short catch & Striker Plate
Ordering Code
| 9/00285 | Overcenter catch/hook - short |

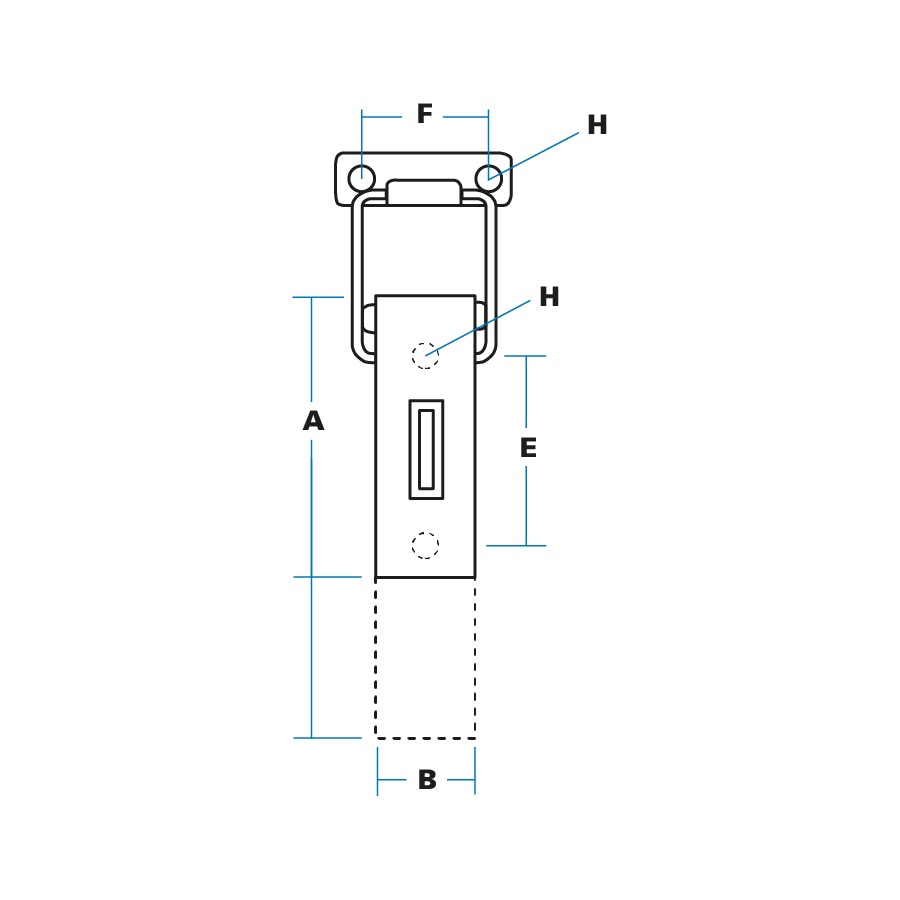

Specification
| A | Length (short model) | 66 mm |
| B | Width | 25 mm |
| C | Height | 20 mm |
| D | Loop Diameter | 10 mm |
| E | Hole Centres | 34 mm |
| F | Hole Centres | 32 mm |
| G | Max. Open Max. Closed |
52 mm (short) 42 mm (short) |
| H | Hole Sizes | 5 mm |
