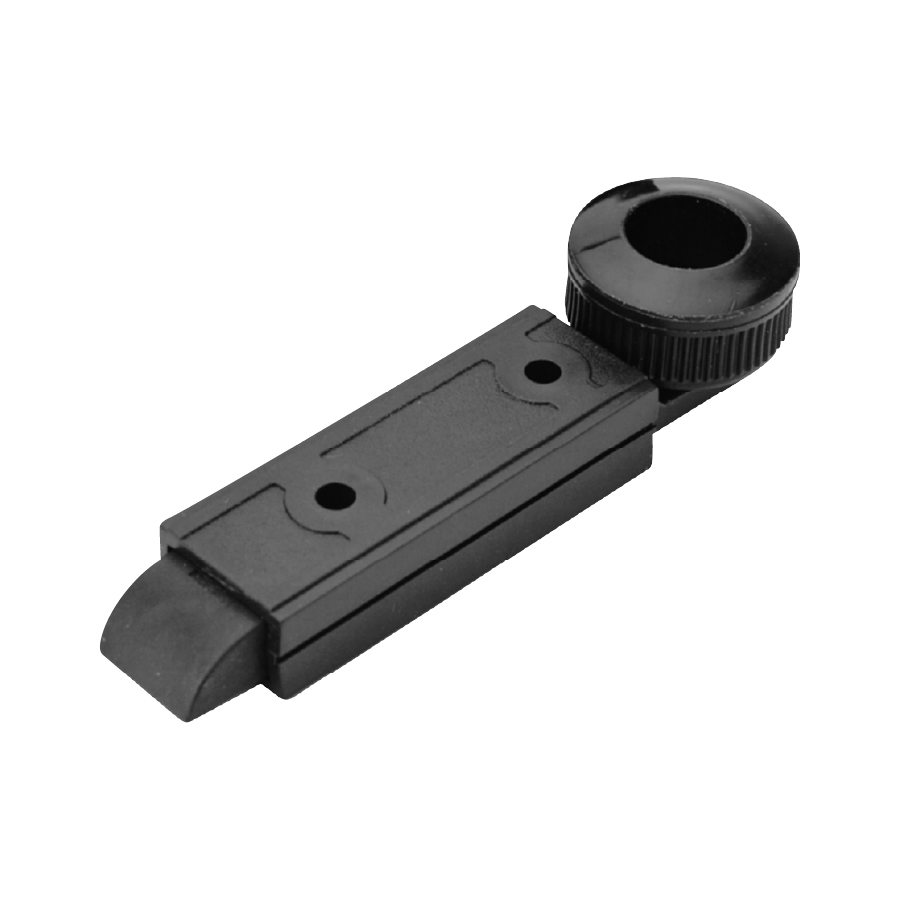

9/01528 - ‘Nose-up’ model
9/01529 - ‘Nose-down’ model

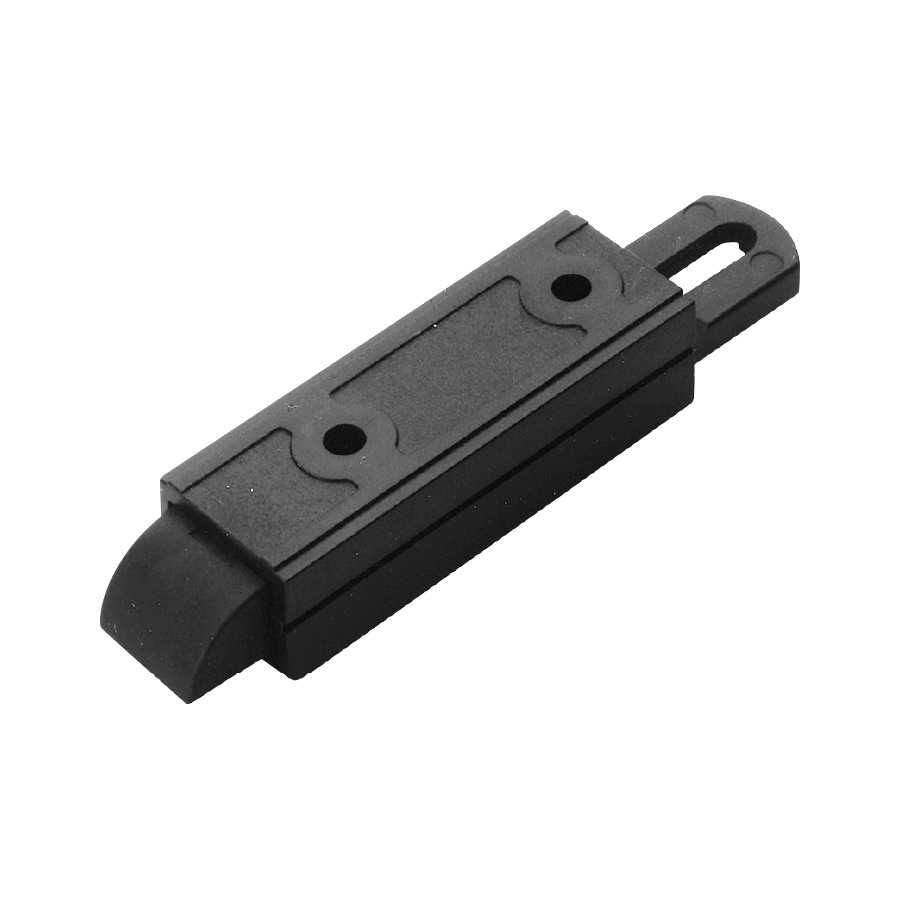

9/01530 - Basic model
Ordering Code
| 9/01528 | Moulded slam latch, reversed knob |
| 9/01529 | Moulded slam latch, pull-knob fitment |
| 9/01530 | Moulded slam latch |

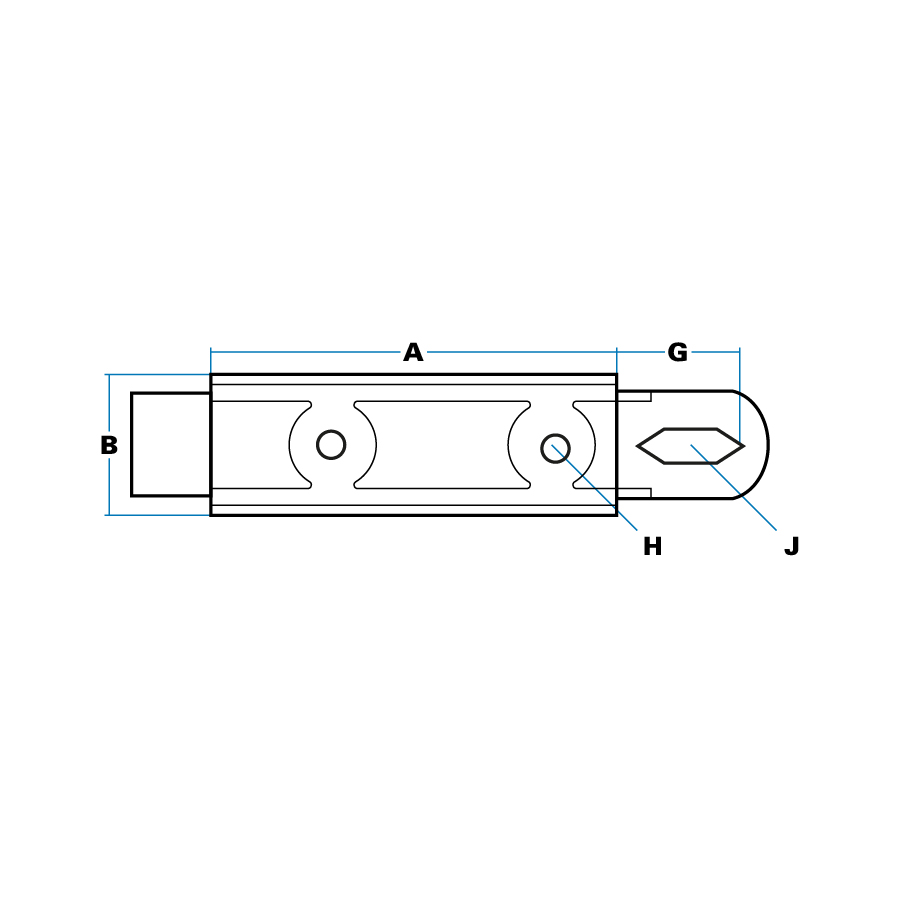

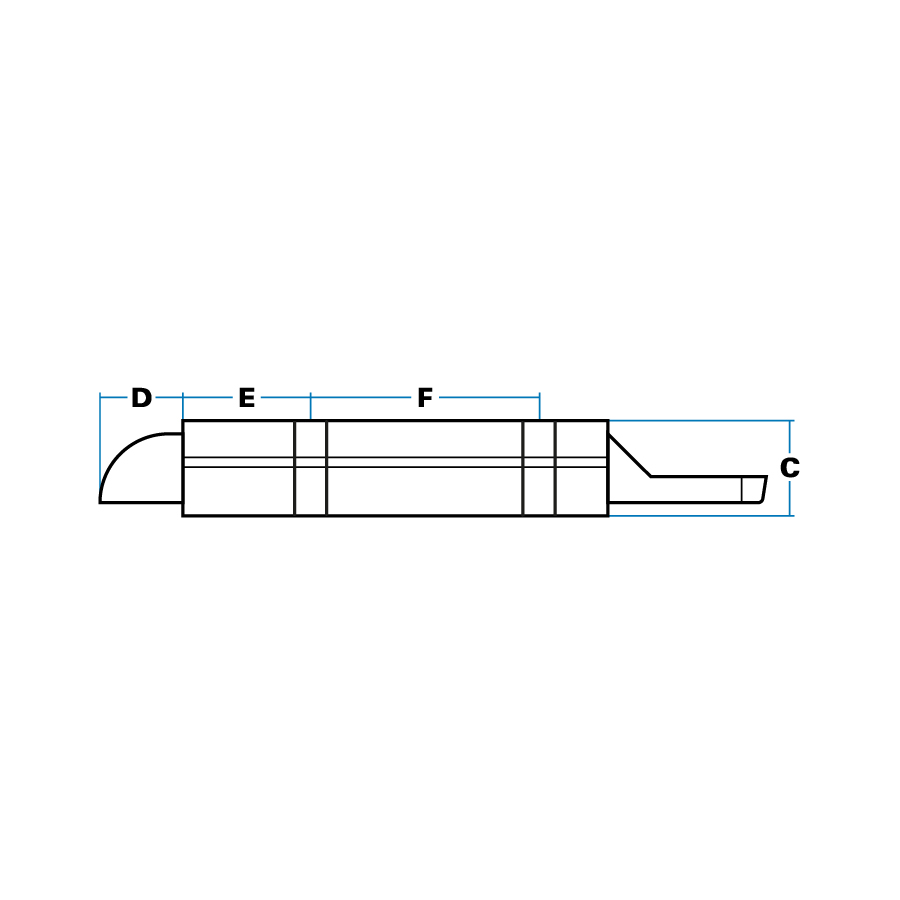

Specification
| A | Body Length | 80 mm |
| B | Body Width | 29 mm |
| C | Body Height | 18 mm |
| D | Bolt Projection | 16 mm |
| E | Location | 23 mm |
| F | Location | 44 mm |
| G | Location | 25 mm |
| H | Hole Diameter | Ø 6 mm |
| J | Slot Dimension | 7×20 mm |
| K | Knob Diameter | Ø 38 mm |

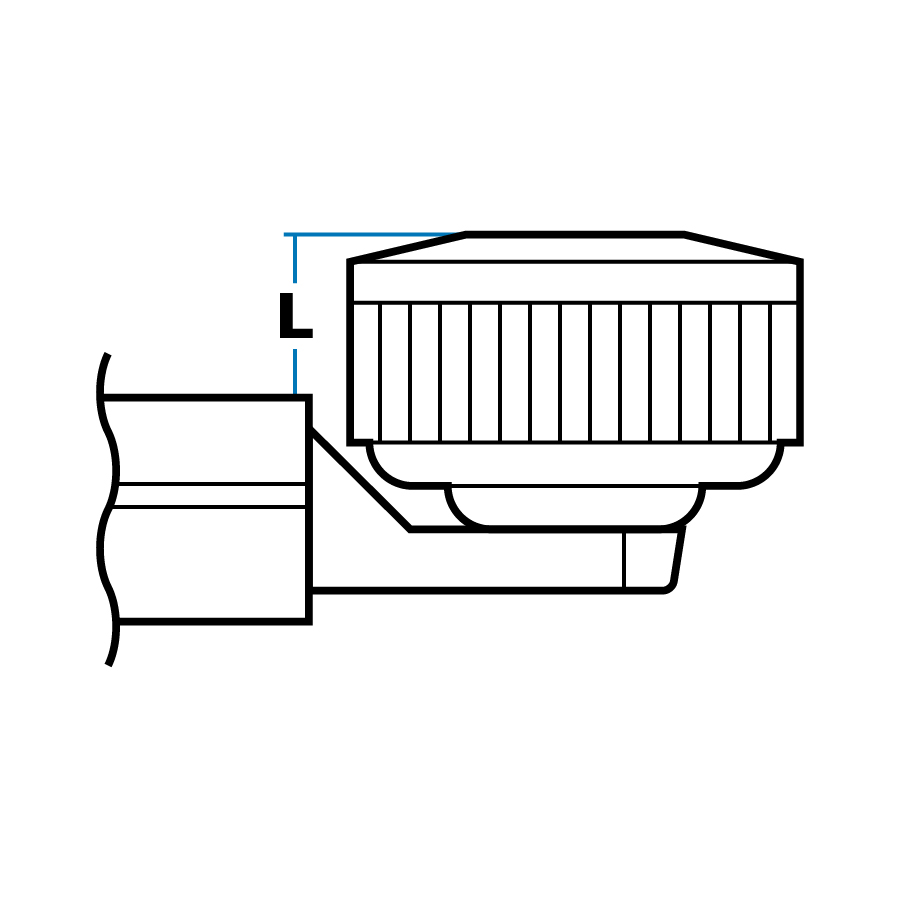

| L | Knob Height (max) | 16 mm |
Spring pressure: 6kg to full bolt withdrawal
- Basic Latch (9/01530) is operated by rod or cable as part of a slam system. Single-point models use a large knurled knob for good grip.
- Slam bolt retracts fully into case when operated. Slotted bolt-pull provides ‘lost-motion’ so latches can always be slammed, even when a system is in ‘locked’ mode.
- Fixing by rivets through 6mm holes in case. Use large-headed fasteners to spread load over area.
- Latches are self-coloured black with attractive textured finish.
- Moulded in acetal copolymer, with stainless steel spring.
- Tooling allows special bolt nose shapes to be made, subject to economical minimum batches.
- Cycle Testing: The slam latch 9/01530 was tested to over 50,000 cycles of slam and withdrawal with no appreciable wear to bolt-nose or bolt-pull.
