9/00984 Catch & striker assembly
9/00984 Catch & striker assembly
Ordering Code

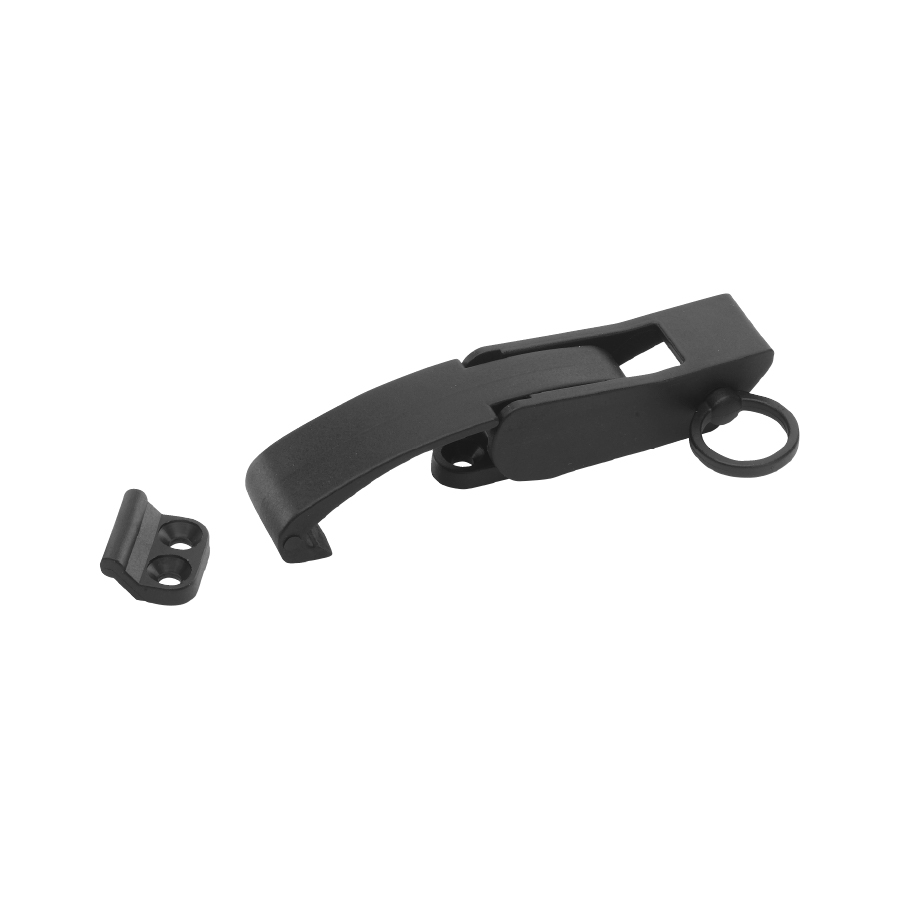

| 9/00984 | Moulded over-centre catch & striker assembly |

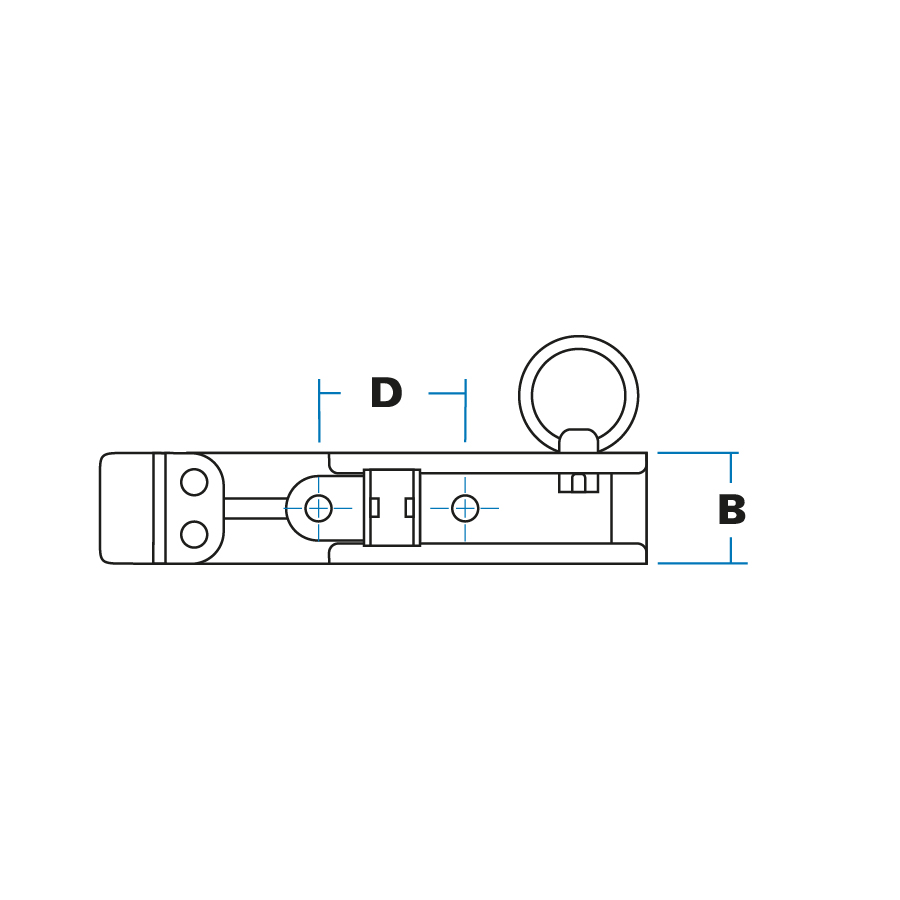

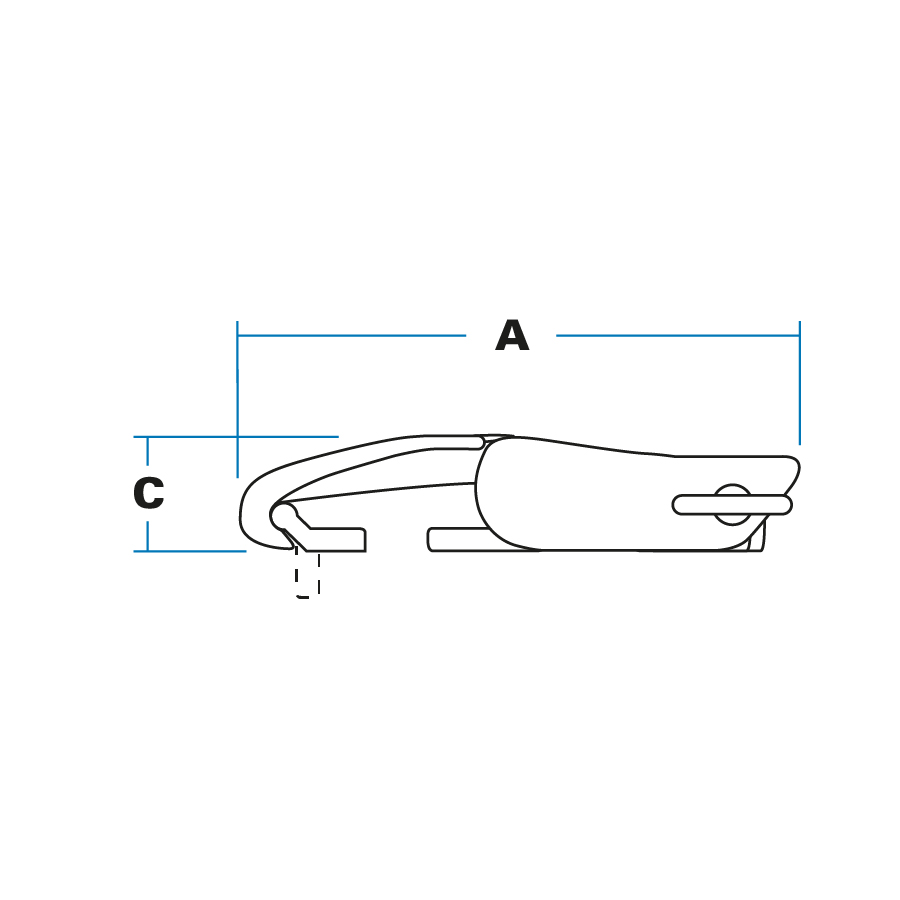

Specification
| A | Length | 125 mm |
| B | Width | 25 mm |
| C | Height (max) | 26 mm |
| D | Hole cetres (base) | 33.4 mm |
| E | Hole sizes | 5 mm c/s 8 mm |
| F | Max ‘draw’ | 20 mm |
- The reinforced 'hook' is brought over the striker plate, and the centre section is pressed down to achieve over-centre action.Maximum 'draw' is 20mm. The press-fit finger-loop secures centre to base-plate.
- Fully plant-on, secured by bolts or rivets to panel surfaces.
- Black self-colour with lightly textured finish.
