3/16201 (RH)
Ordering Code
| 3/16200 | Hooked budget latch, LH |
| 3/16201 | Hooked budget latch, RH |

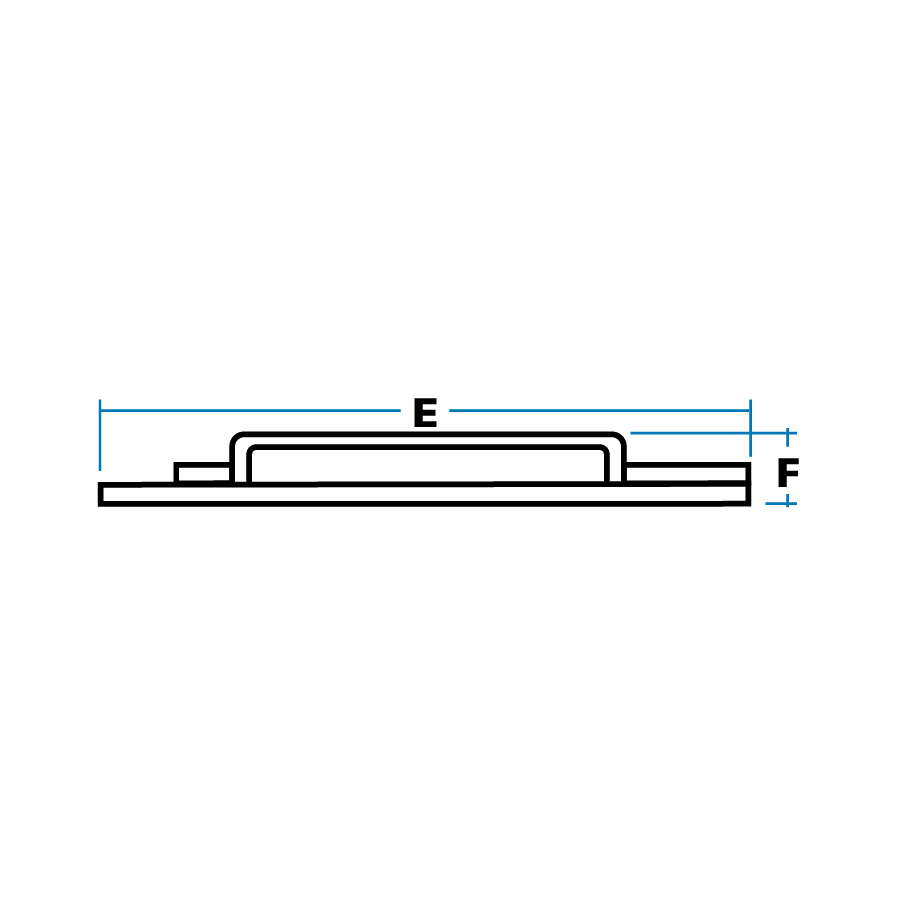

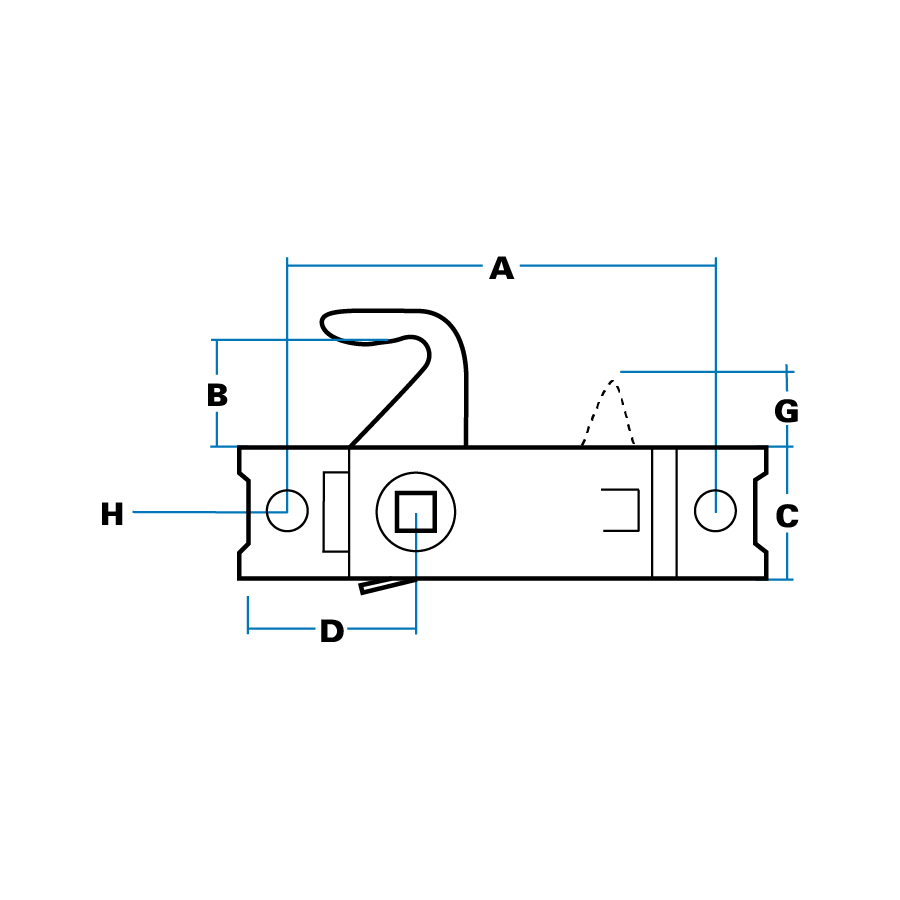

Specification
| A | Hole Centres | 93 mm |
| B | Engagement | 24 mm |
| C | Case Width | 25 mm |
| D | Location | 42 mm |
| E | Case Length | 112 mm |
| F | Max. Height | 8 mm |
| G | Min. Projection | 13 mm |
| H | Hole Sizes | 9 mm |
Original application: as boot latches, LH on MG Midget, RH on TR4/5.
- ‘Handed’ for 90° operation, LH/RH as shown, with deadbolt held positively in both ‘open’ and ‘shut’ positions by fitted spring. Note that tip of bolt will project from case when bolt is withdrawn.
- Plant-on fixing through 9mm holes. Note that top and bottom plates are mechanically interleaved for maximum strength.
- Normal finish is zinc plated.
