9/01186
Ordering Code
| 9/01186 | ‘Fix-through’ slam latch steel |

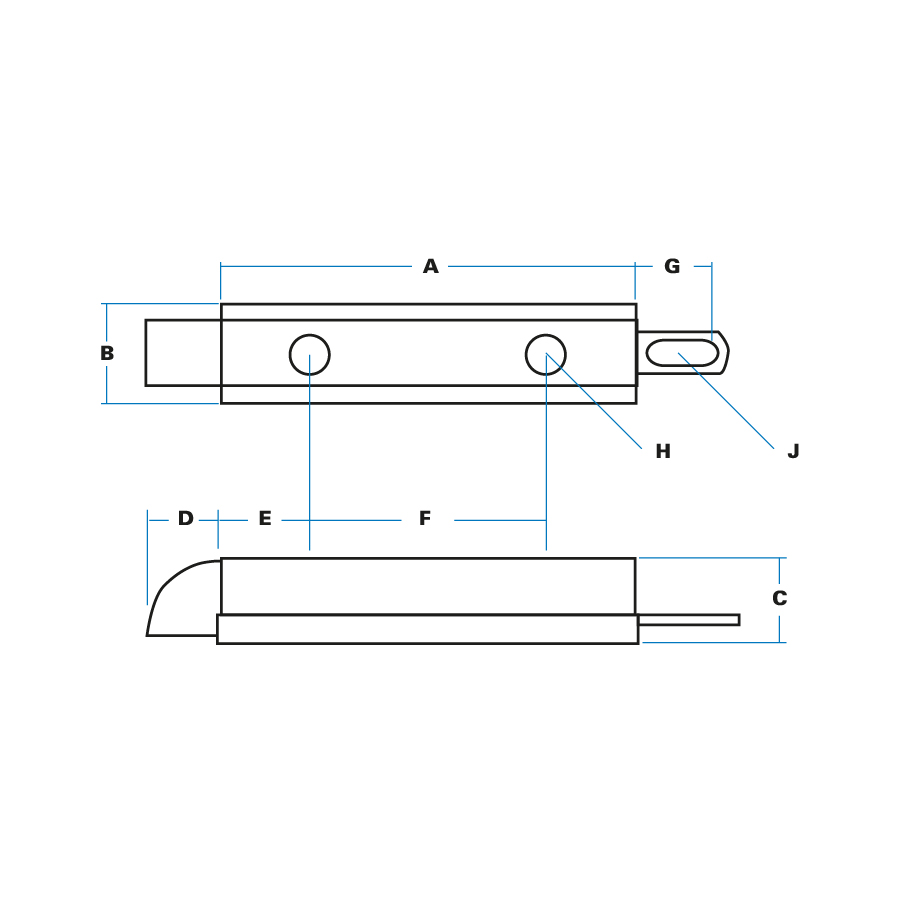

Specification
| A | Body Length | 80 mm |
| B | Max. Width | 25 mm |
| C | Max. Height | 20 mm |
| D | Projection | 13 mm |
| E | Location | 20 mm |
| F | Location | 43 mm |
| G | Location | 23 mm |
| H | Hole diameter | 7 mm |
| J | Slot dimensions | 6×20 mm |

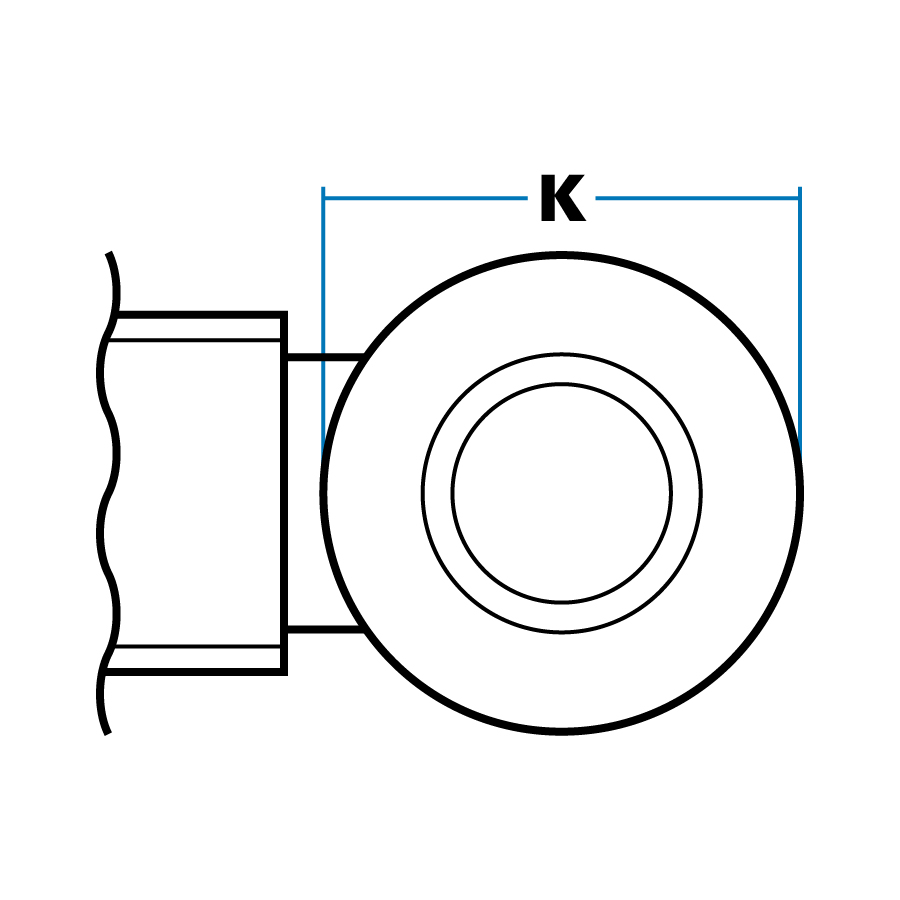

| K | Knob diameter | Ø38 mm |
| L | Knob height (max) | 20 mm |
Spring pressure: 5kg to full bolt withdrawal
- Slam bolt retracts fully into case when operated. Slotted bolt-pull provides ‘lost-motion’ so latches can always be slammed, even when a system is in ‘locked’ mode.
- Fixing by rivets through 7mm holes in case. Use large-headed fasteners to spread load over area.
- Bright zinc-plated.
