9/01951 Holdback and Striker (Complete)
Adjustable Striker Pin Assembly
Ordering Code
| 9/01951 | Door holdback & striker pin |
| 5/01664 | Moulded handle only, red |
Total handle movement either direction to release striker automatic spring - back centering
Striker pin diameter = 8mm
M8 nut, spring washer & 2-off 30mm washers provided
Specification

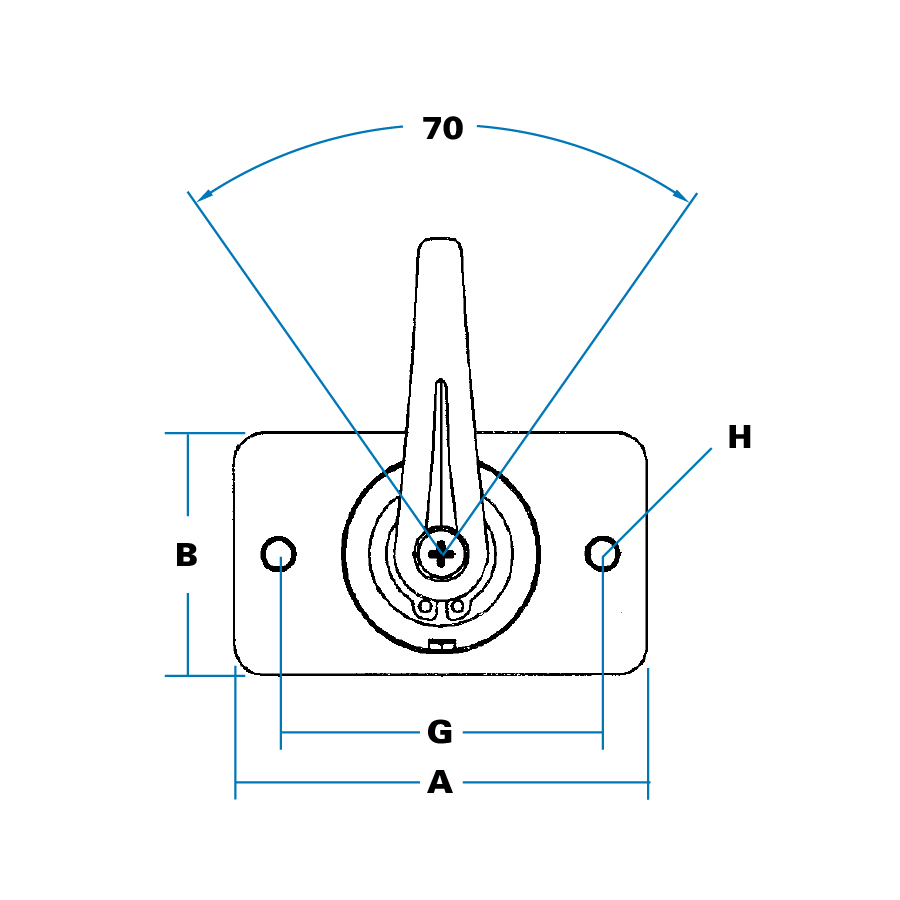

| A | Total width | 78mm |
| B | Faceplate height | 45 mm |

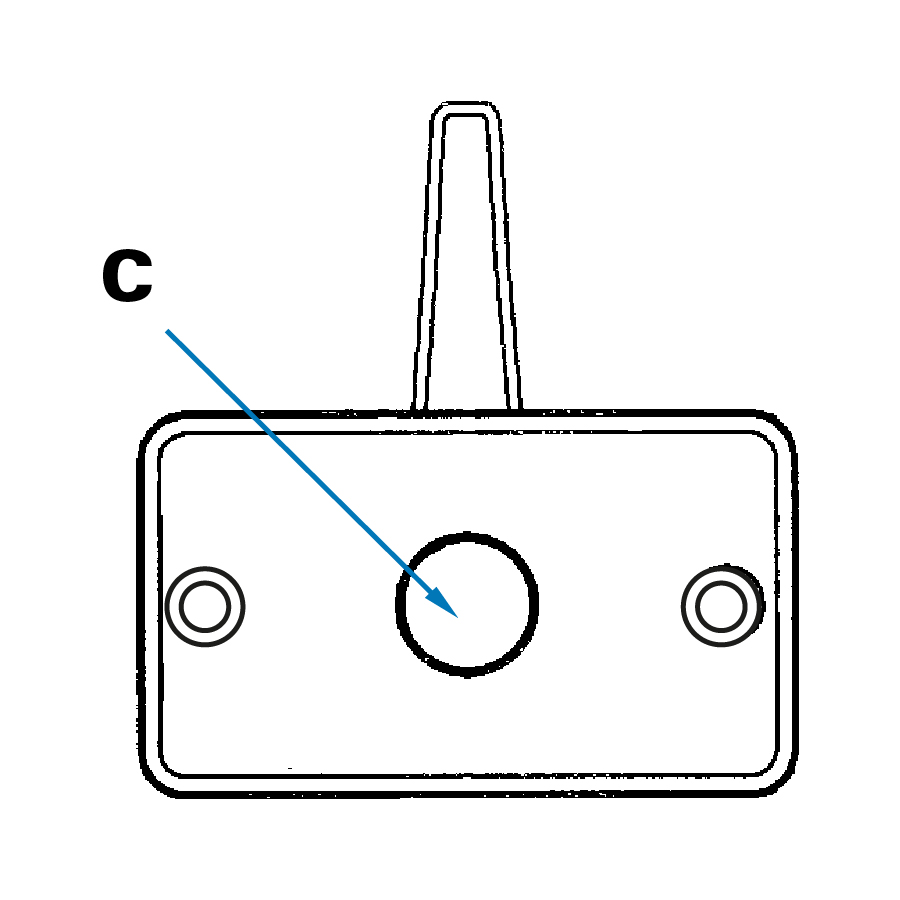

| C | Aperture (dia) | 18 mm |
| D | Case depth | 13 mm |

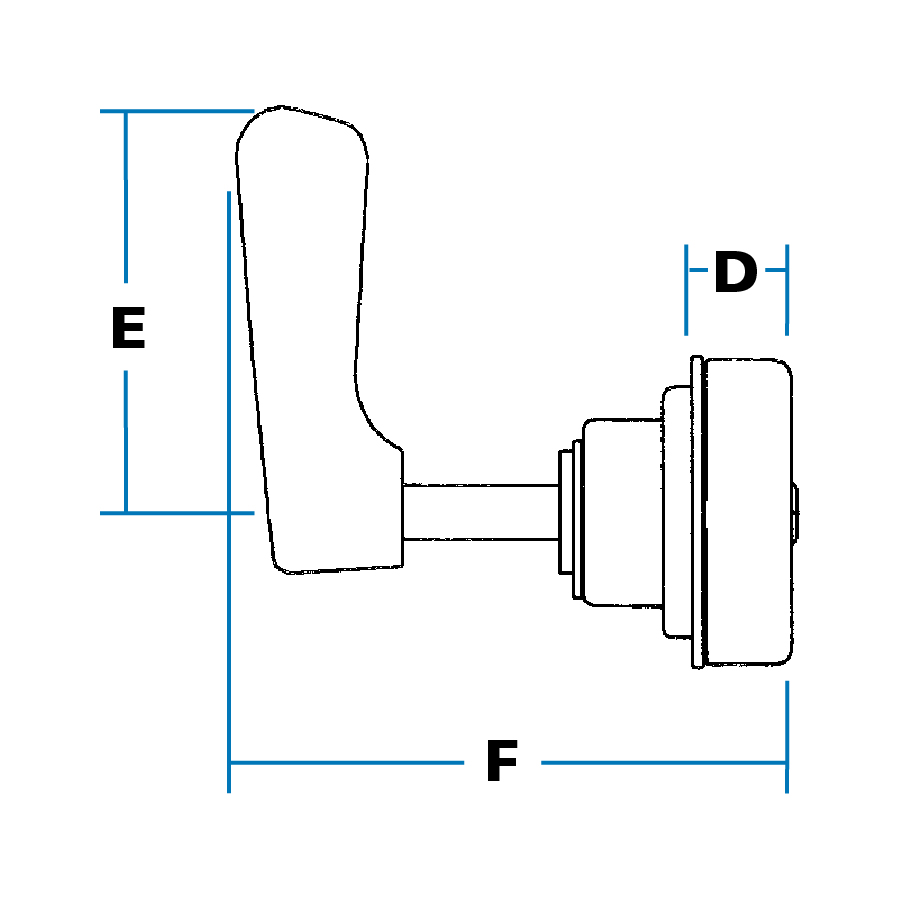

| E | Handle height | 60 mm |
| F | Max. depth | 67 mm |
| G | Hole centres | 62 mm |
| H | Holoe dimensions (dia) | 5.5 mm |
| J | Striker total length | 47 mm |

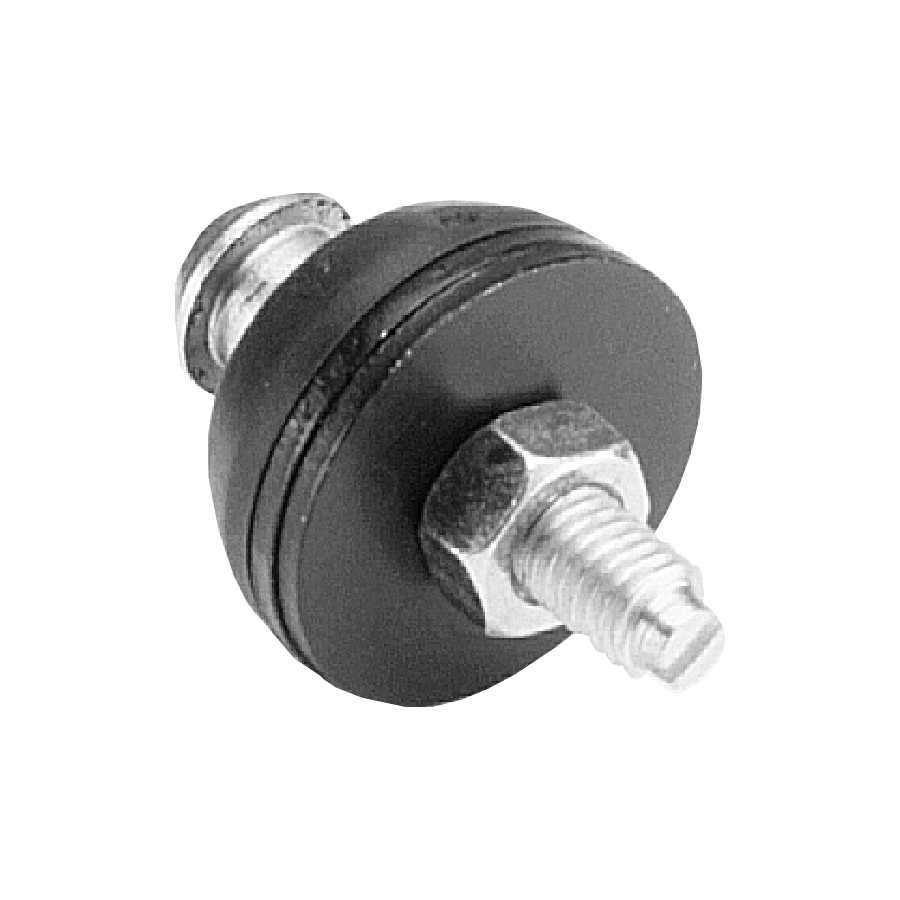

Striker assembly (adjustable) - Comprises threaded steel pin, nut, washers, moulded ‘buffer’ and steel locking plate. Finish is zinc plated, normally supplied unassembled.
- Steel striker is mounted onto door exterior, holdback is fitted into panel so that striker slams into hardened steel jaws.
- Gentle pressure on inside handle (in either direction) releases jaws, and a spring ejects striker with some force.
- Holdback is inserted through panel cut-out and fixed through two hollow rivets. (Handle can be attached separately). Striker pin threaded and provided with nut, washers and moulded ‘buffer’.
- Black powder-coated with black moulded handle (optionally red). Striker pin & washers are zinc-plated.
-
- Handle can be fitted at any 90˚ position
- Length of operating shaft can be varied to suit door thickness
- Alternative handles
- Remote-operated models
