9/01351 Holdback and Striker pin

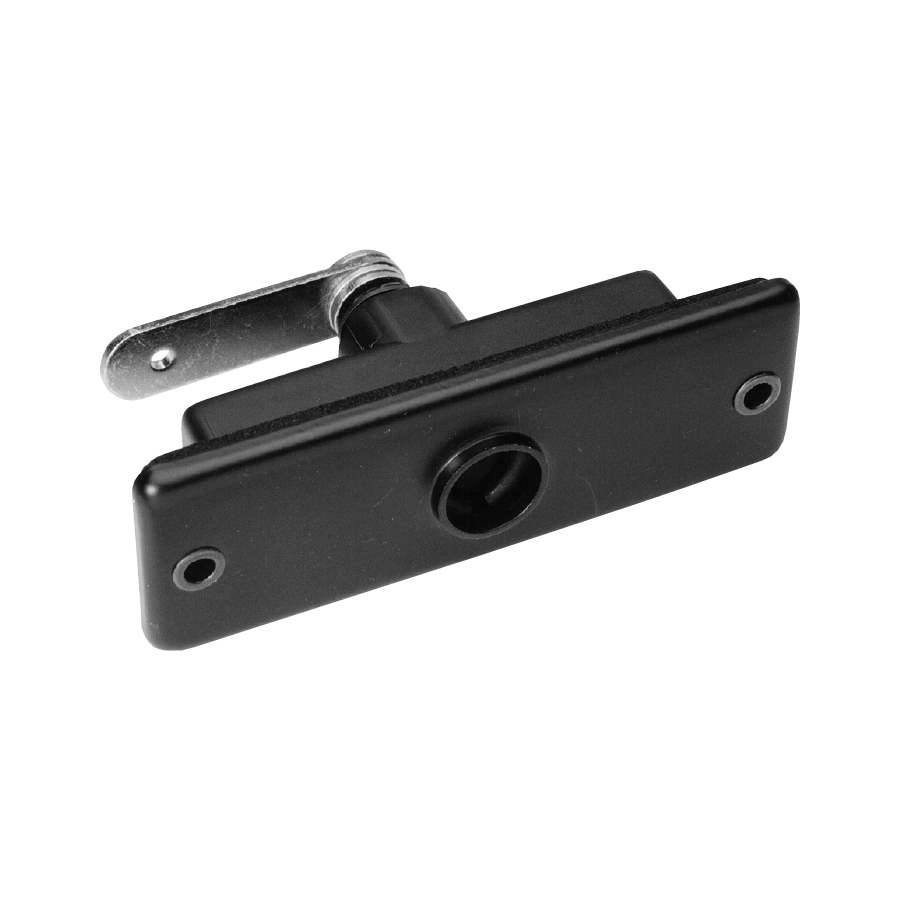

9/01351/02 Remote-operated model, with steel lever and cable-hole.
Ordering Code
| 9/01351 | Door holdback & striker pin |
| 9/01351/01 | Holdback & pin, handle unattached |
| 9/01351/02 | Holdback & pin, remote-operated |
M8 nut, spring washer & 2-off 30mm washers provided
Striker pin diameter = 8mm
Specification

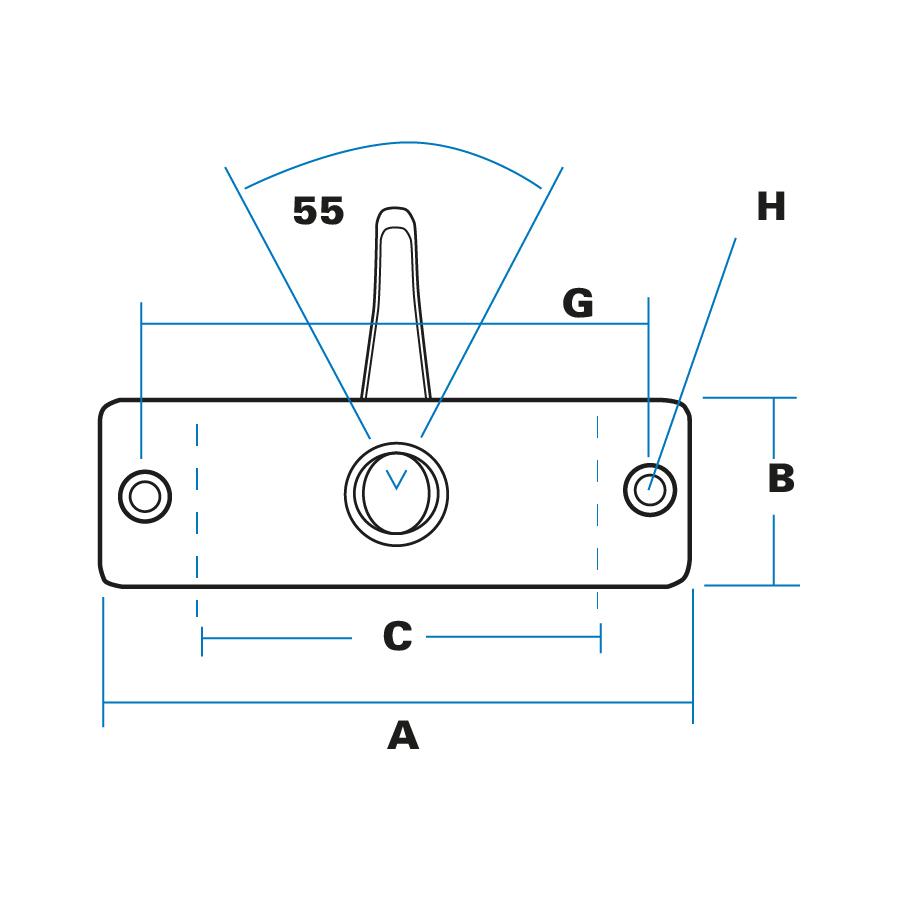

| A | Total Width | 124 mm |
| B | Faceplate height | 42 mm |
| C | Case width | 94 mm |

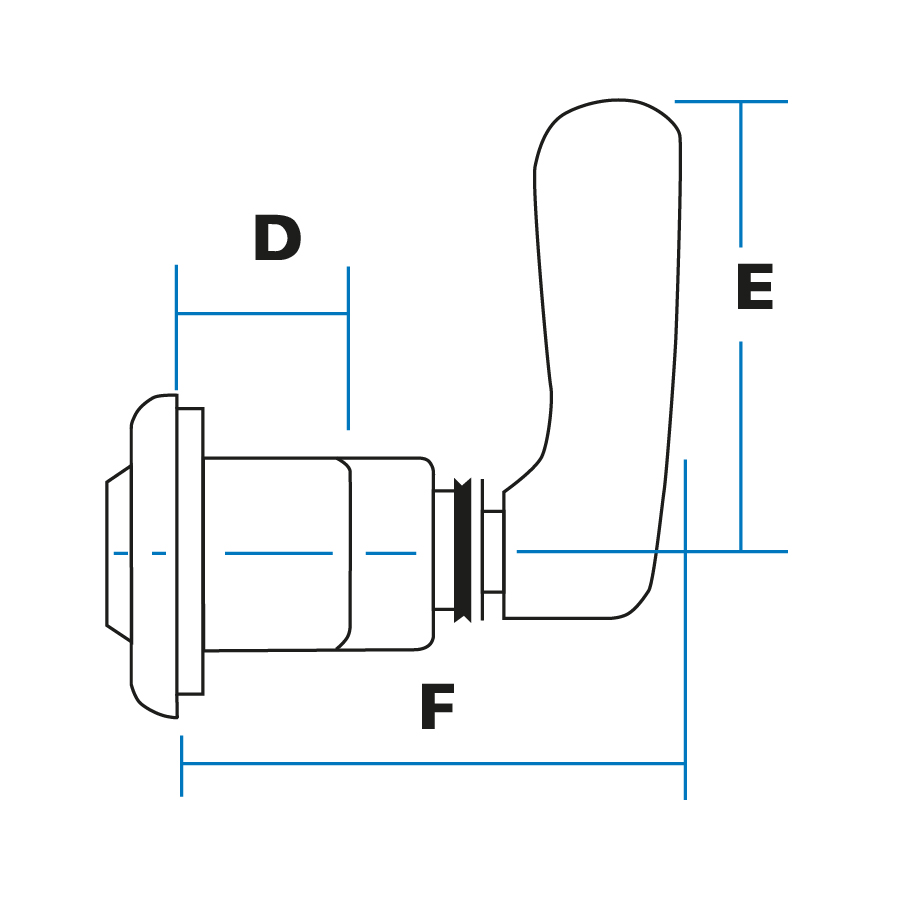

| D | Case depth | 22 mm |
| E | Handle height | 60 mm |
| F | Max. depth | 67 mm |
| G | Hole centres | 106 mm |
| H | Hole dimension | 5.5 mm |

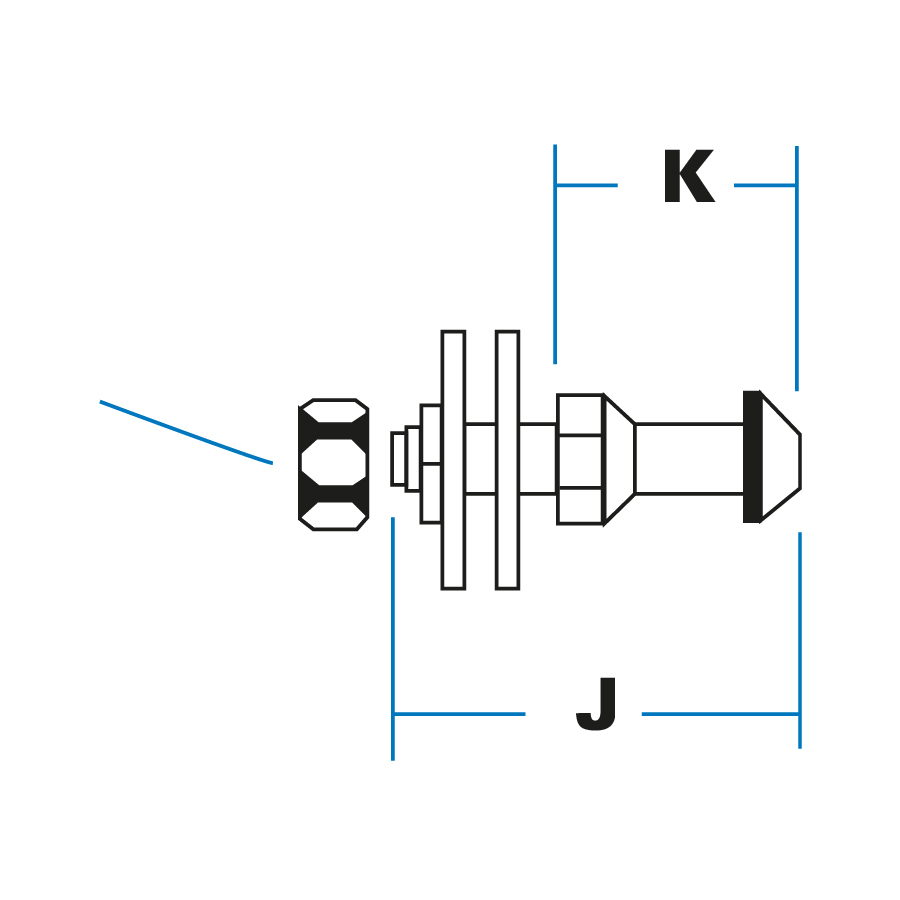

| J | Striker total length | 47 mm |
| K | Closing length | 27 mm |
Faceplate: Steel, powder-coated.
Gasket: Closed-cell foam
Body: Acetal copolymer.
Striker pin, Machined steel, hardened and zinc-plated.
- Steel striker is mounted onto door exterior, holdback is fitted into panel so that striker slams into hardened steel jaws.
- Gentle pressure on inside handle (in either direction) releases jaws, and a spring ejects striker with some force.
- Holdback is inserted through panel cut-out and fixed through two hollow rivets in steel faceplate. (Handle can be attached separately). Striker pin threaded and provided with nut and washers.
- Black powder-coated faceplate on black moulded case. Handle shown is red. Striker pin & washers are zinc-plated.
-
Handle can be fitted at any 90˚ position. Alternative handles available (retained by screw on 8mm square drive spindle). Remote-operated models
Striker pin length can be varied. Striker can be attached to steel plate for surface-mount applications. -
Cycle Testing
The door holdback and striker were mounted on a representative door and were slammed and released for over 50,000 cycles without noticeable wear or damage.
