9/01283, RH latch, shown in‘open’ position

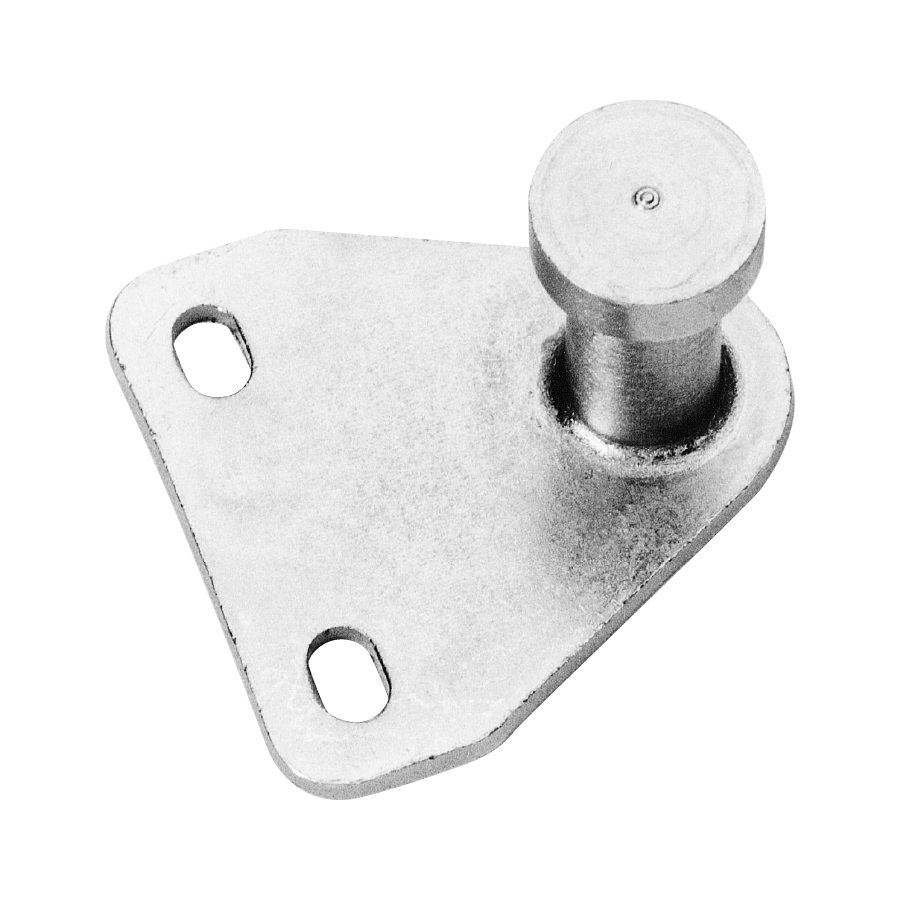

9/00724 Striker, normally used with this latch

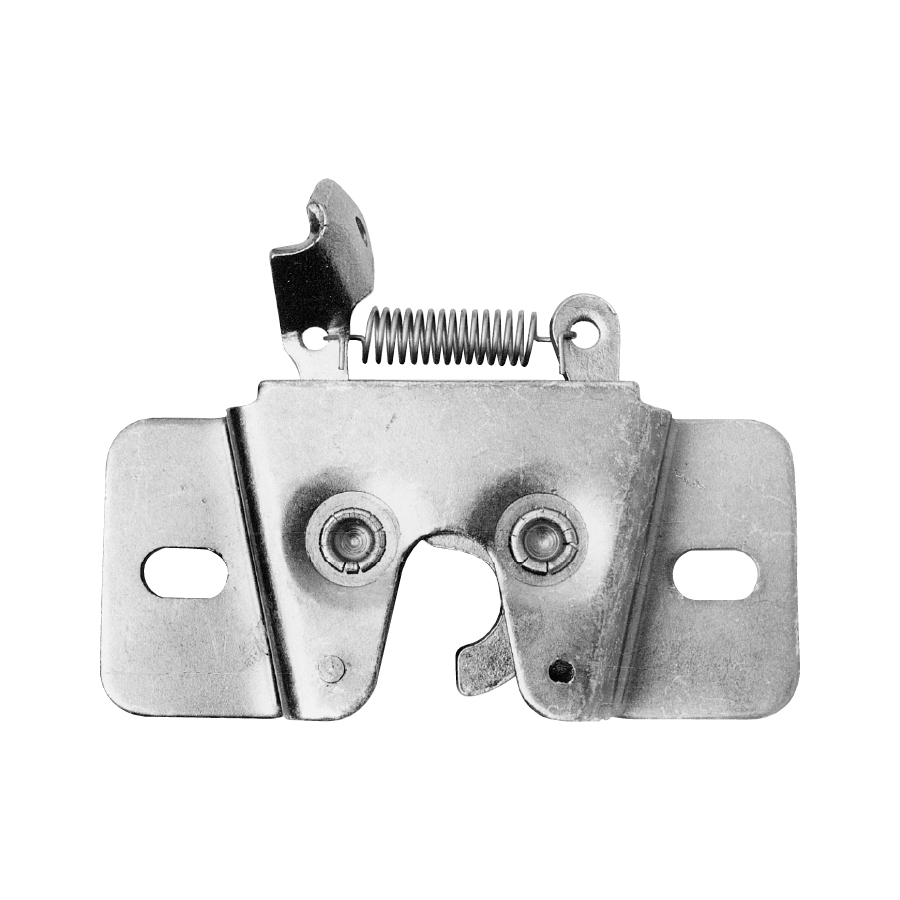

RH 9/01283 Latches shown with claw in ‘engaged’ position

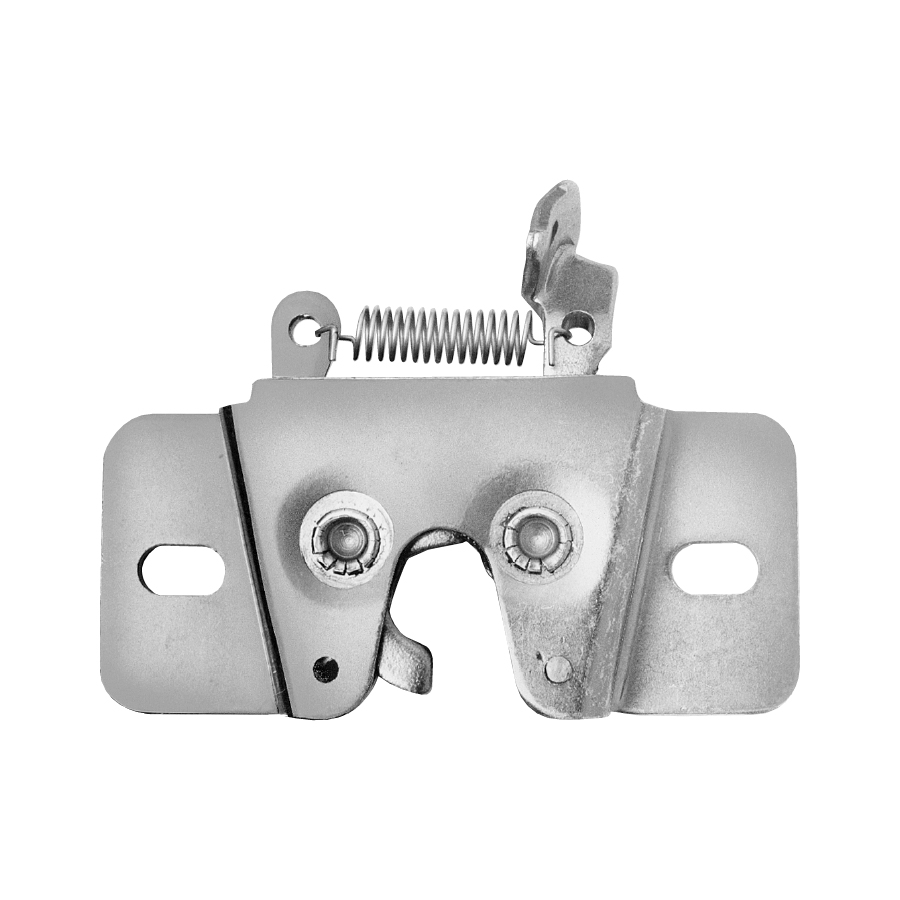

LH 9/01583 Latches shown with claw in ‘engaged’ position
Ordering Code
| 9/01283 | Claw latch RH, side-mount |
| 9/01583 | Claw latch LH, side-mount |
| 9/00724 | Pin-striker 52 mm |

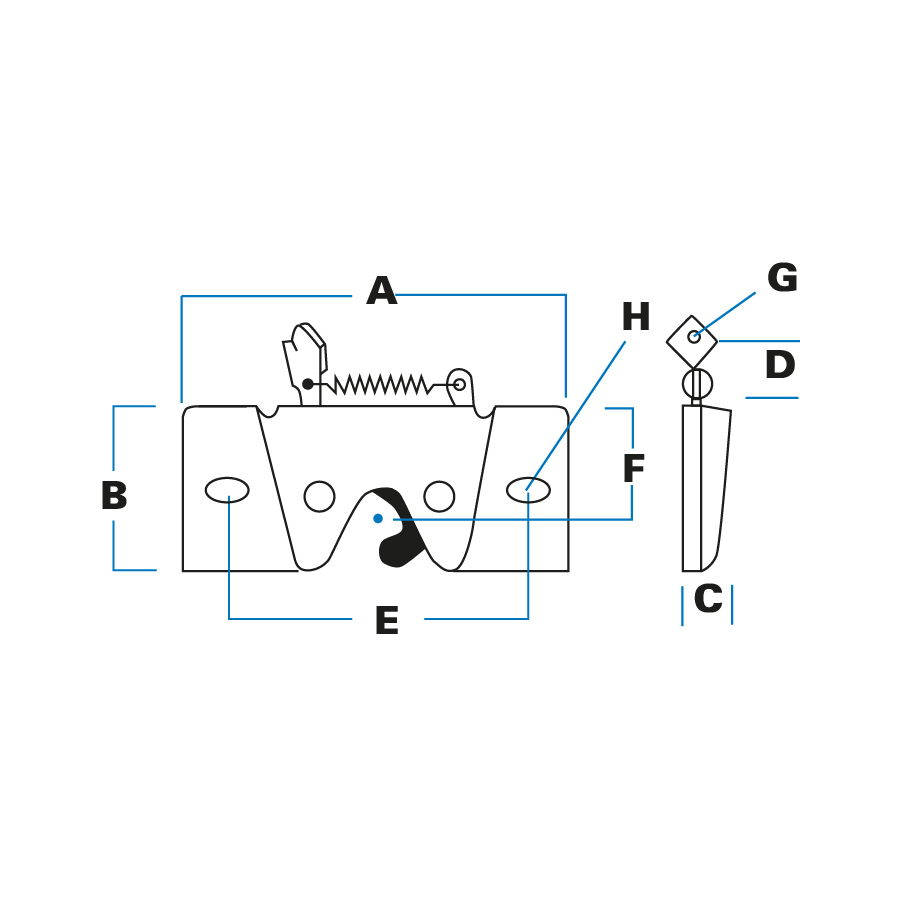

Specification
| A | Length | 100 mm |
| B | Height | 50 mm |
| C | Width | 19 mm |
| D | Location | 21 mm |
| E | Hole Centres | 76 mm |
| F | Location | 30 mm |
| G | Hole size (diameter) | 3 mm |
| H | Hole sizes | 6.5 x 12 mm |
| J | Width | 51 mm |
| K | Height | 35 mm |
| L | Length | 51 mm |
| M | Location | 32 mm |
| N | Hole centres | 32 mm |
| O | Hole Sizes | 5.5 x 9 mm |
| P | Pin diameter | 12.5 mm |
| Q | Thickness | 3 mm |
Maximum force on trigger to release: 2.5kg
- Slam-action against pin or loop striker plate. Both ‘hands’ available as illustrated.
- Claw engages with striker and is released by pressure on top trigger or can be operated remotely via cable to hole in trigger plate.
- Plant-on fixing through elongated holes in side flanges.
- Zinc-plated latch and strikers.
-
Anti-burst properties
When rig-tested these latches can achieve values in excess of 6.0KN transverse load (direct pull). However they must not be used for passenger restraint doors.
