7/03099 - Top
7/03098 - Bottom

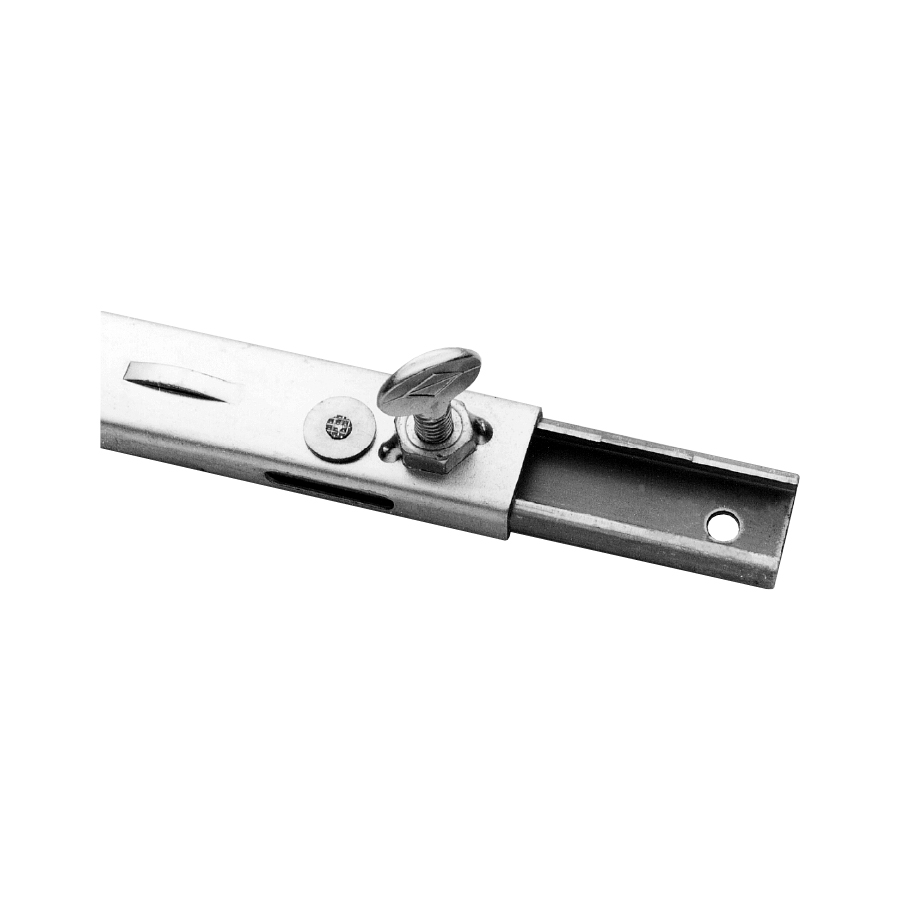

Thumb-screw fitment - A weld-nut is fitted in the outer slide, so that the thumb-screw can be tightened, this locking the stay at any intermediate poisition.
Ordering Code
| 7/03098 | Stay, 290/495 mm, 2 brackets |
| 7/03099 | Stay, 290/495 mm, bottom bracket only |

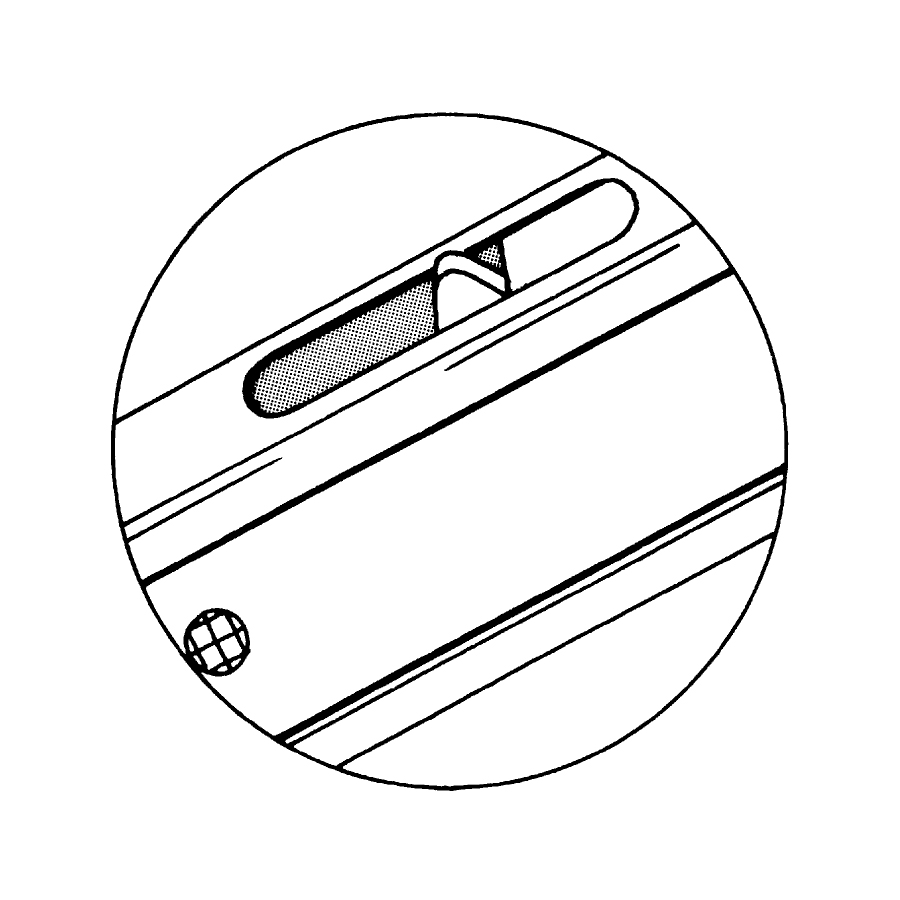

Detailed view of safety catch area

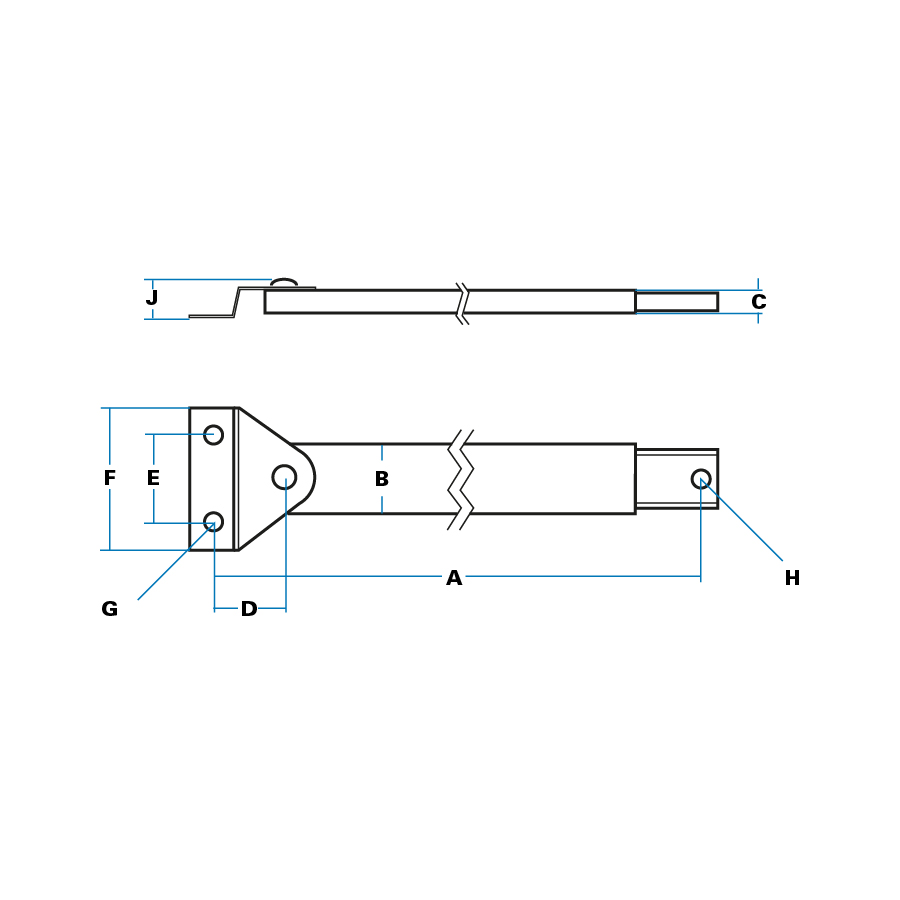

Specification
| A | Length between centres, closed extended |
290 mm 495 mm |
| B | Max. Width (outer) | 25 mm |
| C | Max. Depth (outer) | 12 mm |
| D | Location (bottom) | 28 mm |
| E | Hole centres | 35 mm |
| F | Bracket width | 57 mm |
| G | Hole sizes (diameter) | 9 mm |
| H | Hole size (diameter) | 6 mm |
| J | Bracket height | 14 mm |
Note: Standard bracket shown is 7/03094
- Stay extends as door is opened, and locks in the extended position. The safety catch must be depressed manually before it will close.
- Clear zinc-plated. To special order, black zinc-plated
- Standard brackets as illustrated for plant-on fitting
- Mild steel throughout
