1/14300 ‘Arched’ Locking Handle
Single-sided ‘FS’ keys only
Ordering Code
| 1/14300 | ‘Arched’ handle, locking, chrome(44mm) |
| 1/14300/01 | As above, FS880 |
| 1/14600 | ‘Arched’ handle, non-locking,chrome (44mm) |
| 1/28902 | ‘Arched’ handle, locking, chrome(38mm) |
Specification

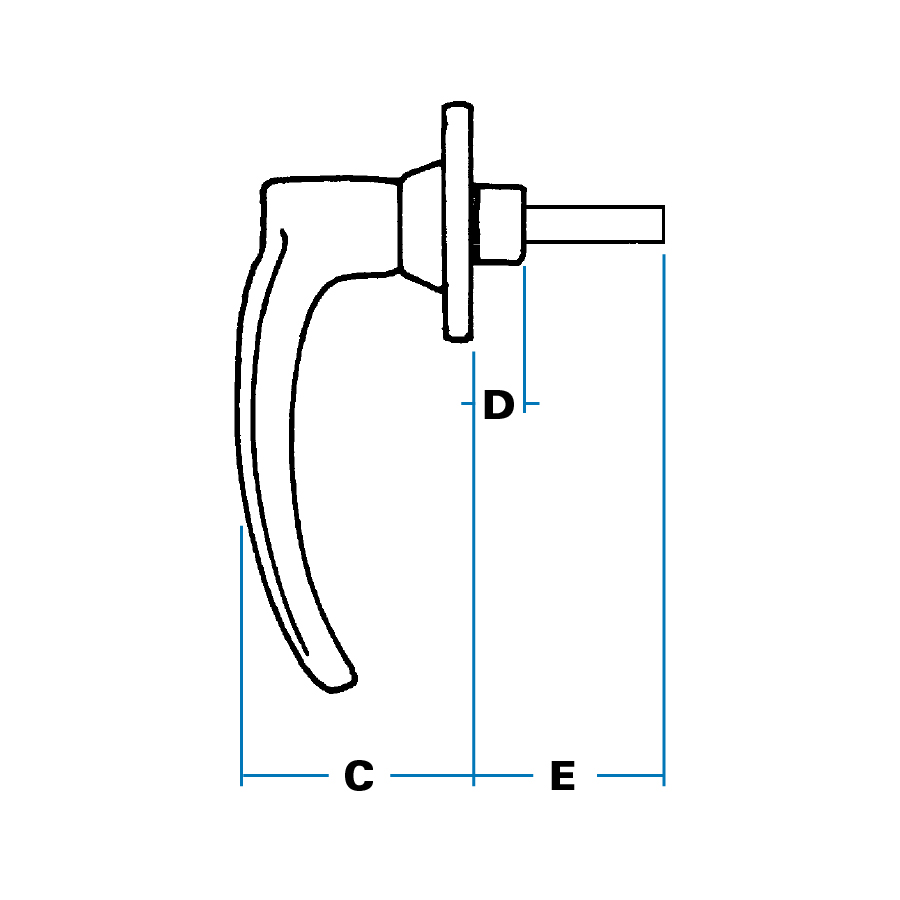

| A | Handle length | 130 mm |
| B | Mounting width | 32 mm |
| C | Face height | 56 mm |
| D | Depth of handle boss | 16 mm |
| E | Shaft length | 125 mm |
Fixing centres at 38mm & 44mm, standard

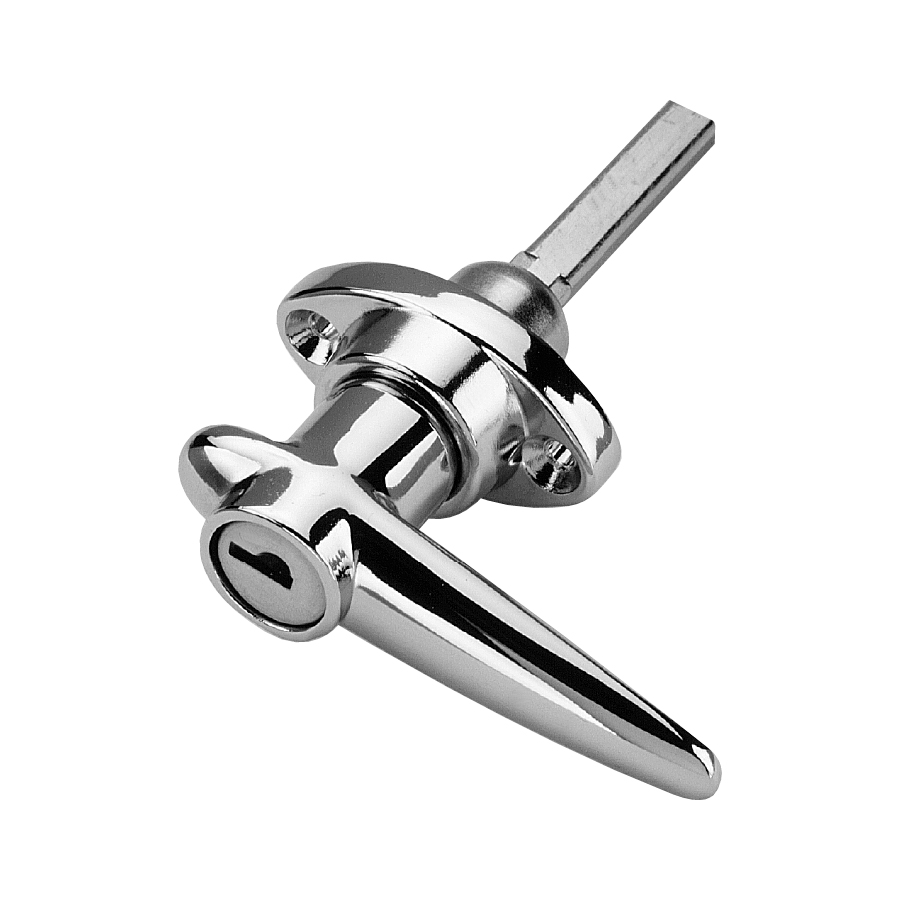

1/13700 ‘Small L’ Locking Handle
Ordering Code
| 1/13700 | ‘Small L’, locking, chrome(35mm) |
| 1/13700/01 | As above, FS880 |
Specification

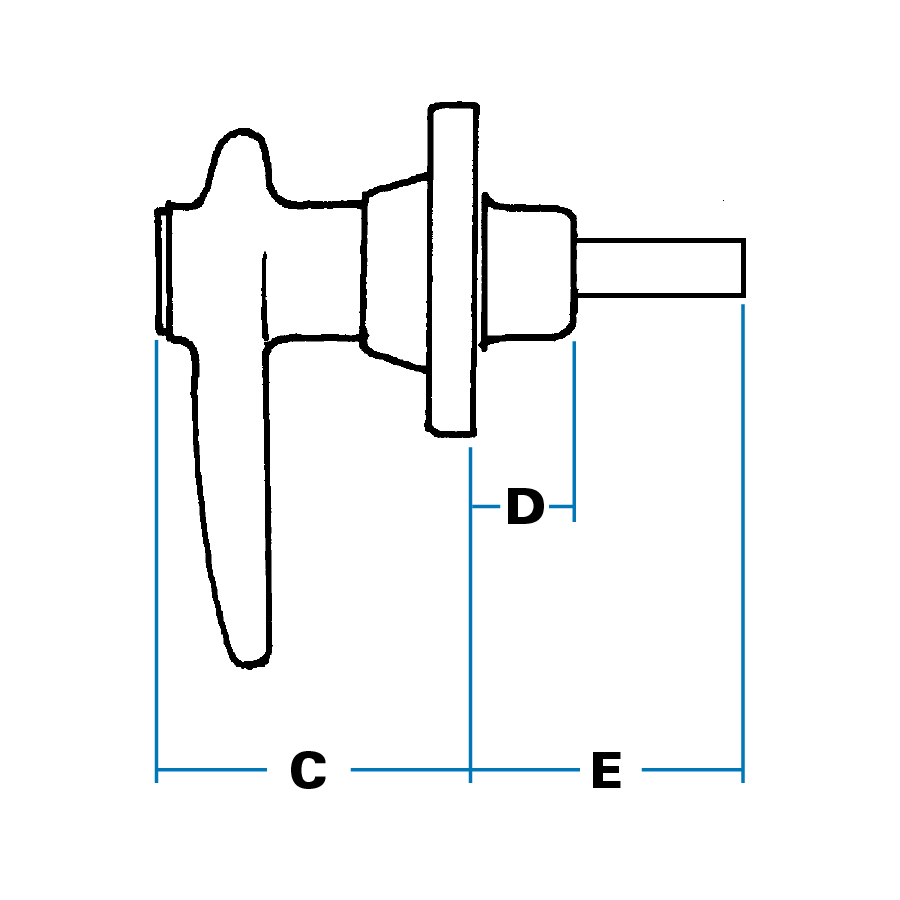

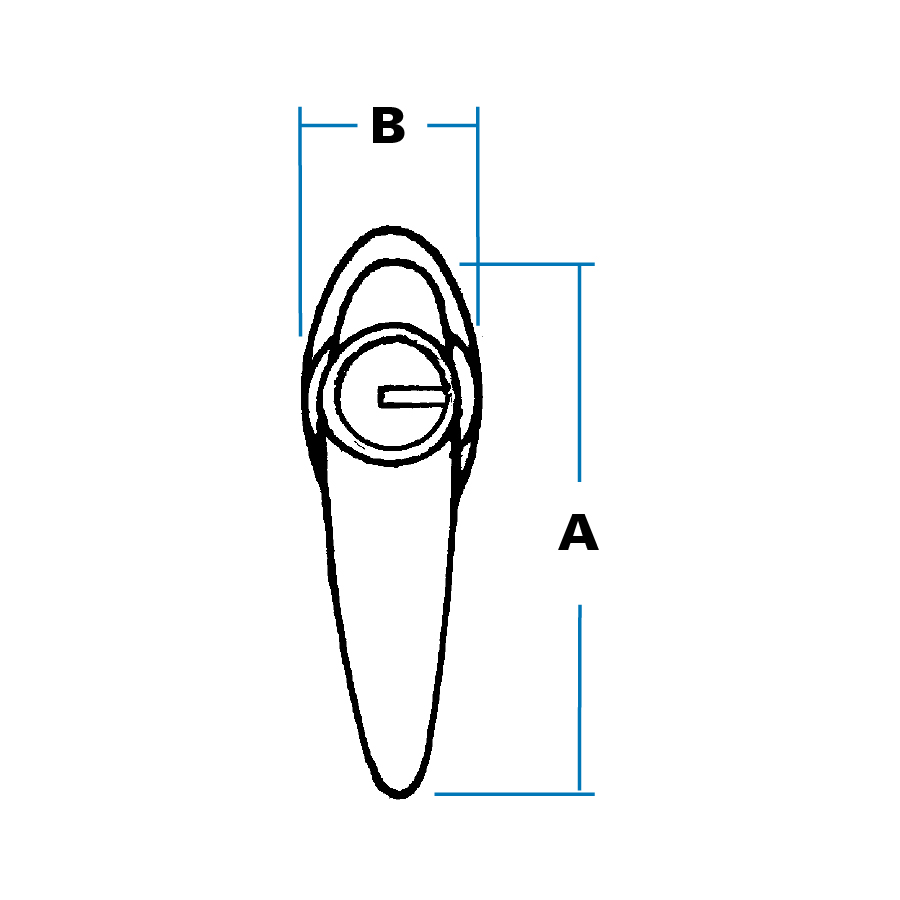

| A | Handle length | 74 mm |
| B | Mounting width | 30 mm |
| C | Face height | 43 mm |
| D | Depth of handle boss | 16 mm |
| E | Shaft length | 125 mm |
Fixing centres are 35mm (1.37 inch), standard
- Free rotation through 360°, locking at each 90° position.
- Fix through countersunk holes or with studs on concealed-fixing versions. Neoprene gaskets provided.

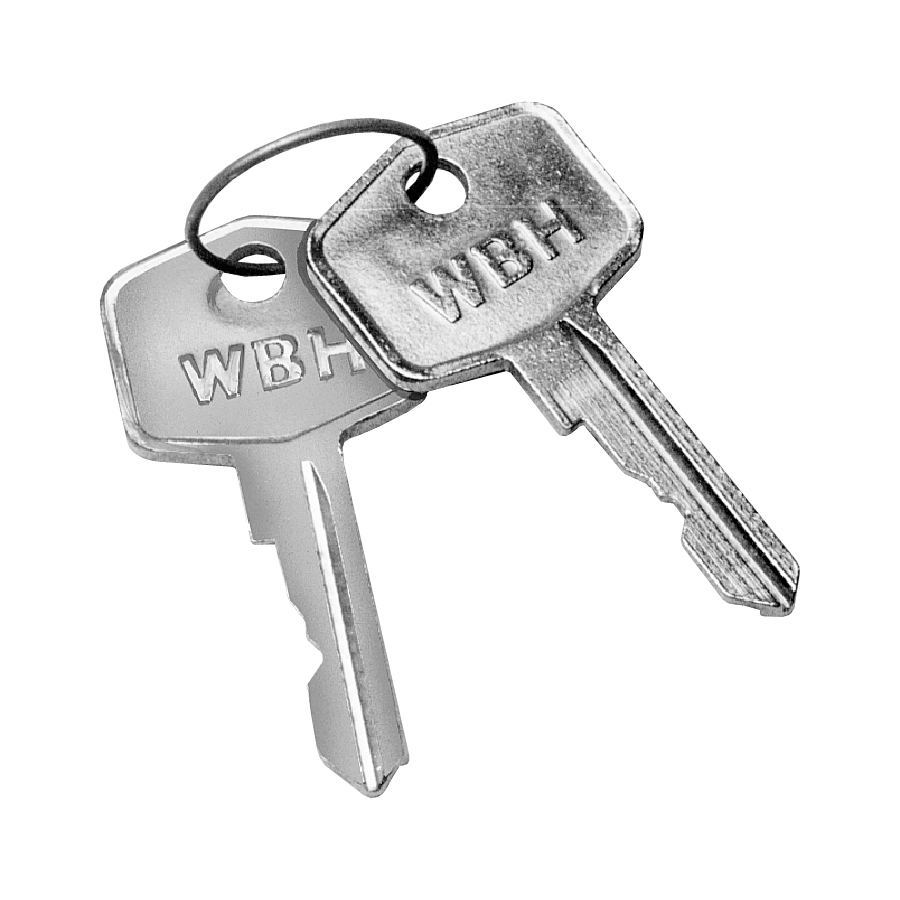

- FS’ keys only, with shuttered keyway.
- Chromium plated or black powder-coated.
-
- Shaft lengths
- Threaded shafts
- Special key numbers/sets
- ‘Customised’ keys
- Alternative mounting escutcheons
- Concealed fixing at 36mm & 40mm centres
