9/00144 Locking ‘Large T’ 38mm open fixing

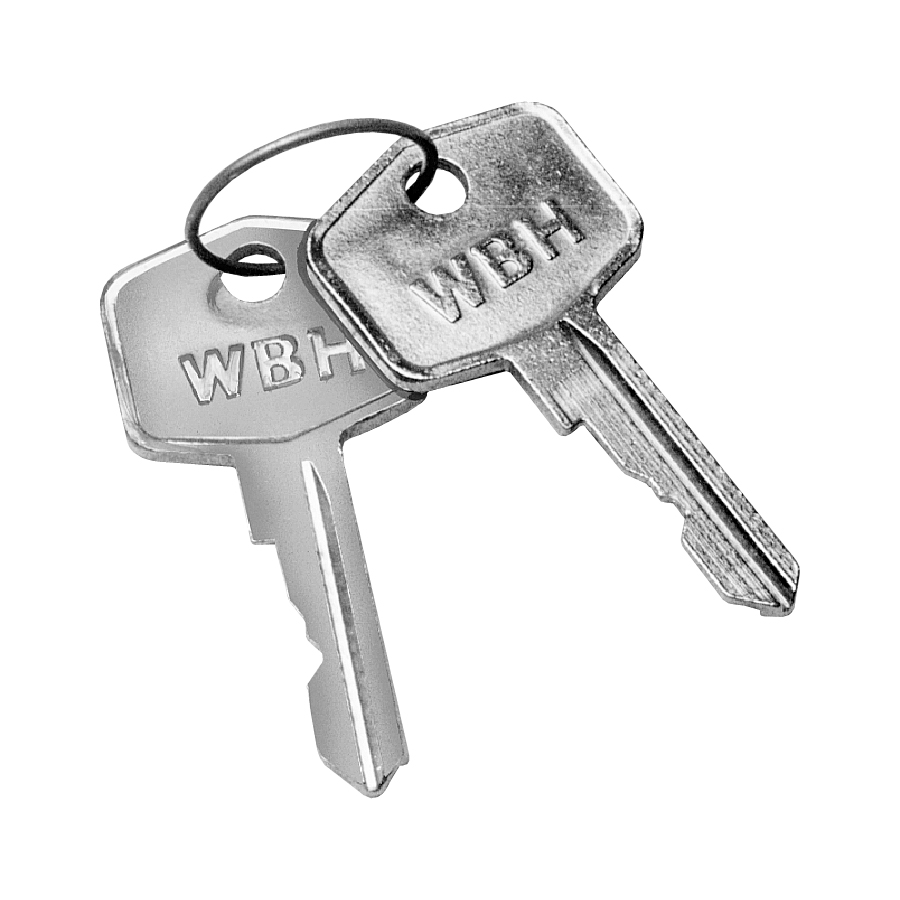

Single-sided ‘FS’ keys are standard
‘FT’ Keys Optional
Ordering Code
| With 38 mm open-fixing | |
| 9/00144 | Large ‘T’, locking, chrome |
| 9/00144/01 | As above, FS 880 |
| 9/00145 | Large ‘T’, non-locking, chrome |
| With 44 mm open-fixing | |
| 9/00244 | Large ‘T’, locking, chrome |
| 9/00244/01 | As above, FS 880 |

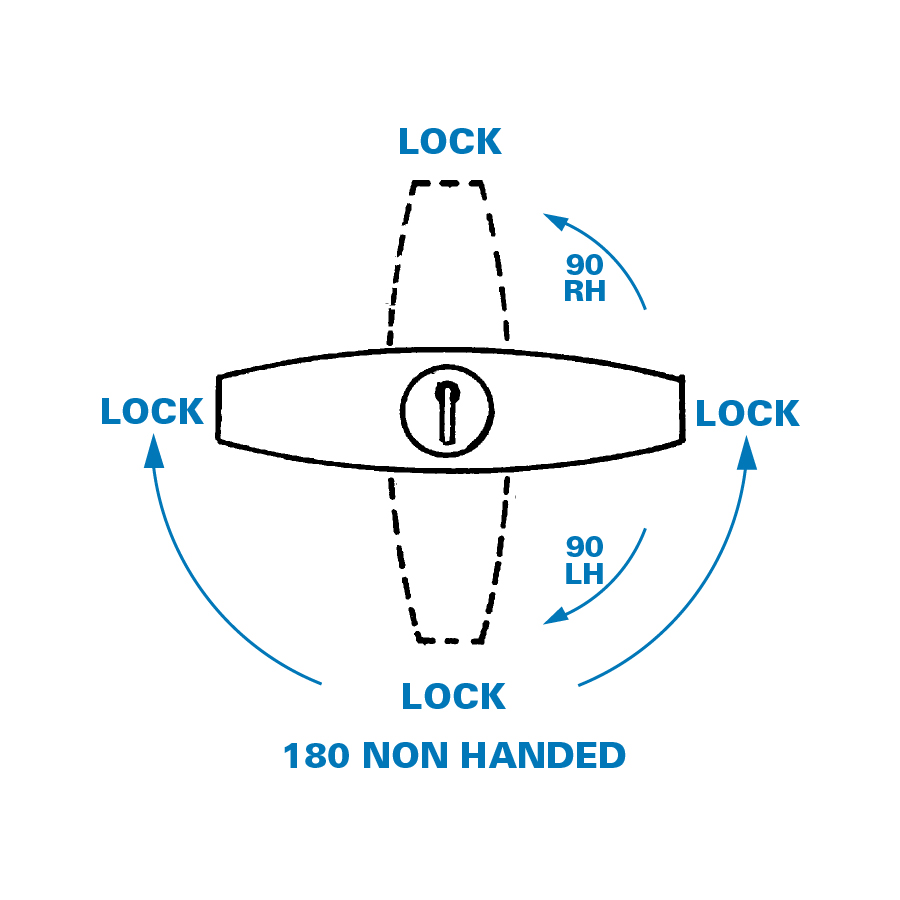

Handles operate through 180° as standard (non-handed). To special order, rotation can be limited to 90° LH (clockwise) or 90° RH (anticlockwise). Handles will lock at each 90°position.
Specification

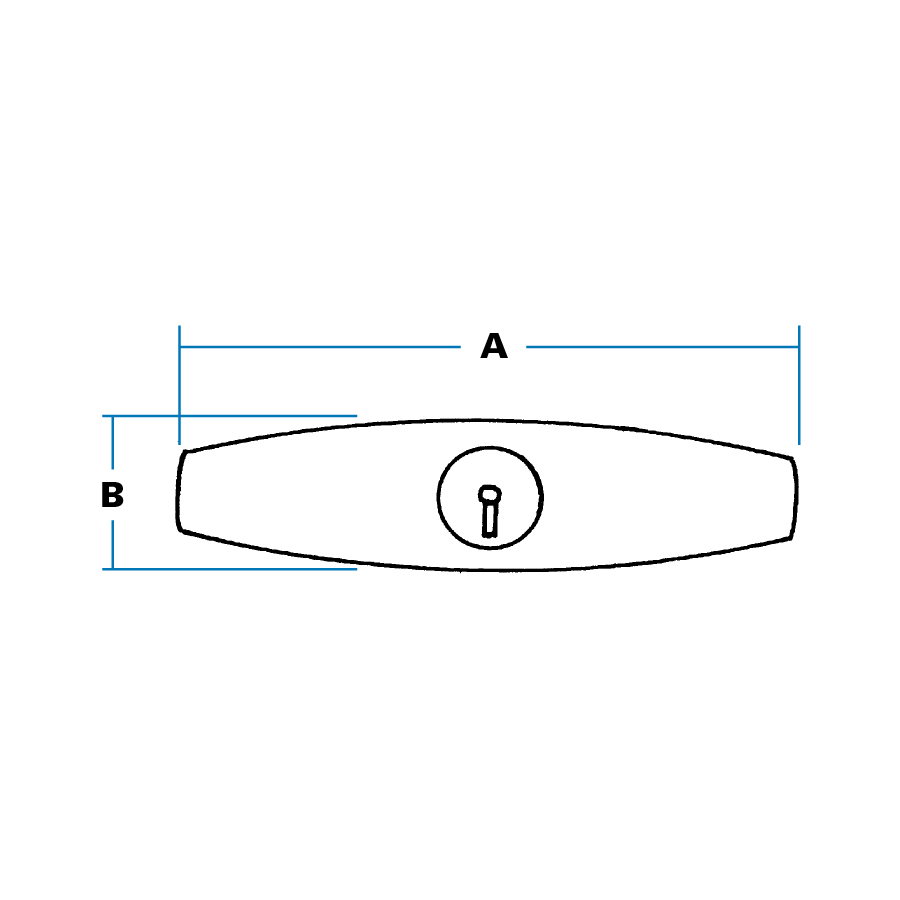

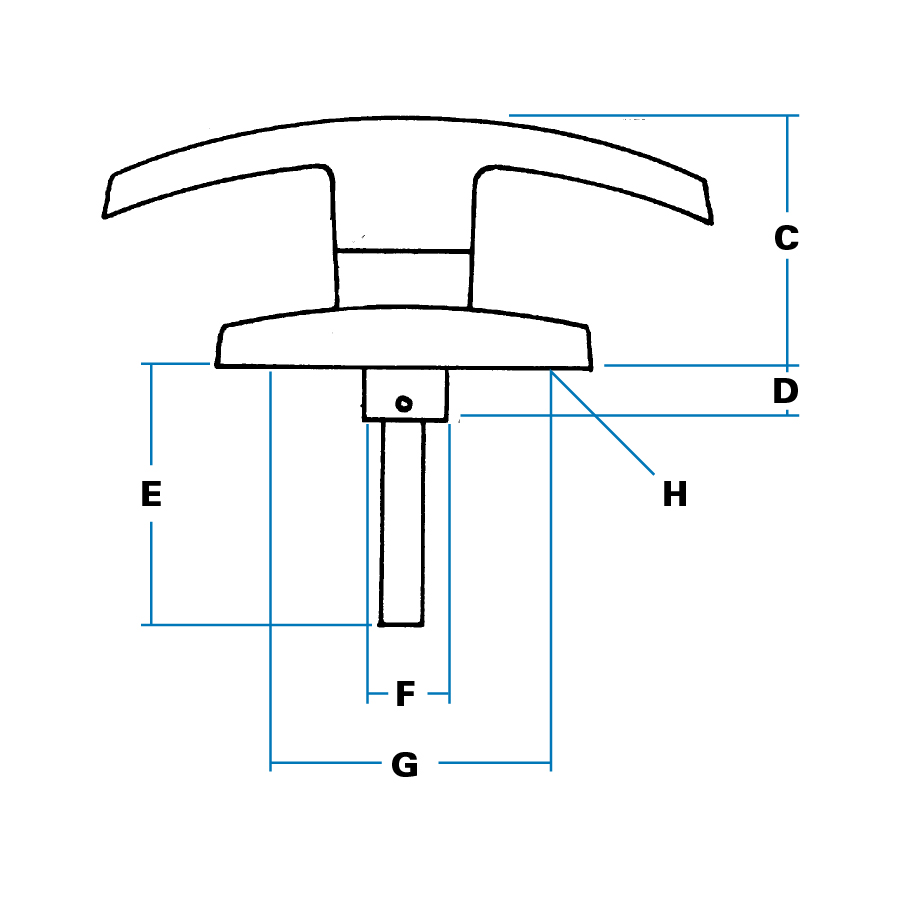

| A | Handle length | 100 mm |
| B | Mounting width | 33 mm |
| C | Face height | 42 mm |
| D | Depth of handle boss | 10 mm |
| E | Shaft length | 125 mm |
| F | Diameter of boss | 14 mm |
| G | Hole centres | 38/44 mm |
| H | Hole sizes (open) dia. | 5 mm, c/s 9 mm |
- 180° as standard, rotation can be limited to 90°, LH/RH, or 360° free-movement.
- Fix through countersunk holes, use screws provided (M4 x 8 mm) to secure from beneath. Neoprene gasket provided.
- ‘FS’ keys as standard with ‘shuttered’ keyway optionally ‘FT’ or ‘DLP’ key types.
- Chromium plated or black powder coated.
-
- Shaft lengths
- Threaded shafts (M10)
- Special key numbers/sets
- 90° LH/RH rotation
- Spring-return, LH/RH
