Diecast Cams & Heavy-Duty Latch Bars

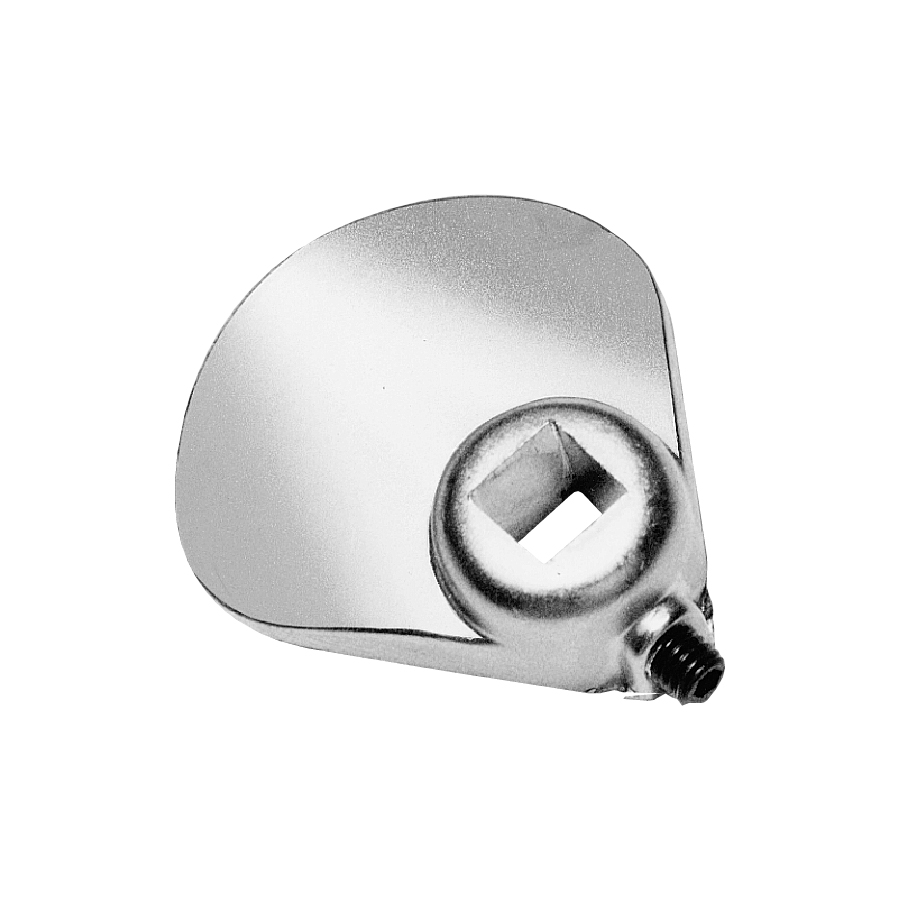

Our diecast cams provide the simplest way of securing an enclosure door. They fit onto a plain, 8 mm-square shaft, and are clamped into position with the integral socket screw. A version is available with hole threaded M8, to suit corresponding round shaft.

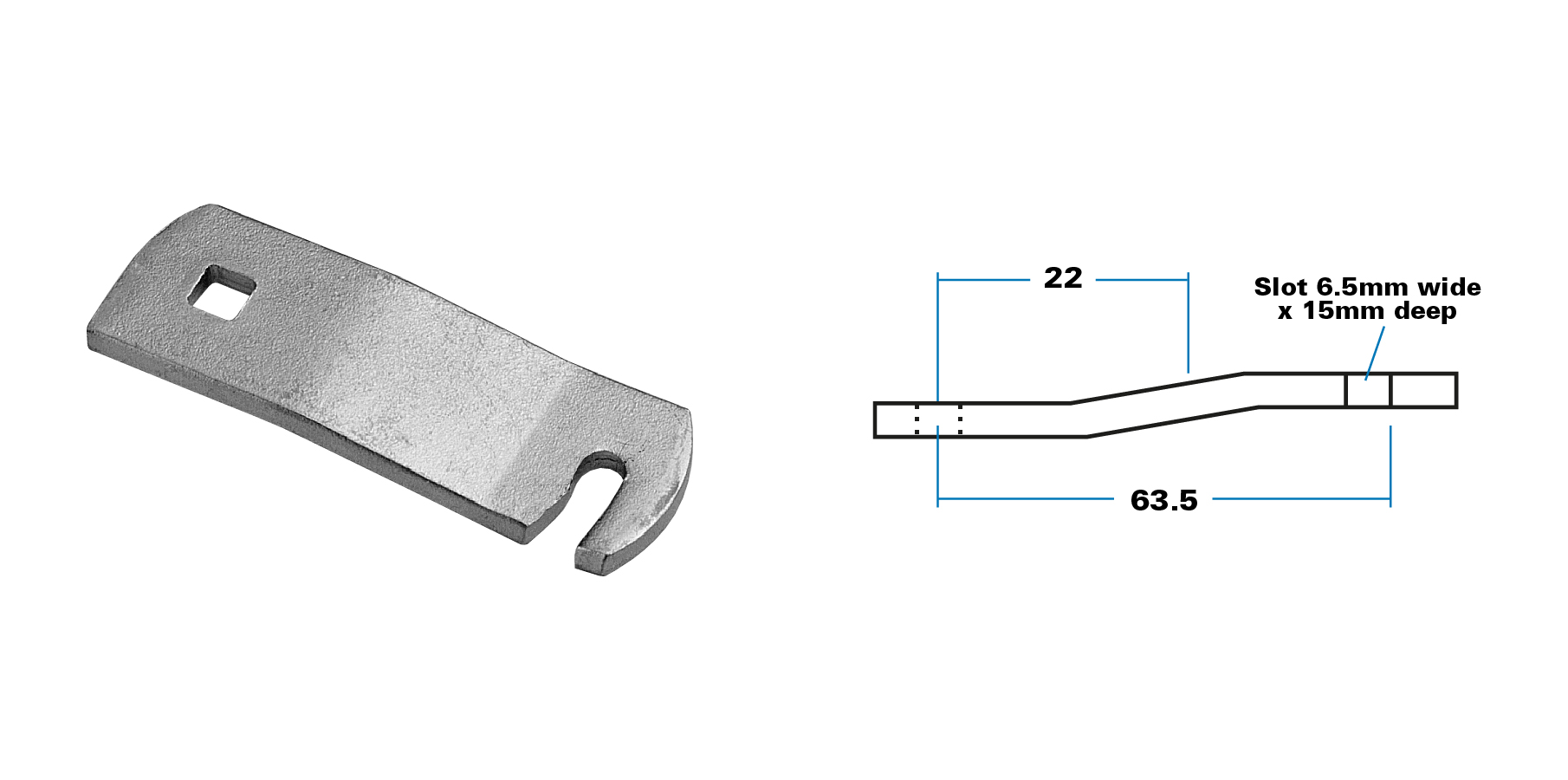

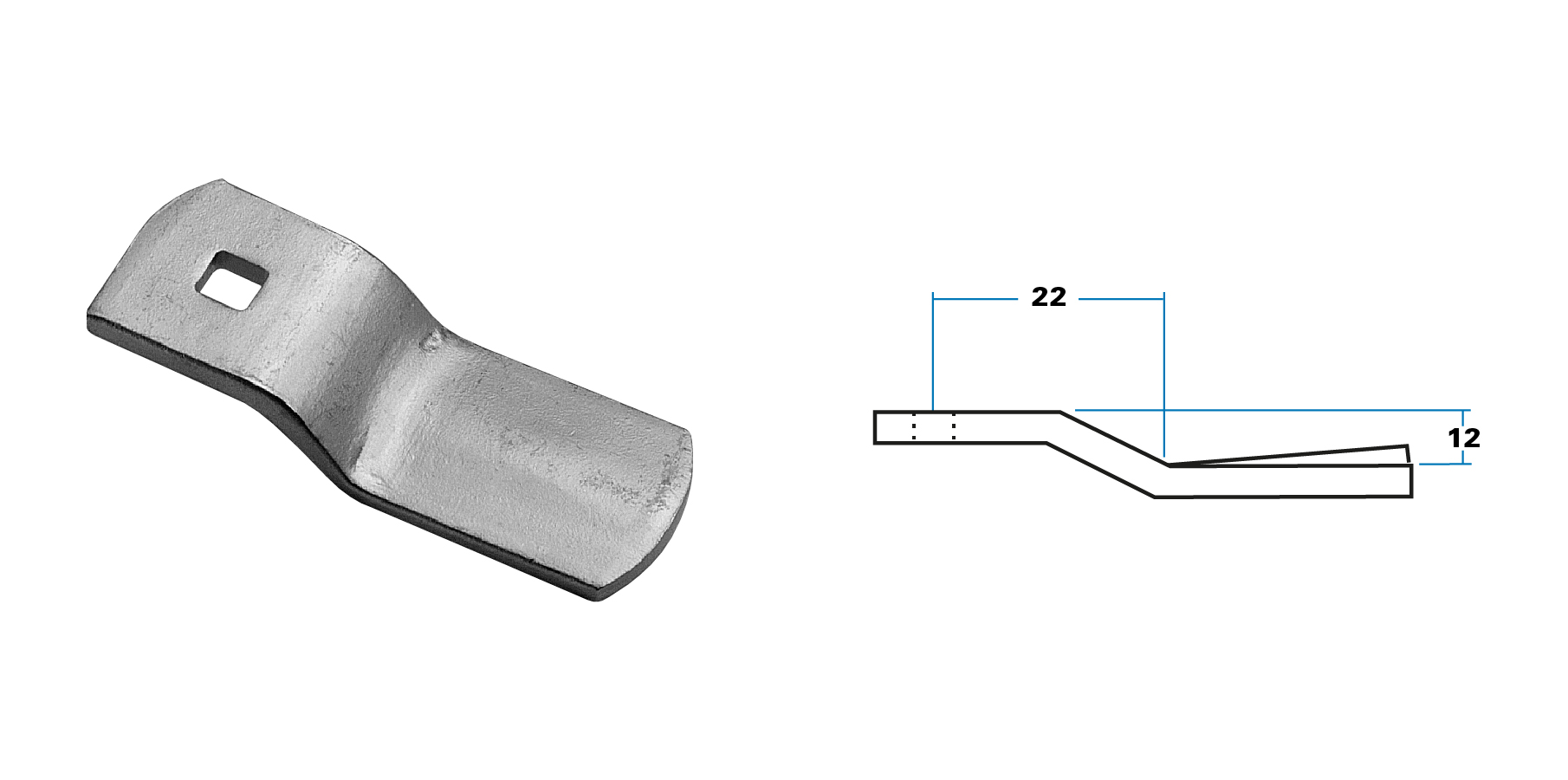

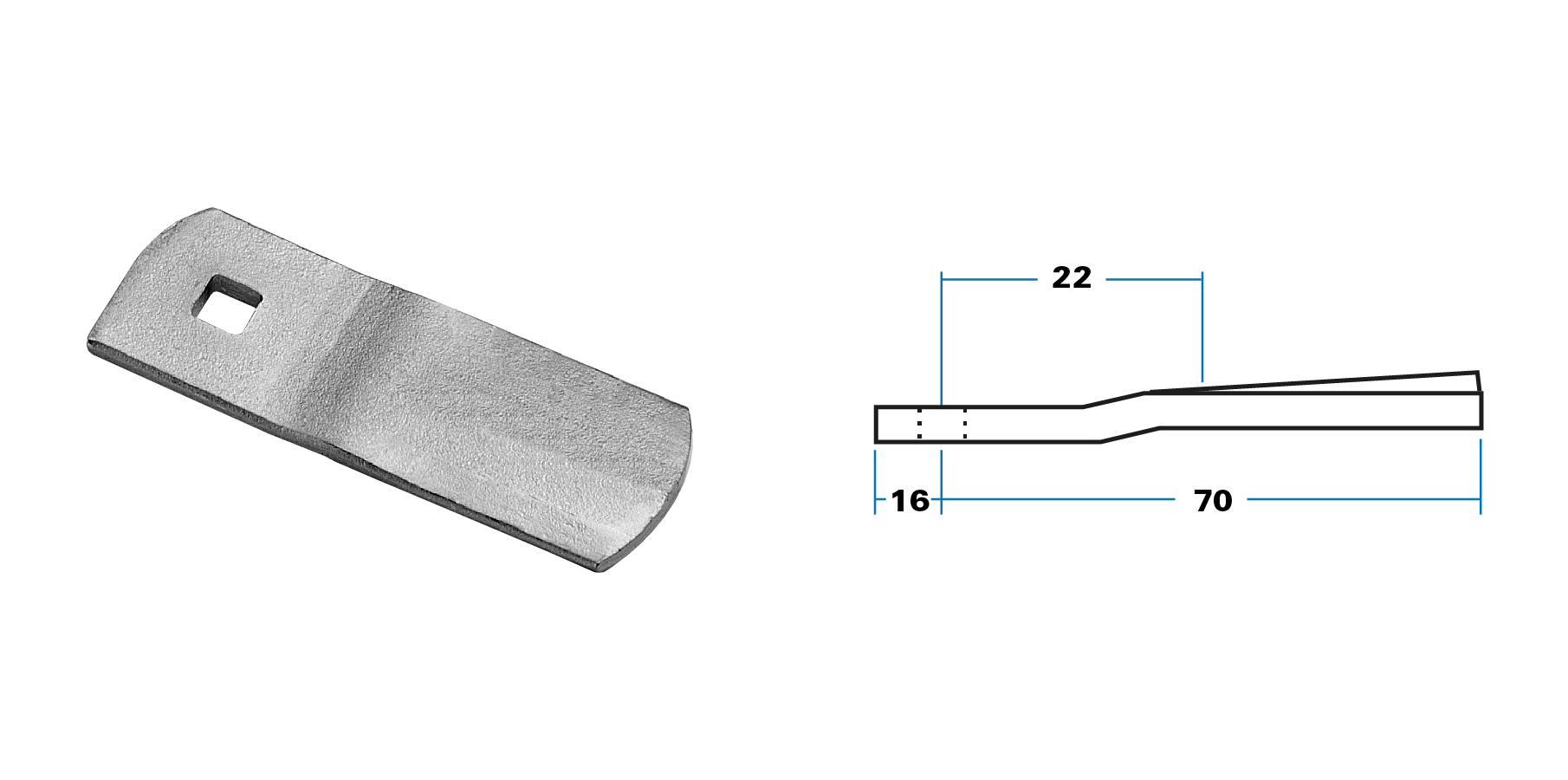

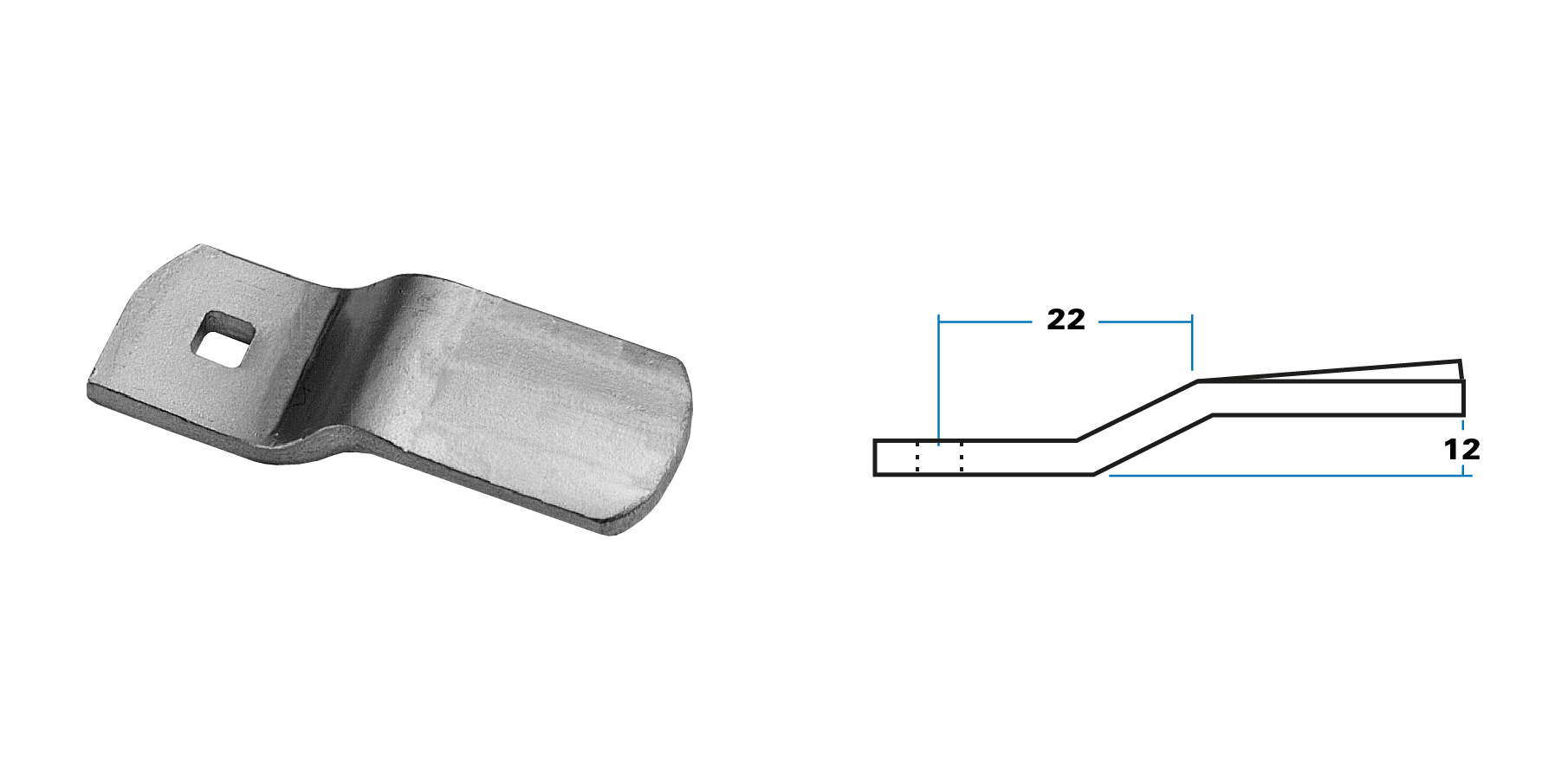

The range of heavy steel cams (below) is normally fitted to our ‘drop-T’ series, but they can be used with any 8 mm-square shaft, normally threaded M10 with securing nuts to allow for adjustment and retention. Finish is bright zinc-plated.

Ordering Code

1/27296	Small cam, 8 mm square hole
9/00837	Large cam, 8 mm square hole

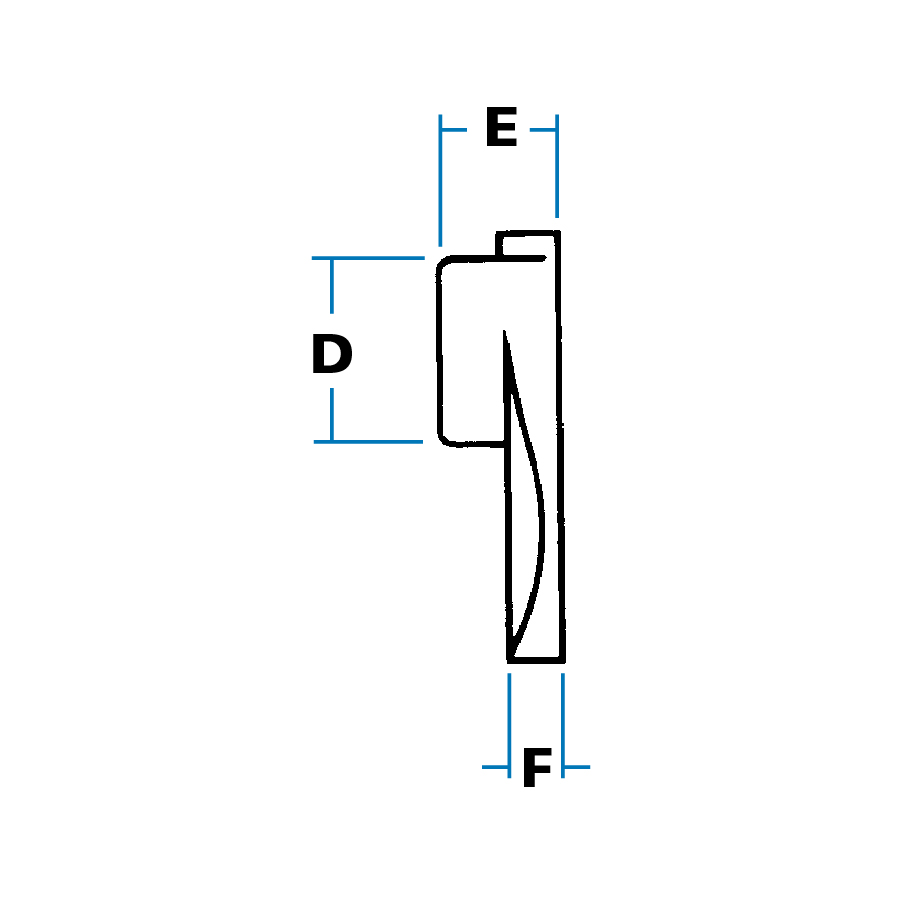

Specification

A	Length (small cam)	32 mm
A1	Length (large cam)	63 mm
B	Width	40 mm
C	Location	11 mm
D	Diameter	19 mm
E	Height	13 mm
F	Cam-form	4 mm

All cams are fitted with hexagon-head grubscrew, adjusted by 3/32” Allen key (threaded10/32 UNF x 3/8”)

Heavy-duty Latch Bars

Heavy-duty latch bars, made in rolled-edge mild steel, 30 mm width x 5 mm deep, with 3 mm ‘V’ raise for cam-action.
