9/01914SS - Recess-mounted handle, stainless steel
Ordering Code
| 9/01914SS | Recess handle, stainless steel |

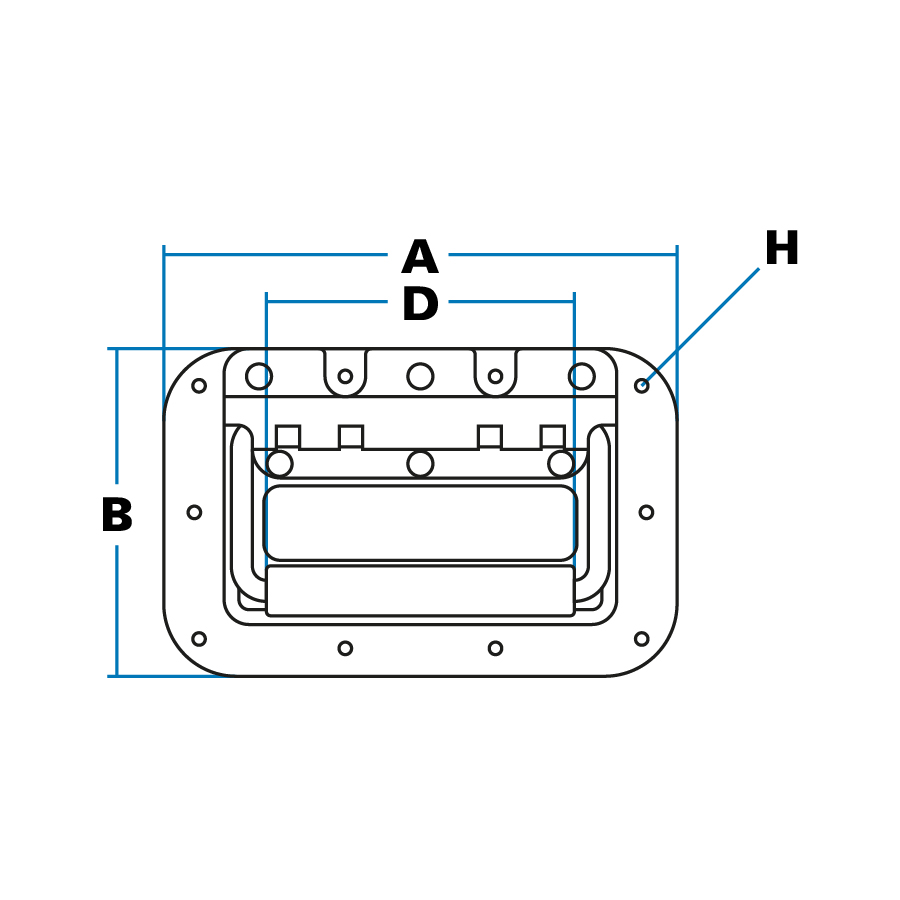

Specification
| A | Plate Length | 160 mm |
| B | Pan Width | 107 mm |

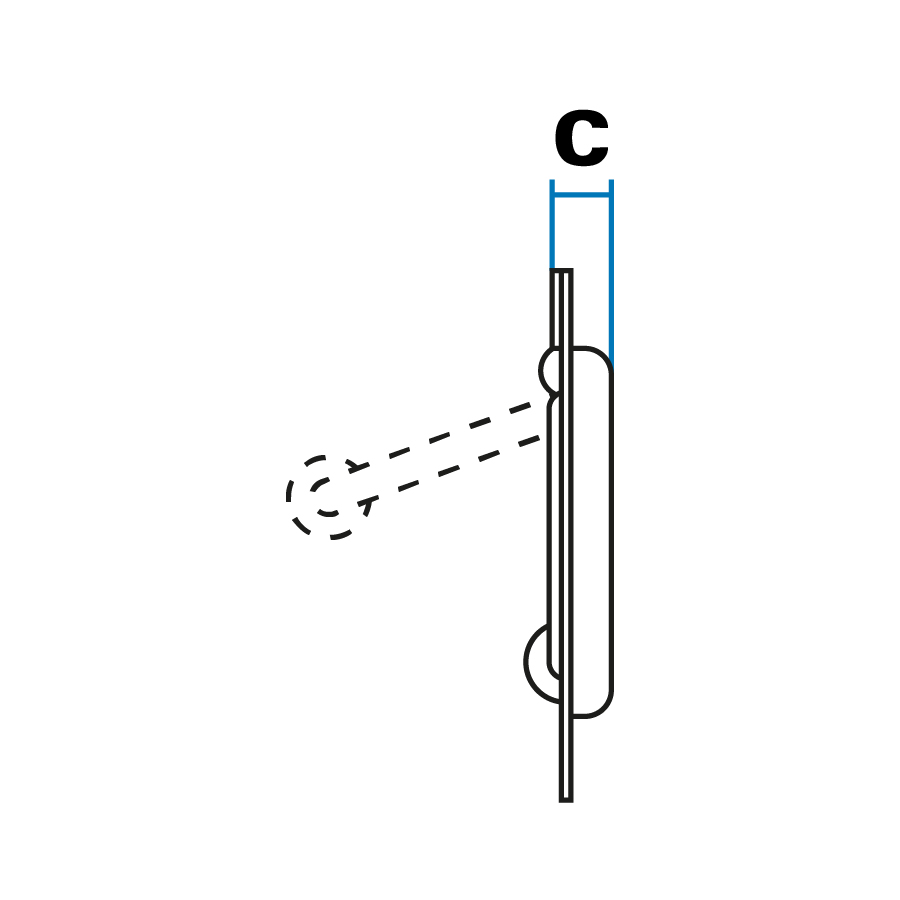

| C | Pan Depth | 6 mm |
| D | Grip Length | 110 mm |
| E | Grip Diameter | 12 mm |
| H | Hole sizes (dia.) | 6 mm |
Angle of opening 85°. Consult engineering drawing for position of (10) fixing holes. Panel cut-out dimensions 75mm x 127mm.
