9/01389/01 - Grab Handle
Ordering Code
| 9/01389/01 | Flush-fit grab handle - black |
Specification
| A | Length | 230 mm |
| B | Width | 170 mm |
| C | Depth | 30 mm |
| D | Strap width | 22 mm |
| E | Hole centres | 203 mm |
| F | Hole centres | 153 mm |
| H | Hole sizes (diameter) | 5 mm, 10 mm recess |

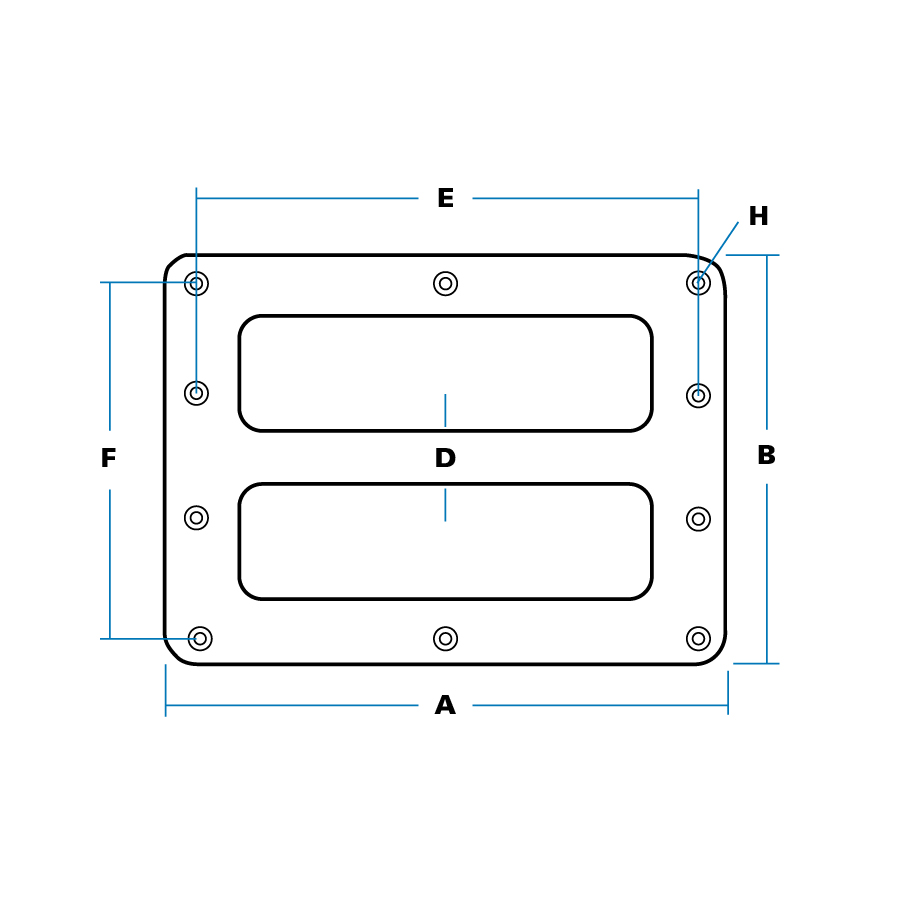

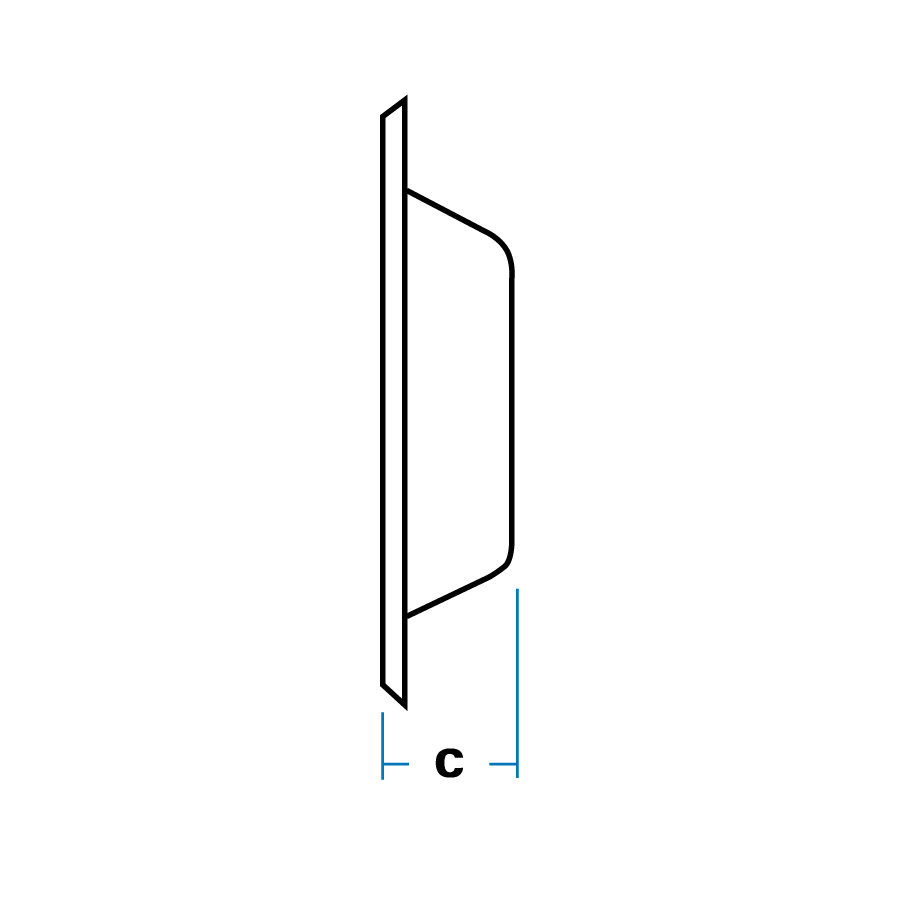

Consult engineering drawing for details of hole positions. Frame in 2 mm galvanised steel.
- Galvanised steel frame with resilient moulded covering for user-friendly feel.
- Smooth, semi-gloss finish. Standard colour is black.
- Fixing through recessed holes in rim, use stainless steel or plated screws/rivets to avoid corrosion stains.
-
LOAD TESTING:
Rig testing parallel to fixings achieved loads of over 6.00KN (610Kg) before significant distortion. We recommend a Safe Working Load of 200Kg (440lb).
THERMAL TESTING:
Cycled between +15°C & -30°C without embrittlement. Does not soften below +70°C.
