9/01390 - Grab Handle
Ordering Code
| 9/01390 | Recess grab handle, moulded |
| 9/01391 | Recess grab handle, diecast |
Specification

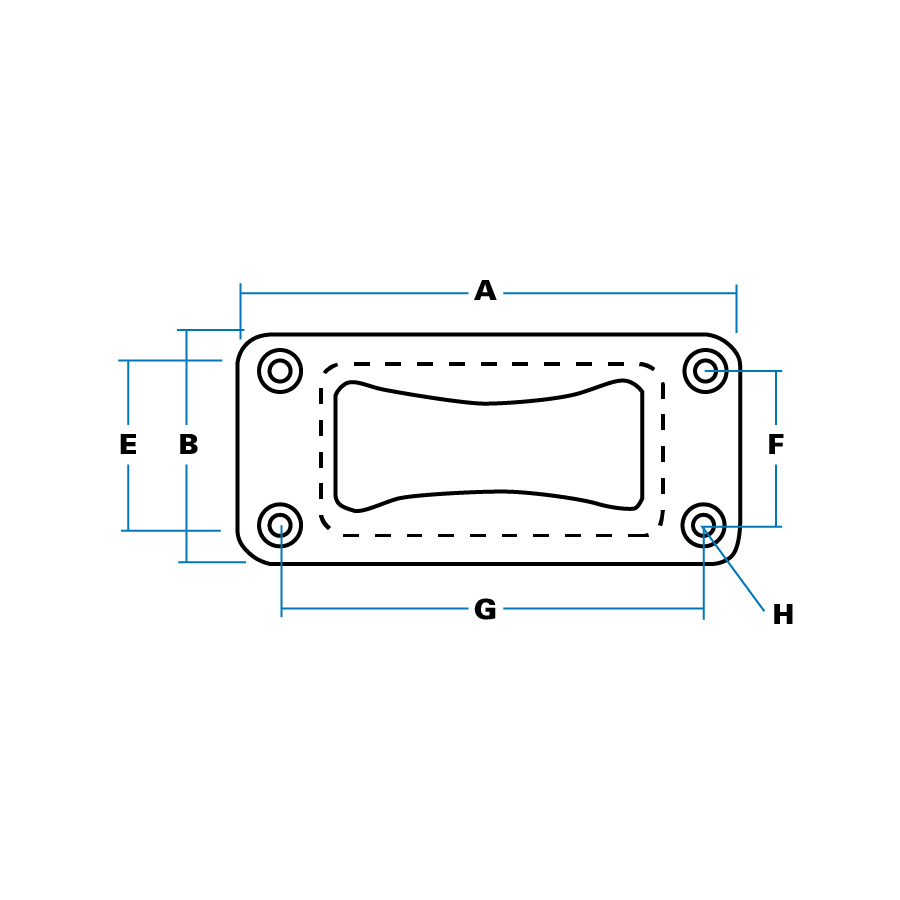

| A | Length (outer) | 133 mm |
| B | Width (outer) | 60 mm |

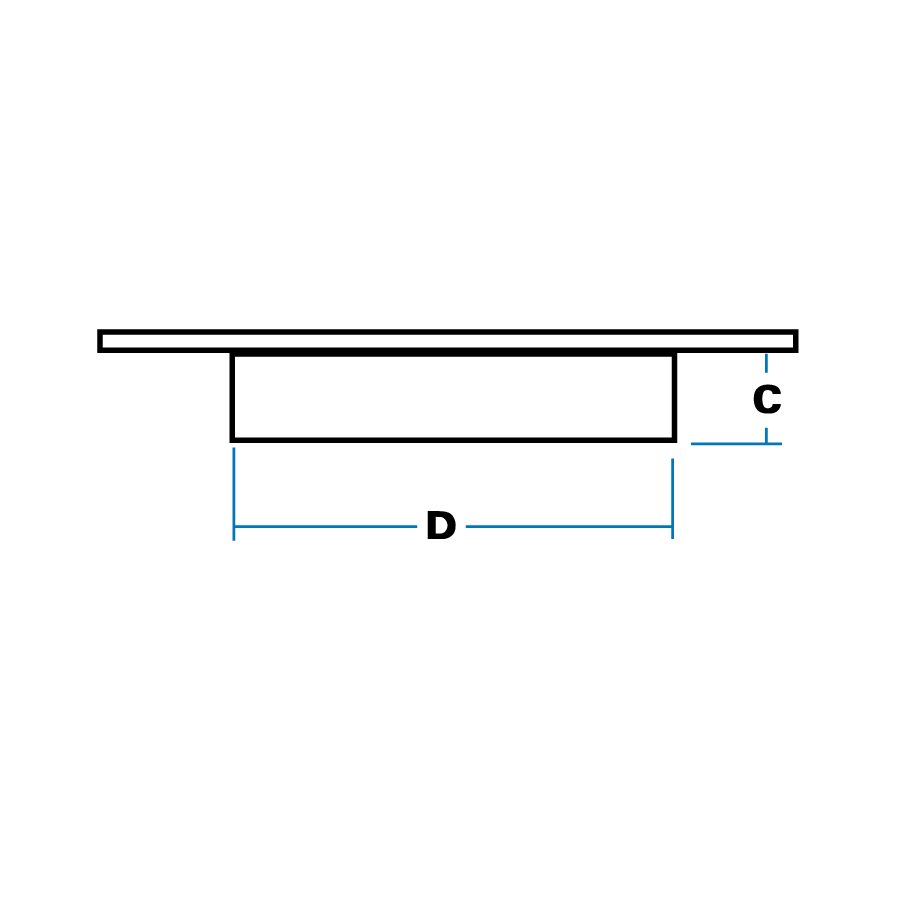

| C | Depth | 21 mm |
| D | Length (inner) | 95 mm |
| E | Width (inner) | 45 mm |
| F | Hole centres | 41 mm |
| G | Hole centres | 114 mm |
| H | Hole sizes (diameter) | 6 mm, c/s 10 mm |
Note: Because of construction detail, there are projections on dimension ‘D’ to 115 mm on diecast model.
- Fix through countersunk holes in top plate.
- Diecast handle is black powder-coated, moulded handle has textured finish.
- Diecast in zinc alloy, or moulded in glass-filled nylon with top and bottom plates ultrasonically welded together.
