9/01851
9/01855
Ordering Code
| 9/01850 | Ventilator only, black |
| 9/01851 | Ventilator only, white |

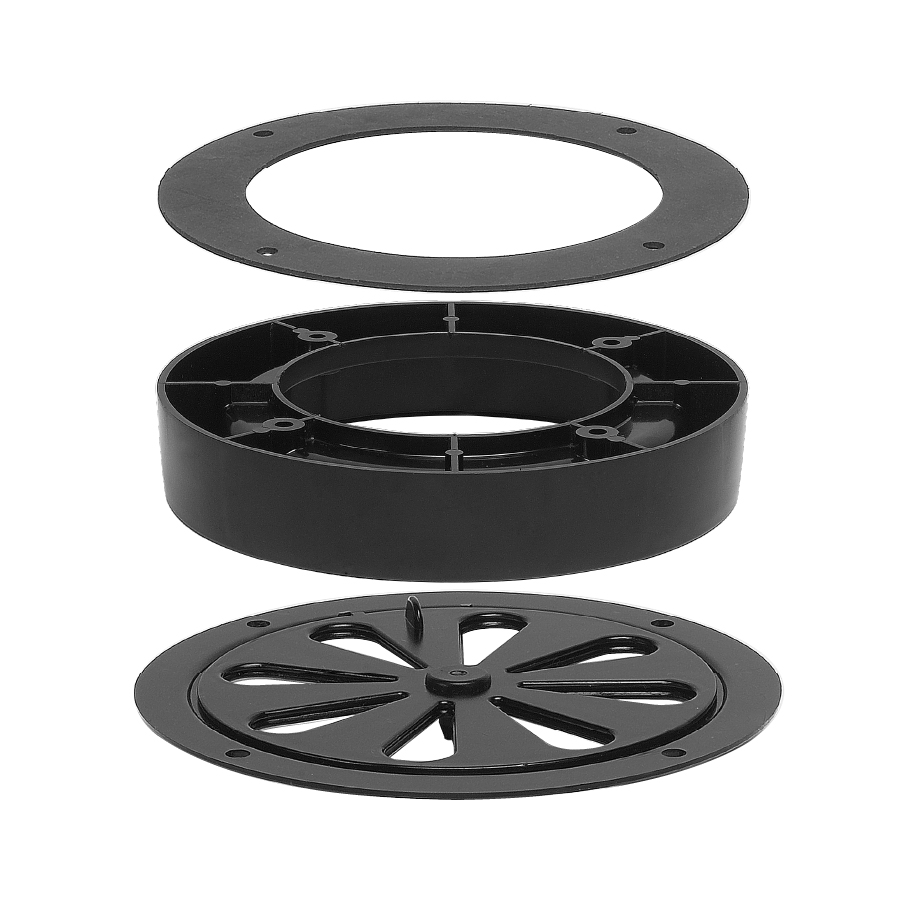

| 9/01855 | Adaptor & grille, black |
Installation Instructions
Remove moulded top cap, unscrew locknut and seperate scoop from base. This can now be attached to outside roof around pre-cut 96mm diameter hole in panel, using four screws provided. On inside, fit adaptor ring to screws and secure with nuts. Re-assemble scoop and tighten centre locknut. Inside grille fits onto adaptor and is secured with clips provided.
Air-Extraction
| Vehicle speed | Volume | ||
| MPH | KPH | Cu. ft/min | Cu.M/min |
| 20 | 12 | 0.75 | 26 |
| 40 | 25 | 1.72 | 61 |
| 60 | 38 | 2.55 | 90 |
| 80 | 50 | 3.45 | 122 |
| 100 | 62 | 4.27 | 151 |
| 120 | 75 | 4.70 | 167 |
| 140 | 87 | 5.10 | 180 |

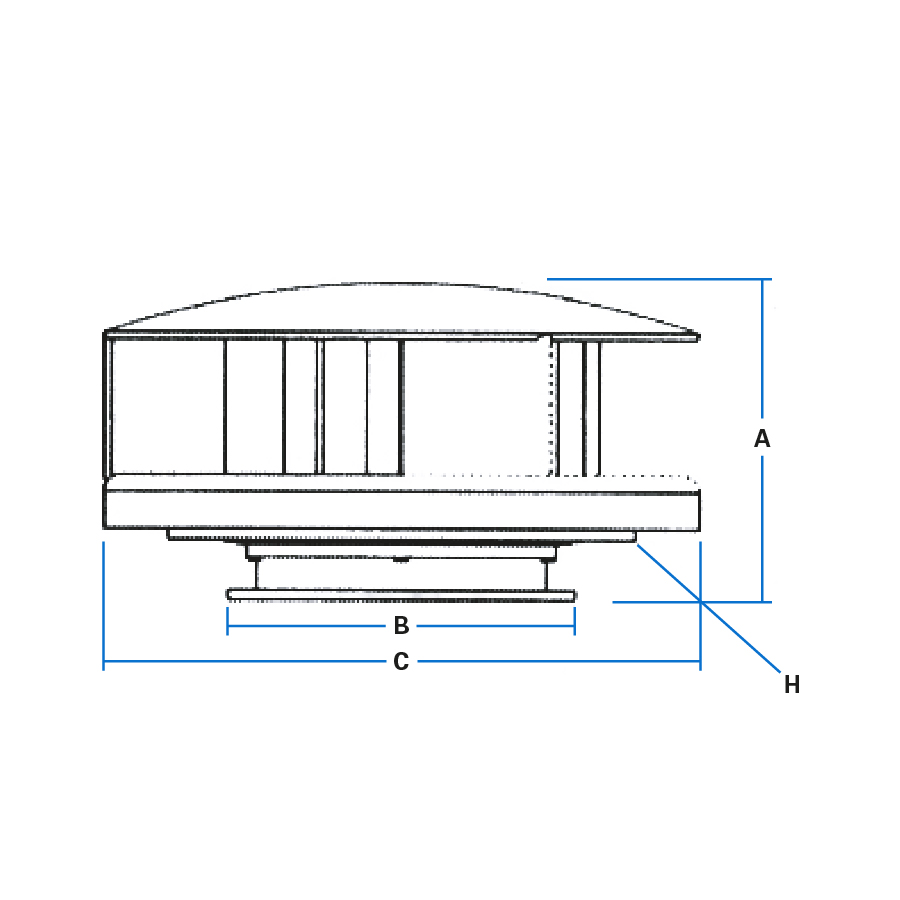

Specification
| A | Height (maxium) | 120 mm |
| B | Base diameter | 140 mm |
| C | Scoop diameter | 240 mm |
| D | Grille outer diameter | 160 mm |
| E | Depth of adaptor/grille | 30 mm |
| F | Hole centres (across base) | 124 mm |
| F | Hole sizes (dia) | 5 mm, c/s 8 mm |
Weight of unit - 660 grams (1.5lb)
- Construction prevents entry of rain, dust, and down-draughts. Air-scoop revolves on two steel bearings and will catch breeze even in stationary (exterior) locations. Quiet in operation with excellent rate of air-movement.
- Rotary scoop drives extraction fan, sucking air from inside vehicle compartment.
- Ventilator in black or white self-colour, adaptor & grille in black only.
- Four stainless screws/nuts provided & clips for inside grille.
- Black self-colour moulded ventilator as standard (white & grey as options). White base, and white moulded grille.
- Moulded in ABS with two steel bearings and stainless steel centre-shift.
